All stock codes associated to this product
MDP2DVIMM10B, 2465238, 0065030851534
| Features |
|---|
| DisplayPort version | 1.2 |
| Converter type | Passive |
| Chipset | NXP - 3361 |
| Cable length | 3 m |
| Connector 1 | mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Other features |
|---|
| Width | 38 mm |
| Height | 15 mm |
| Depth | 3000 mm |
| Weight & dimensions |
|---|
| Weight | 140 g |
| Package width | 160 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 162 g |
| Width | 38 mm |
| Height | 15 mm |
| Depth | 3000 mm |
| Packaging data |
|---|
| Package width | 160 mm |
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 162 g |
| Quantity per pack | 1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS, CE |
| Packaging content |
|---|
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 100 pc(s) |
| Harmonized System (HS) code | 84733080 |

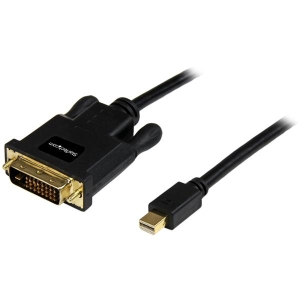

Connect a DVI display to a Mini DisplayPort-equipped PC or MAC ® over a longer 10 foot distance — Black
The MDP2DVIMM10B Mini DisplayPort ® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook ® or Microsoft ® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel ® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
