AXIS TU8004 Midspan, 90W, 57V, PoE

IMG 1 of 1
Our Price:
$409.20
or quickly purchase this product
Backorder
Part Number:
549147
(?) Brand:
AXIS
Manuf No:
02783-001
02783001
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
02783-001, 02783001, 7331021085367

Axis TU8004 Midspan

Manufacturer: Axis
Category: Home
Sub-Category: Security Camera Accessories
SKU: 02783-001
EAN: 7331021085367

Description

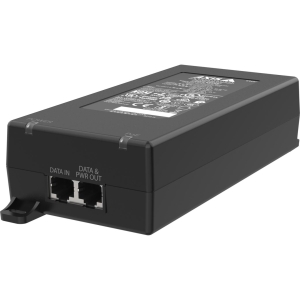

AXIS TU8004 90 W Midspan

AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.


Specifications

Features
Housing materialPlastic
Brand compatibilityAxis
TypeMidspan
Product colourBlack
CertificationIS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Networking standardsIEEE 802.3af, IEEE 802.3bt
Number of inputs1 inputs
Number of outputs1 outputs
Ports & interfaces
Number of inputs1 inputs
Number of outputs1 outputs
Connectivity technologyWired
Ethernet LANYes
Ethernet LAN data rates10,100,1000,2500,5000 Mbit/s
Power
Output voltage57 V
Input voltage100 - 240 V
Rated power90 W
Input frequency50/60 Hz
Power consumption (typical)64.3 W
Power consumption (max)91.7 W
Power source typePoE
Technical details
TypeMidspan
Doesn't containHalogen, PVC
Weight & dimensions
Width80 mm
Weight500 g
Height44 mm
Depth166 mm
Colour
Product colourBlack
Packaging content
Quick installation guideYes
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)-20 - 65 °C
Certificates
CertificationIS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
