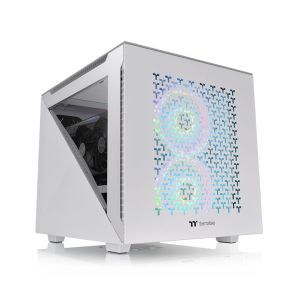

Thermaltake Divider 200 Air Tempered Glass Micro Case Snow Edition
The Divider 200 TG Air Snow is a Micro-ATX case that comes with one preinstalled 200mm front fan, one 120mm standard rear fan, two durable 3mm tempered glass windows on the top and left side.

Thermaltake

Divider 200 TG Air Snow

Showcase Your System in a Particular Way

Divider 200 TG Air Snow Micro-ATX Chassis

Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The Divider 200 TG Air Snow is a Micro-ATX case to the Divider Series. Just like the other models, the most exceptional feature of the Divider 200 TG Air Snow is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing components inside. Additionally, the Divider 200 TG Air Snow comes with one preinstalled 200mm front fan and one 120mm standard rear fan to ensure outstanding cooling performance. Lastly, the Divider 200 TG Air Snow has a chamber design with a flat motherboard tray that lets a user better doing cable management, while showing off hardware at the top. The Divider 200 TG Air Snow Micro Case is the next-gen gaming PC case for users, enthusiasts, and gamers who are craving a micro case, giving them unprecedented satisfaction.

* The image is for reference only.
TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed TT Premium with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltakes desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Symmetrical Triangular Side Panels Design with Tempered Glass Windows

The exceptional feature of the Divider 200 TG Air Snow is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on a users preference when building a PC. All of them are tool-free and easy to remove. Divider 200 TG Air Snow comes with two sturdy 3mm tempered glass windows on the top and at the right, showcasing components inside the system. Tempered glass windows are thicker and more scratch-resistant compared to standard acrylic.

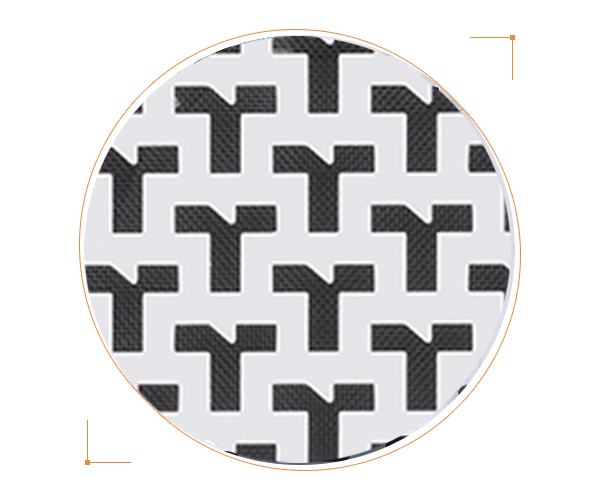

An Airflow-Optimized Panel

The Divider 200 TG Air Snow comes with one large airflow-optimized mesh panel at the front for massive airflow performance.

  • The image is for reference only.
Excellent Dust Filtration

The Divider 200 TG Air Snow has well-designed removal magnetic fan filters on the right side and inner bottom. At the front and bottom, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.

* The image is for reference only.
Air Intake and Exhaust

The cooling performance of the Divider 200 TG Air Snow is excellent. The front mesh panel, air vents on the two sides of the front mesh panel and top tempered glass, and the vent between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the right side, the two triangular steel panels are designed with a large venting mechanism for air intake or exhaust depends on the users overall PC layout design.

* The image is for reference only.
Idle and Full-load Temperature

To let our customers better understand the thermal performance of the Divider 200 TG Air Snow Micro ATX Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Specification

MotherboardASUS ROG MAXIMUS XI GENE
CPUIntel Core i5-9600K (TDP 95W)
GPUMSI GeForce RTX 3090 VENTUS 3X 24G OC
RAMFloe RC240 CPU &Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G)
PSUToughpower GF2 ARGB 650W
CPU CoolerFloe RC240 CPU &Memory AIO Liquid Cooler
FansPure ARGB 120mm fans up to 4 (Front x 3, Rear x 1)
SoftwareAIDA64 Extreme Portable, FurMark ASUS ROG Edition
Full load30 min
CamaraTesto 885-2 Thermal Imaging Camera

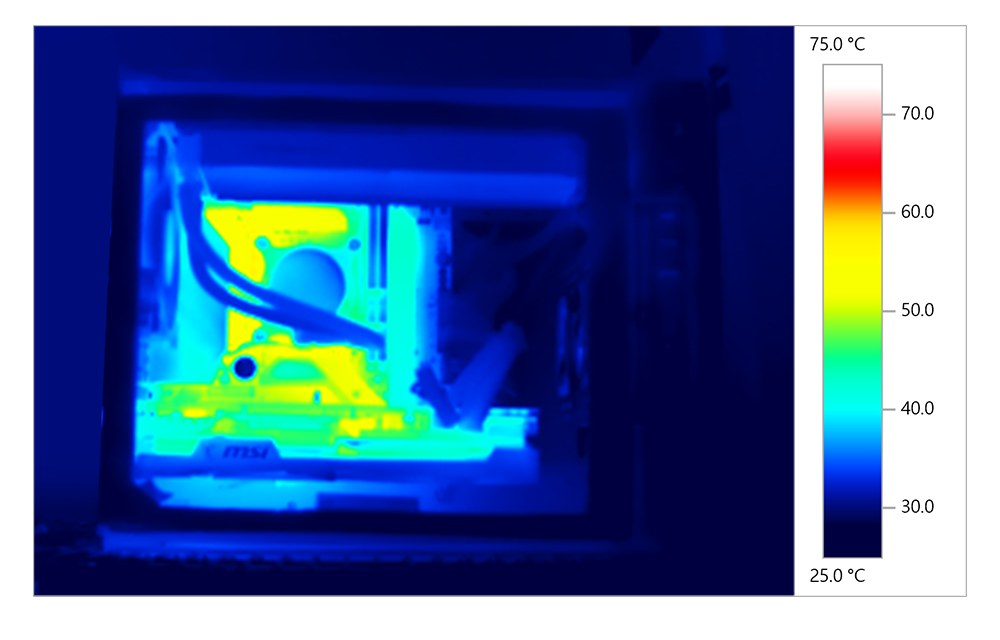

  • Idle

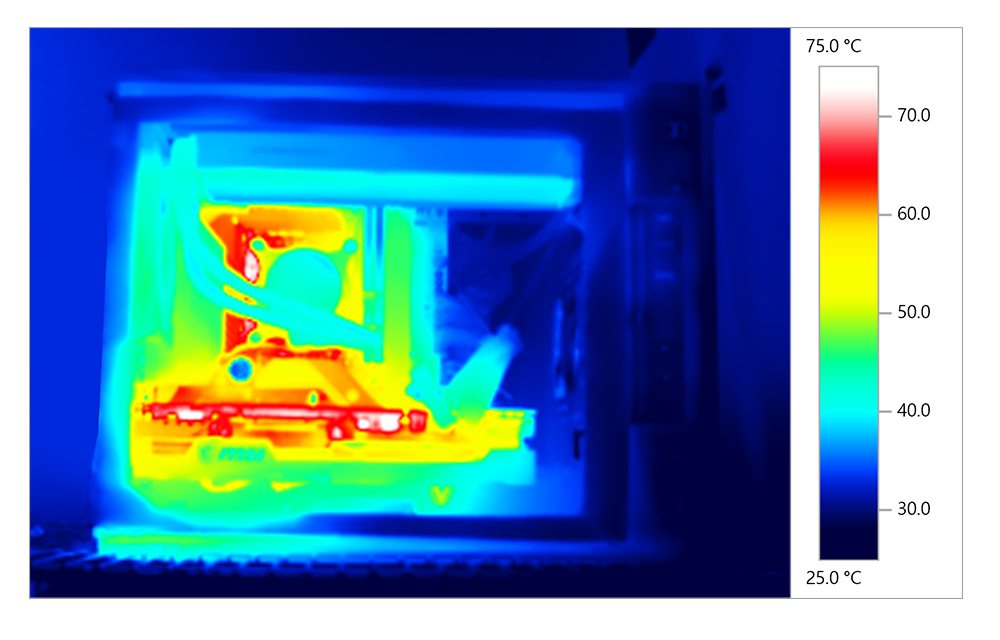

    Full-load
Excellent Hardware Support &Cooling Solution
The Divider 200 TG Air Snow has an excellent hardware expansion. It can support a CPU cooler with a maximum height of 185mm, VGA with maximum length of 340mm (without radiator), a power supply with a length of up to 200mm (without bottom fan), total of three 3.5 HDDs and three 2.5 SSDs or a total of six 2.5 SSDs. When it comes to the cooling solution, the Divider 200 TG Air Snow is preinstalled with one 200mm non-RGB front fan for cold air intake and one 120mm standard rear for hot air extraction. The case can hold up two 140mm fans at the front and two 140mm fans on the right. Moreover, the Divider 200 TG Air Snow is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 280mm at the front and on the right.
Dimensions
PSU
Storage-1
Storage-2
Fan Capacity
Radiator Capacity

VGA

Length limitation 310mm
(with 27mm radiator)
Length limitation 340mm
(without radiator)

CPU Cooler

Max height 185mm

Motherboard

Micro ATX, Mini ITX
Handy I/O Ports

Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.

DMD: Dismantlable Modular Design

Strip your case down to the bones and install elements when and as you need them with our modular design. The Divider 200 TG Air Snow features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

All-in-One Compatibility List
All-in-One Compatibility List
120 Series240 Series360 Series140 Series280 Series
Front-
Right-
Rear----
Bottom-----
Fan Support List
Fan Compatibility List
120mm140mm200mm
Front221
Right22-
Rear11-
Bottom2--
Thermaltake Compatible Fan
120mm140mm200mm
PURE FAN Series
Riing FAN Series
P/NCA-1V1-00S6WN-01
SeriesDivider
ModelDivider 200 TG Air Snow
CASE TYPEMicro Case
Dimension (H x W x D)364.7 x 333.2 x 425.7 mm
(14.4 x 13.1 x 16.8 inch)
NET WEIGHT8.97 kg / 19.78 lbs.
PANEL3mm Tempered Glass x 2
ColorWhite
MATERIALSPCC
COOLING SYSTEMFront (intake):
200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1
Drive Bays
-Accessible
-Hidden

3 x 3.5, 3 x 2.5
or 6 x 2.5
EXPANSION SLOTS5
MOTHERBOARDS6.7 x 6.7 (Mini ITX) , 9.6 x 9.6 (Micro ATX)
I/O PortUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (optional)
FAN SUPPORTFront:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
1 x 200mm
Right:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm, 1 x 120mm
RADIATOR SUPPORTFront:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
CLEARANCECPU cooler height limitation:
185mm
VGA length limitation:
310mm (With 27mm radiator)
340mm (Without radiator)
PSU length limitation:
180mm (With Bottom Fan)
200mm (Without Bottom Fan)
