Noctua NA-IS1-12 chromax.black Sx2 - Inlet spacers

IMG 1 of 1
Our Price:
$30.45
RRP:
$32.00
You Save:
$1.55
or quickly purchase this product
Backorder
Part Number:
556834
(?) Brand:
Noctua Web Site
Manuf No:
NA-IS1-12-CH-BK-SX2
NAIS112CHBKSX2
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
NA-IS1-12-CH-BK-SX2, NAIS112CHBKSX2

More airflow, less noise

5mm offset improves acoustics and performance in pull type applications

Designed for Noctua 120mm fans

Compatible with all current Noctua square-frame 120x25mm fans

chromax.black edition

A perfect match for black chromax or industrialPPC line fans

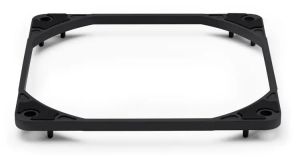

The NA-IS1-12 Sx2 is a set of two 5mm thick intake side spacer frames for Noctua 120x25mm fans that can help to improve both acoustics and performance in suction or pull type applications where the fan draws air through obstacles such as grills, perforated plates, mesh panels, filters or radiators. By offsetting the fan from the obstacle, the NA-IS1 inlet spacer reduces influx turbulences, which can, depending on the application and fan model,not only improve airflow but also significantly reduce overall noise levels and make the fan sound more pleasant to the ear. Designed to replace the fans stock NA-AVP1 anti-vibration pads, the NA-IS1-12 are compatible with all current square-frame Noctua 120x25mm fans and extremely straightforward to install: For case fan applications, either the supplied self-tapping screws or the included NA-AV3 anti-vibration mounts can be used to sandwich the spacer between the fan and the case panel. For radiator mounting, both M3 and UNC 6-32 screws are supplied. In sum, the NA-IS1-12 Sx2 set is a simple yet highly effective fine-tuning measure for suction type applications where a reduction of influx turbulence can lead to improved airflow and acoustics. The chromax.black variant is a perfect match for black chromax or industrialPPC line fans.
Key specifications
Colour
Black
Fan size
120 mm
Material
PBT (Polybutylene terephthalate)
Warranty
6 years
Scope of delivery
  • 2x NA-IS1-12 chromax.black inlet spacers for 120mm fans
  • 8x NA-AV3 chromax.black anti-vibration mounts
  • 8x NM-SFS4-BK long fan screws
  • 8x NM-SFS5-BK radiator screws (M3)
  • 8x NM-SFS6-BK radiator screws (UNC)
