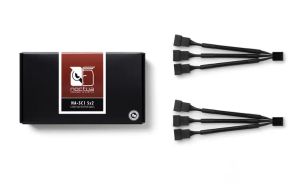

Noctua Noctua set of 2 NA-SC1 3-way fan splitter cable

IMG 1 of 3
Our Price:
$17.40
RRP:
$19.00
You Save:
$1.60
or quickly purchase this product
Backorder
Part Number:
556843
(?) Brand:
Noctua Web Site
Manuf No:
NA-SC1 SX2
NASC1 SX2
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
NASC1 SX2, NA-SC1 SX2

3-way splitters

For powering and speed-controlling three fans through a single fan header

4-pin connector

Supports both 3-pin and 4-pin PWM fans

PWM control and RPM monitoring

Forwards the PWM signal for speed control to all 3 output connectors

The NA-SC1 Sx2 is a set of two NA-SC1 3-way fan splitter cables that make it possible to power and control three fans through one fan header. By connecting the second triple splitter cable to the first, a total of five fans can be powered and controlled simultaneously. The NA-SC1 cables also feed the RPM signal of the fan on the first output connector back to the input connector so that PC motherboards or other fan controllers can read out the fan speed. The NA-SC1s 4-pin connectors are keyed to prevent misalignment and compatible with both 4-pin PWM and 3-pin fans. While 4-pin fans can be controlled through PWM, the speed of 3-pin fans can be adjusted using voltage control. Thanks to the high-quality black fibreglass silicone sleeving, the NA-SC1 cables are ideal both for use in PCs and for home or multi-purpose ventilation applications.
Key specifications
Fan connector
4-pin PWM
Pin configuration
Illustration of the pin configuration with the following text.: 3 pin 12V fans (non-PWM): Yellow = RPM Speed Signal, Red = +12V, Black = Ground (GND); 4 pin 12V fans (PWM): Blue = PWM Signal (+5V), Green = RPM Speed Signal; Yellow = +12V, Black = Ground (GND)
Cable length
102 mm
Colour
Black
Warranty
6 years
Scope of delivery
  • 2x NA-SC1 3-way splitter cable
