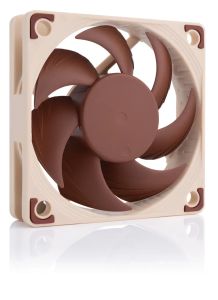

Noctua Noctua 60mm NF-A6x15 5V PWM 3000RPM Fan - 60x15mm, 5V premium fan with PWM

Our Price:

$36.95

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

556854

(?) Brand:

Noctua Web Site

Manuf No:

NF-A6X15-5V-PWM
NFA6X155VPWM

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

NF-A6X15-5V-PWM, NFA6X155VPWM

15mm slim design

Ideal replacement for noisy or broken 6cm fans

Quiet cooling performance

Outstanding airflow and pressure at minimum noise levels

5V PWM version

With USB power adaptor cable

Featuring advanced aerodynamic design measures such asFlow Acceleration Channelsand anAAOframe, the NF-A6x15 5V PWM is a PWM-enabled 5V variant of Noctuas highly optimised, premium-quality quiet 60x15mm fan. The custom-designed NE-FD3 5V PWM IC that integrates Smooth Commutation Drive technology and Noctuas reference-classSSO2 bearingguarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, theOmniJoin Adaptor Setand a 6-year manufacturers warranty, the NF-A6x15 5V PWM is a premium choice for demanding 5V applications that require PWM control.

Key specifications

Size (Form factor)	60 x 60 x 15 mm
Speed range	3500 rpm
Airflow (max.)	23.4 m/h (13.77 CFM)
Acoustical noise (max.)	19.8 dB(A)
Static pressure (max.)	2.43 mm HO
Rated voltage	5 V
Connector	4-pin
Colour	Brown
Warranty	6 years

Scope of delivery

4x NA-AV2 anti-vibration mounts
NA-EC1 30cm extension cable
USB power adaptor cable
OmniJoin adaptor set
Fan screws

Mechanical specifications

Dimensions without anti-vibration pads	60 x 60 x 15 mm
Dimensions with anti-vibration pads	60 x 60 x 16 mm
Mounting hole spacing(s)	50 x 50 mm
Weight	40 g
Material frame	PBT GF30
Material impeller	PBT GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Beige
Impeller colour	Brown
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	200 mm
Cable length with extension cable (included)	500 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh
Included adaptors	OmniJoin, USB Type-A

Performance specifications

Rotational speed (max.)	3500 rpm
Rotational speed @ 20% PWM	500 rpm
Acoustical noise (max.)	19.8 dB(A)
Airflow (max.)	23.4 m/h (13.77 CFM)
Static pressure (max.)	2.43 mm HO

Electrical specifications

Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD3
Rated voltage	5 V
Starting voltage	4 V
Max. operating voltage	5.5 V
Pin configuration
Pin 1	Black: Ground (GND)
Pin 2	Yellow: Voltage (Vcc)
Pin 3	Green: RPM Signal
Pin 4	Blue: PWM Signal
Input power (max)	0.85 W
Input current (max)	0.17 A

Safety, compliance & environmental specifications

Safety standards	EN62368-1
EMC standards	EN55032, EN55035
UL
CE
UKCA
TV
Production Standards	ISO 9001 & ISO 14001
Flammability	UL 94 V-0
REACH
RoHS
CMRT
EMRT
Ingress protection	IP50
Operating temperature	-10C to +70C
Operating humidity	15 90 %
Storage temperature	-20C to +75C
Storage humidity	15 90 %
MTTF	> 150,000 h
Locked rotor protection	Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.
Polarity protection	Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.
Over voltage protection
Over current protection
Insulation resistance	10 M / between unshielded wire and frame at 500 VDC/min
Dielectric strength	5 mA max. / measured between lead wire (+) and frame at 500 VAC/min
