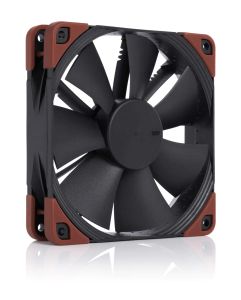

Noctua Noctua NF-F12 industrialPPC-2000 IP67 PWM - Heavy-duty 120mm industrial fan

Our Price:

$73.25

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

556870

(?) Brand:

Noctua Web Site

Manuf No:

NF-F12-IPPC-2000-IP67-PWM
NFF12IPPC2000IP67PWM

Shipping Weight:

0.3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

NF-F12-IPPC-2000-IP67-PWM, NFF12IPPC2000IP67PWM

Award-winning 120mm design

For high static pressure and superior cooling efficiency

2000rpm industrialPPC version

Fibre-glass reinforced polyamide construction for heavy-duty use

4-pin PWM version

With IP67 certified water and dust protection

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12industrialPPC(Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novelthree-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renownedSSO2 bearingtechnology guarantees an MTTF of over 150.000hrs. Topped off with Noctuas trusted reliability and 6 years manufacturers warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Key specifications

Size (Form factor)	120 x 120 x 25 mm (square)
Speed range	0 2000 rpm
Airflow (max.)	121.8 m/h (71.69 CFM)
Acoustical noise (max.)	29.7 dB(A)
Static pressure (max.)	3.94 mm HO
Rated voltage	12 V
Input power (typical)	1.06 W
Connector	4-pin
Colour	Black
Warranty	6 years

Scope of delivery

NF-F12 industrialPPC-2000 IP67 PWM premium fan
Fan screws

Mechanical specifications

Dimensions without anti-vibration pads	140 x 140 x 25 mm
Dimensions with anti-vibration pads	141 x 141 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	105 x 105 mm
Weight	190 g
Material frame	PA66 GF30
Material impeller	PA66 GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	400 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh

Performance specifications

Rotational speed (max.)	2000 rpm
Rotational speed @ 20% PWM	550 rpm
Rotational speed @ 0% PWM	0 rpm
Acoustical noise (max.)	29.7 dB(A)
Airflow (max.)	121.8 m/h (71.69 CFM)
Static pressure (max.)	3.94 mm HO

Electrical specifications

Motor type (phases)	Three phase
Poles	4
Slots	6
Driver IC	NE-FD2
Rated voltage	12 V
Starting voltage	7 V
Max. operating voltage	13.2 V
Pin configuration
Pin 1	Black: Ground (GND)
Pin 2	Yellow: Voltage (Vcc)
Pin 3	Green: RPM Signal
Pin 4	Blue: PWM Signal
Input power (max)	1.2 W
Input power (typical)	1.06 W
Input current (max)	0.1 A
Input current (typical)	0.09 A

Safety, compliance & environmental specifications

Safety standards	EN62368-1
EMC standards	EN55032, EN55035
UL
CE
UKCA
TV
Production Standards	ISO 9001 & ISO 14001
Flammability	UL 94 V-0
REACH
RoHS
CMRT
EMRT
Ingress protection	IP67
Operating temperature	-40C to +70C
Operating humidity	15 90 %
Storage temperature	-40C to +75C
Storage humidity	15 90 %
MTTF	> 150,000 h
Locked rotor protection	Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.
Polarity protection	Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged.
Overvoltage protection
Overcurrent protection
Insulation resistance	10 M / between unshielded wire and frame at 500 VDC/min
Dielectric strength	5 mA max. / measured between lead wire (+) and frame at 500 VAC/min
