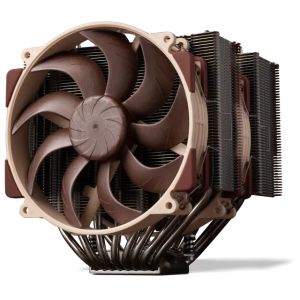

NHD15 G2, NH-D15 G2
Second generation
Further improved second generation of the iconic NH-D15
Superior performance
8 heatpipes & 20% more surface area for higher heat-loads
State-of-the-art fans
Dual NF-A14x25r G2 PWM fans with speed-offset
The NH-D15 G2 is the further improved second generation of Noctuas iconicNH-D15. With its state-of-the-art, speed-offsetNF-A14x25r G2 PWMfans, eight heatpipes and asymmetrical fin-stacks that have been carefully fine-tuned to work in tandem with the new fans, it achieves even better quiet cooling performance than its award-winning predecessor. As such, the G2 version is a true flagship model that continues the legacy of the original NH-D15 by pushing the boundaries of air cooling and rivalling the efficiency of many all-in-one (AIO) water cooling solutions.
In addition to its further improved performance, the NH-D15 G2 also offers enhanced compatibility thanks to an offset construction that allows it to clear the top PCIe x16 slot on most current motherboards. Last but not least, the G2 version has been upgraded to the Torx-based SecuFirm2+ multi-socket mounting system with includedNM-SD1screwdriver as well as to Noctuas superiorNT-H2thermal compound.
In short, the NH-D15 G2 has been further refined in virtually all respects from the heatsink and the fans all the way down to the mounting, thermal paste and accessory package. Topped off with Noctuas trusted 6-year manufacturers warranty, its the new number one choice for customers who demand the best of the best in air cooling.
Socket compatibility | AM5,AM4,LGA1700,LGA1851,LGA1156,LGA1155,LGA1150,LGA1151,LGA1200 |
Total height | |
| 2x 140x140x25mm (round) |
| 228 |
Colour | Brown |
Warranty | 6 years |
- 2x NF-A14x25r G2 PWM premium fan
- 2x NA-RC16 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NT-H2 high-grade thermal compound
- NA-TPG1 thermal paste guard for AM5
- NA-CW1 cleaning wipe
- SecuFirm2+ multi-socket mounting system
- 4x NM-ISW1 shim washers for LGA1700
- NM-SD1 Torx T20 screwdriver
- Noctua metal case-badge
Fan:NF-A14x25r G2 PWM Sx2-PP
Size (Form factor) | 140 x 140 x 25 mm (round) |
Speed range | |
Airflow (max.) | 155.6 m/h (91.58 CFM) |
Acoustical noise (max.) | 24.8 dB(A) |
Static pressure (max.) | 2.56 mm HO |
Rated voltage | 12 V |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | |
Height without fan(s) | 168 mm |
Width with fan(s) | 150 mm |
Width without fan(s) | 150 mm |
Depth with fan(s) | 152 mm |
Depth without fan(s) | 127 mm |
Weight with fan(s) | 1525 g |
Weight without fan(s) | 1180 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Base convexity | Standard |
Measurements & clearance | |
Colour | Brown |
Number of heatpipes | 8 |
Heatpipe diameter | 6 mm |
Fin count | 58 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U |
Base size | 44.6 x 51.6 mm |
Performance specifications
