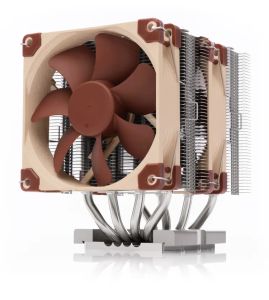

Noctua Noctua NH-D9 DX-4677 4U - 4U server & workstation cooler

Our Price:

$254.80

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

556879

(?) Brand:

Noctua Web Site

Manuf No:

NH-D9-DX-4677-4U
NHD9DX46774U

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

NH-D9-DX-4677-4U, NHD9DX46774U

Compact dual-tower design

For excellent case-, RAM- and PCIe-compatibility

Dual NF-A9 HS-PWM fans

Push/pull setup with PWM for automatic speed control

Dedicated version for LGA4677

For 4th gen Xeon Scalable & w9, w7, w5 or w3 series processors

Noctuas DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-4677 4U features a larger, custom-designed contact surface for LGA4677 (E1) and LGA4710 (E2) platforms. Based on the proven, 92mm sizeNH-D9Lheatsink and equipped with two of Noctuas award-winning, PWM controlledNF-A992mm fans (high-speed 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-D9s direction of airflow is parallel to the long axis of the LGA4677/LGA4710 socket, so it is ideal for builds where the hot air is exhausted this way. Topped off with the professional SecuFirm2 mounting system and pre-appliedNT-H1thermal compound, the NH-D9 DX-4677 4U forms a complete premium quality package for quietly cooling LGA4677 or LGA4710 based Xeon workstations and servers.

Key specifications

Socket compatibility	LGA4677,LGA4710
Total height	134 mm
Fan configuration	2x 92x92x25mm
NSPR	134
Colour	Brown
Warranty	6 years

Scope of delivery

2x NF-A9 HS-PWM premium fan
NA-YC1 4-pin PWM splitter cable
NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2 mounting kit for LGA4677
NM-SMT5 Torx T30 mounting tool

Fan: NF-A9 HS-PWM

Size (Form factor)	92 x 92 x 25 mm
Speed range	0 2500 rpm
Airflow (max.)	96.3 m/h (56.68 CFM)
Acoustical noise (max.)	30.6 dB(A)
Static pressure (max.)	3.26 mm HO
Rated voltage	12 V
Connector	4-pin
Colour	Brown
Warranty	6 years

Mechanical specifications

Height with fan(s)	134 mm
Height without fan(s)	134 mm
Width with fan(s)	95 mm
Width without fan(s)	95 mm
Depth with fan(s)	120 mm
Depth without fan(s)	95 mm
Weight with fan(s)	769 g
Weight without fan(s)	584 g
Material: heatsink base	Copper, nickel plated
Material: heatsink fins	Aluminium, nickel plated
Material: heatpipes	Copper, nickel plated
Interface heatpipes/heatsink fins	Soldered
Colour	Brown
Number of heatpipes	4
Heatpipe diameter	6 mm
Fin count	47
Rack unit compatibility	5U, 4U
Base size	56 x 70 mm

Performance specifications

NSPR

134
