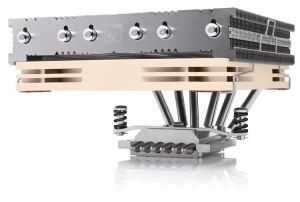

Noctua Noctua NH-L12Sx77 - 77mm height low-profile cooler

IMG 1 of 7
Our Price:
$156.60
RRP:
$159.00
You Save:
$2.40
or quickly purchase this product
Backorder
Part Number:
556880
(?) Brand:
Noctua Web Site
Manuf No:
NH-L12SX77
NHL12SX77
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
NH-L12SX77, NHL12SX77

Performance-enhanced low-profile cooling

77mm total height, powerful yet compact

Slim NF-A12x15 120mm fan

With PWM support and Low-Noise Adaptor

SecuFirm2 mounting system

Synonymous with quality, safety and easy installation

The NH-L12Sx77 is a slightly taller variant of the award-winningNH-L12S, offering improved cooling performance as well as enhanced motherboard and RAM compatibility. With six instead of four heatpipes, it provides additional thermal headroom while maintaining the same default fan setup with the fan installed below the fin stack blowing upwards, which not only guarantees optimal acoustics in situations with perforated case panels right above the cooler, but also helps to exhaust hot air from the case. Due to the increased height, clearance for tall motherboard heatsinks or RAM modules could be improved significantly, yet at a height of 77mm, the NH-L12Sx77 is still compact enough to fit popular Small Form Factor (SFF/SFX) cases such as the Fractal Design Terra, Silverstone Milo ML12 or Louqe Raw S1. Topped off with the renowned SecuFirm2 mounting system, Noctuas award-winningNT-H2thermal compound and a 6-year manufacturers warranty, the NH-L12Sx77 is the perfect choice for SFF builds that require strong cooling performance but cannot fit the largerNH-C14SorNH-D9L.
Key specifications
Socket compatibility
AM5,AM4,LGA1700,LGA1851,LGA1156,LGA1155,LGA1150,LGA1151,LGA1200
Total height
93 mm
Fan configuration
1x 120x120x15mm
NSPR
100
Colour
Brown
Warranty
6 years
Scope of delivery
  • NF-A12x15 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H2 high-grade thermal compound
  • SecuFirm2 mounting kit
  • Noctua metal case-badge
n:NF-A12x15 PWM
Size (Form factor)
120 x 120 x 15 mm
Speed range
0 1850 rpm
Airflow (max.)
94.2 m/h (55.44 CFM)
Acoustical noise (max.)
23.9 dB(A)
Static pressure (max.)
1.53 mm HO
Rated voltage
12 V
Input power (typical)
1.27 W
Connector
4-pin
Colour
Brown
Warranty
6 years
Mechanical specifications
Height with fan(s)
93 mm
Height without fan(s)
77 mm
Width with fan(s)
128 mm
Width without fan(s)
128 mm
Depth with fan(s)
131 mm
Depth without fan(s)
131 mm
Weight with fan(s)
520 g
Weight without fan(s)
410 g
Material: heatsink base
Copper, nickel plated
Material: heatsink fins
Aluminium, nickel plated
Material: heatpipes
Copper, nickel plated
Interface heatpipes/heatsink fins
Soldered
Colour
Brown
Number of heatpipes
6
Heatpipe diameter
6 mm
Fin count
55
Mounting hole pitch
78 mm
Rack unit compatibility
5U, 4U, 3U
Base size
38 x 40 mm
Performance specifications
NSPR
100

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Noctua) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
