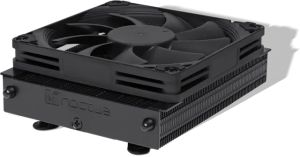

Noctua Noctua NH-L9a-AM5 chromax.black - Low profile cooler for AMD AM5

IMG 1 of 6
Our Price:
$109.40
or quickly purchase this product
Backorder
Part Number:
556881
(?) Brand:
Noctua Web Site
Manuf No:
NH-L9A-AM5-CH-BK
NHL9AAM5CHBK
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
NH-L9A-AM5-CH-BK, NHL9AAM5CHBK

Ultra-compact low-profile

37mm total height, 100% RAM- and PCIe-compatibility

Slim NF-A19x14 92mm fan

With PWM support and Low-Noise Adaptor

chromax.black edition

With a black coated heatsink and chromax.black fan

The NH-L9a-AM5chromax.black is an all-black version of Noctuas award-winningNH-L9a-AM5low-profile quiet CPU cooler for AMD AM5 based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design andNF-A9x14 PWMfan, it stays true to the NH-L9a-AM5s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for AMD AM5, Noctuas enthusiast-gradeNT-H1thermal compound and a full 6-year manufacturers warranty, the NH-L9a-AM5 chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.
Key specifications
Socket compatibility
AM5
Total height
37 mm
Fan configuration
1x 92x92x14mm
NSPR
61
Colour
Black
Warranty
6 years
Scope of delivery
  • Black NH-L9a-AM5 heatsink
  • NF-A9x14 HS-PWM chromax.black premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2 AM5 mounting kit
  • Black screws for 92x92x25mm fans
  • Noctua metal case-badge
Fan: NF-A9x14 HS-PWM chromax.black
Size (Form factor)
92 x 92 x 14 mm
Speed range
0 2500 rpm
Airflow (max.)
57.5 m/h (33.84 CFM)
Acoustical noise (max.)
23.6 dB(A)
Static pressure (max.)
2.11 mm HO
Input power (typical)
1.848 W
Connector
4-pin
Colour
Black
Warranty
6 years
Mechanical specifications
Height with fan(s)
37 mm
Height without fan(s)
23 mm
Width with fan(s)
114 mm
Width without fan(s)
114 mm
Depth with fan(s)
92 mm
Depth without fan(s)
92 mm
Weight with fan(s)
390 g
Weight without fan(s)
465 g
Material: heatsink base
Copper, nickel plated
Material: heatsink fins
Aluminium, nickel plated
Material: heatpipes
Copper, nickel plated
Interface heatpipes/heatsink fins
Soldered
Colour
Black
Number of heatpipes
2
Heatpipe diameter
6 mm
Fin count
67
Rack unit compatibility
5U, 4U, 3U, 2U
Base size
40,8 x 40 mm
Performance specifications
NSPR
61

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Noctua) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
