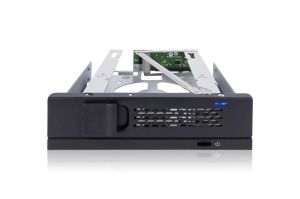

Icydock MB171SP-1B TurboSwap Tray-less 3.5" SAS/SATA HDD Mobile Rack Enclosure for 5.25" Bay

IMG 1 of 11
Our Price:
$77.20
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557116
(?) Brand:
Icydock Web Site
Manuf No:
MB171SP-1B
MB171SP1B
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MB171SP-1B, MB171SP1B
  • Product Introduction
    The TurboSwap MB171SP-1B is a rugged full metal single bay 3.5" SAS/SATA trayless hard drive enclosure designed to fit any 5.25-in optical drive bay of the PC cases. This enclosure features a tray-less and tool-less drive installation design for quickly swap out drives without opening the computer case or using tools. The TurboSwap MB171SP-1B has an individual drive power button and is equipped with a heavy-duty metal door latch for the best drive protection.
  • Tool-less Drive Installation with Hot Swap Support
    The TurboSwap is equipped with our proven tray-less technology no screws, tools, or trays are necessary to insert or eject the drive. Simply insert the 3.5" SAS or SATA hard drive into the drive bay, close the door and ready to access the drive. When finished, open the door to eject the drive. The all-metal door latch offers stable and smooth drive ejection action and protection to the installed drive.
  • Full Metal Structure
    To ensure enclosure reliability for many years, the TurboSwap can hold up in the harshest and roughest environments. The housing is made of a full-metal construction that is suitable for rugged-edge applications and industries that require a flammability rating.
  • Maximum Heat Dissipation
    The open-air structure and air vents all around the device offer maximum heat dissipation. It works perfectly with your computer's cooling system and keeps your drive cool even under heavy workloads.
  • Optional Fan Mounting Holes
    The TurboSwap MB171SP-1B includes four optional mounting holes for an 80mm cooling fan. Install a compatible cooling fan (80x80x10mm) and connect it to your power supply if extra cooling is needed.

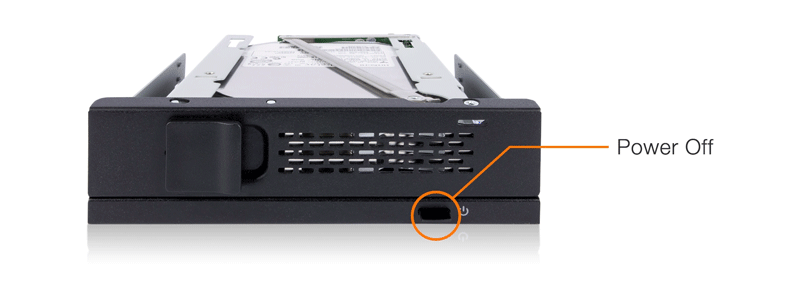

  • Drive Power Button & Activity Light
    The TurboSwap MB171SP-1B features an easy access drive power button that allows users to shut off the drive to reduce power and drive usage or prevent a hacker/virus attack. When a drive is fully inserted in the enclosure, the drive activity light will begin to light up and indicate the drive is powered and accessed.
  • Pair with EZConvert 2.5" to 3.5"SSD/HDD Converter
    Looking to use a 2.5" HDD/SSD with the TurboSwap MB171SP-1B? Pair with our EZConvert series, where you can convert your 2.5" HDD or SSD to a traditional 3.5" hard drive within seconds without requiring any tools or screws.


    EZConvert MB882SP-1S-1B 2.5" to 3.5" SATA SSD / Hard Drive ConverterTop access
    EZConvert MB882SP-1S-2B 2.5" to 3.5" SATA SSD / Hard Drive ConverterTop access
    EZConvert MB882SP-1S-3B 2.5" to 3.5" SATA SSD / Hard Drive ConverterFront access
    EZConvert MB482SP-3B 2.5" to 3.5" SATA SSD / Hard Drive ConverterFull Metal
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for TurboSwap MB171SP-1B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at [email protected]

Main Features
Supports 1x 3.5" SAS/SATA HDD (SAS host is required for SAS HDD)
Installed into any standard external 5.25" drive bay
Tray-less design for hot-swapping bare drives without tools or screws
Heavy-duty all-metal door latch for best drive protection
Supports SATA 3.0 6Gbps or SAS 4.0 up to 24Gbps (Single channel SAS only)
Supports SATA data and power cables with locking latches
Individual drive power button and drive activity light
Full-Metal construction to withstand any harsh environment
Industry-leading 3-year warranty against all defects
Complimentary support from a professionally trained support agent
Specification
Model Number MB171SP-1B
Color Black
Support Drive Size 3.5" HDD
Compatible Drive Type SATA / SAS (support single channel SAS)
Number of Drives 1
Max Drive Height 1 x 3.5" 26.1mm
Drive Bay 1 x 5.25" half height drive bay
Host Interface 7pin SATA connection
Power Input 15pin SATA power connection
Transfer Rate SATA 3.0 up to 6Gbps / SAS 4.0 up to 24Gbps (single channel)
Support HDD Capacity No limitation
RAID Function N/A
Structure / Material Full metal
Support Hot-Swap Yes
Product Dimension (L x W x H) 173 x 145.8 x 41.3mm
Product Net Weight 421.3g
Package Gross Weight 527.3g
Drive Activity LED Indication Drive power:solid blue; HDD access: flashing blue
Package Contents 1 - device, 1 - user manual, 8 - screws
SATA Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0C to 60C (32F to 140F)
Storage Temperature -35C to 70C (-31F to 158F)
Compliance CE, RoHS, REACH
Warranty 3 years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
