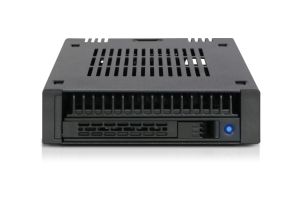

Icydock MB741SP-B ExpressCage 1x 2.5" SAS/SATA HDD/SSD Mobile Rack for External 3.5" bay - Comparable to Tray-Less Design

IMG 1 of 9
Our Price:
$72.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557201
(?) Brand:
Icydock Web Site
Manuf No:
MB741SP-B
MB741SPB
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MB741SP-B, MB741SPB
  • ExpressCage MB741SP-B
    Introducing the ExpressCage MB741SP-B, a single-bay hot-swap enclosure for any 2.5" SATA/SAS hard drive or SSD for the 3.5" external bay (Floppy bay). With the rising popularity of small-form-factor (SFF) and portable computing systems, there is a need for convenient and secure access to data storage devices utilizing smaller bays. To answer this, the new ExpressTray drive caddy supports completely tool-less drive installation, without sacrificing security, with its enhanced screw-less drive gripping mechanism, stabilized drive insertion design, and single-piece latch. Furthermore, the strong metal chassis provides protection against bumps and shock, while the integrated air ventilation holes work to keep your drives running cool all day, even under heavy load.
  • Space Saver
    Utilizing the small space of the external 3.5" drive bay (floppy bay), the MB741SP-B is perfect for applications where space is limited. Small-Form-Factor PCs, embedded systems, box PCs, in-vehicle systems, and home servers can all benefit from this compact 2.5" SAS/SATA drive enclosure. The front-accessible bay makes it easy to add or remove a drive for installation, upgrades, and maintenance.
  • Innovative New Tray Caddy Design
    The newly designed ExpressTray MB741TP-B is designed for applications where regular drive hot-swap is required, while providing security and durability, fit for enterprise applications. Grips on the sides of the caddy hold your drives securely, to keep your sensitive data safe. Because it supports full 15mm height drives, the ExpressCage MB741SP-B is compatible with nearly all 2.5" SAS (single channel) drives and data center / NAS drives, including the Seagate Enterprise Nytro, EXOS, and Ironwolf, WD Red and Ultrastar, HP Enterprise (HPE), Toshiba Enterprise, and all other enterprise grade drives.
  • The unique built-in screws allow for entirely tool-less drive installation and removal, to allow for quick and easy swapping of drives.
  • The unique built-in screws allow for entirely tool-less drive installation and removal, to allow for quick and easy swapping of drives.

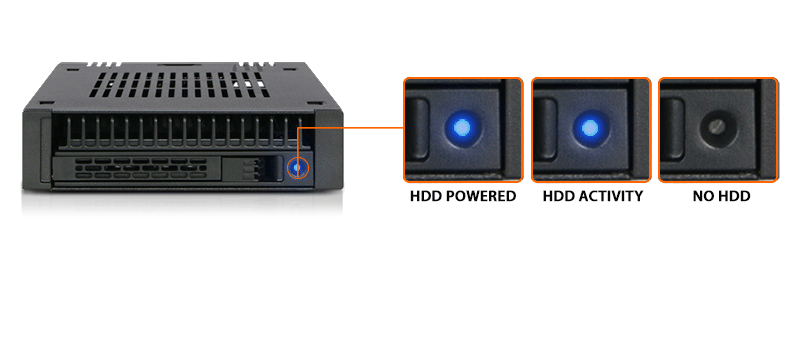

  • The strong, single-piece latch pops out with the press of a button, making it easy to remove your drives. The integrated drive activity light shines solid blue when powered, and flashes blue when the drive is in use, so you know when it's safe to remove your drives.
  • Versatile Utility & Security
    We understand that the first priority for any storage enclosure must be security of your data. That's why the MB741SP-B uses a metal enclosure for maximum protection from bumps and drops. The heat-dissipating properties of the enclosure, combined with the amply placed ventilation holes, keeps your drive running cool all day, even under heavy load.
  • The ExpressCage MB741SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches, so you'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they'll lock into place and stay that way.
  • Optional EZConvert MB703M2P-B for M.2 SATA SSD
    If you are looking to use a M.2 SATA SSD with the ExpressCage MB741SP-B, pair it with our EZConvert MB703M2P-B M.2 SSD to 2.5 form factor adapter featuring tool-less adjustable locker to secure your M.2 in place. To learn more about EZConvert MB703M2P-B please click HERE.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ExpressCage MB741SP-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
*IEC 60529 (IPX6) Protection against water jets

*The drive mobile rack enclosure needs to have a customized front water-resistant panel added to pass the IEC 60529 (IPX6) certification. Water resistance refers to preventing water from entering the enclosure through the front panel when the product is installed in the chassis, rather than making the entire enclosure water-resistant.

Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at [email protected]

Main Features
Rugged metal housing with durable ABS caddies for maximum security and protection
Fits 1x 2.5" SAS/SATA HDD/SSD, and installs into a single 3.5" external bay (floppy bay)
Supports 2.5" drives with 5mm, 7mm, 9.5mm, 12.5mm, and 15mm height
Multi-Flow Technology - Provides excellent passive cooling
Active Power Technology - Only powers on when a drive is installed, saving power
Advances ExpressCage drive caddy MB741TP-B, with new drive-gripping mechanism, strengthened single-piece latch, and tool-less drive installation
Removable drive caddy system for easy installation and maintenance
Supports SATA 3.0 6Gbps / SAS 3.0 12Gbps (single channel)
Supports Hot-Swap - Add or remove drives without restarting your computer
Supports SATA data and power cables with locking latches
Backed by full 3-year manufacturer's warranty
Anti-Vibration Technology (AVT) reduces vibration from mechanical hard drives
Specification
Model Number MB741SP-B
Color Black
Support Drive Size 2.5" SSD / HDD
Compatible Drive Type SATA / single channel SAS (SAS host required)
Number of Drives 1
Max Drive Height 15mm
Drive Bay 1 x external 3.5" drive bay
Host Interface 1 x SATA 7pin
Power Input 1 x 15 pin SATA power connector
Transfer Rate SATA 3.0 up to 6 Gbps / SAS 3.0 up to 12 Gbps
Support HDD Capacity No limitation
Structure / Material Metal with partial ABS plastic
Support Hot-Swap Yes
Product Dimension (L x W x H) 136.3 x 101.6 x 25.4mm
Product Net Weight 268g
Package Gross Weight 305g
Drive Activity LED Indication Drive power: solid blue; HDD access: flashing blue
Package Contents 1 - device, 1 - user manual, 6 - screw
SATA Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0C to 60C (32F to 140F)
Storage Temperature -35C to 70C (-31F to 158F)
Compliance CE, RoHS, REACH
Warranty 3 years
