FUPHDDP1 | Alogic Fusion Pro AXIS USB-C 8-in-1 Dual Display Dock

Components - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Notebooks - Accessories -> Docking Stations / Port Replicators -> Alogic

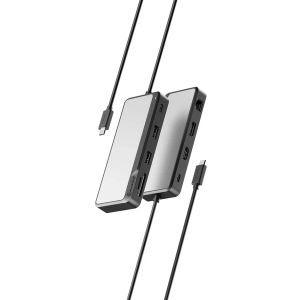

Alogic Fusion Pro AXIS USB-C 8-in-1 Dual Display Dock

Our Price:

$146.60

RRP:

~~$169.95~~

You Save:

$23.35

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

557466

(?) Brand:

Alogic

Manuf No:

FUPHDDP1

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

FUPHDDP1

Fusion Pro AXIS

USB-C Dual Display Dock

Compact 9-in-1 Dock for Portable Connectivity.

Up to 4K Video

Pass-through Charging

Plug & Play Driverless

Shielded Construction

Compact & Portable

Workspaces Made Simple

This dock does the job of a large format desktop dock while doing away with the bulky box and power adapter.

The dock has the ability to connect two monitors, up to four USB peripherals and Gigabit Ethernet. SD and micro SD card readers gives the added flexibility of managing photos and files on memory cards.

Stunning 4K Video

Small but powerful, the Axis Dock can extend a laptop's display to two external monitors significantly expanding the computer's capabilities.

Supporting resolutions up to 4K*, this dock provides vivid high resolution visualization for increased visual fidelity.

SUPPORTS

SINGLE DISPLAY

2+ DISPLAYS

Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ's below for guidance in the resolutions you can expect to achieve with your equipment.

Small and Robust

ALOGIC is redefining docking stations by packing the same features of a traditional large format dock into compact devices that are just as at home on a desk or on the road.

A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong so it can live in a laptop bag while taking up minimum space and without fear of being damaged.

Compact Design

This dock's compact design is perfect when space is at a premium and makes it a logical choice for mobile users road warriors, educators, students and professionals who work between the office and home.

Recommended Accessories

Frequently Asked Questions

General

Will this dock work with computers that dont have USB-C or Thunderbolt?

No, the AXIS dock can only be used with a computer that has Thunderbolt (3, 4 or 5) ports, or USB-C ports with DP Alt Mode support. Consult your computers manual or the manufacturers website to check if your computers USB-C ports support DP Alt Mode. Computers with just USB-A connectivity cannot be used with AXIS. ALOGIC manufactures a number of Universal docking stations that support USB-A computers, such as theDUCH2Universal Dual 4K Docking Station.

Will this device work with my Macbook?

Yes! This device works with all MacBooks released since 2018.MacBooks can only connect to one display at a time using this device. If you need to connect two or more monitors to a MacBook, please take a look at ALOGIC DisplayLink based docks including the DX2, DX3, DV3,DV4, CH2 and CD2 products.

Can I charge my computer with this device?

This device can operate standalone and receive power from the computer it is connected to, or you can connect a USB-C Power Delivery (USB PD) power adapter (available separately) to the hub and it can charge computers and tablets that support USB PD charging.

The device supports USB PD 2.0 and 3.0 power adapters up to 100W. Note that the device can reserve up to 15W from power adapters to power itself and peripheral devices connected to the ports on the hub so it is best to use a USB PD power adapter that is at least 15W larger than the power adapter that was supplied with the computer.

The maximum Wattage that this hub can provide to charge a computer is 85W (100W power adapter minus 15W reserved by the hub). This is sufficient for most laptops, but a few larger high performance laptops may slow charge or not be able to charge through this device. If the computer shows a message indicating that it is not receiving enough power from the device, increase the size (Wattage) of the connected power adapter or connect the power adapter directly to the computer.

Devices

What maximum resolution and refresh rate will my computer display with this device?

The maximum video resolution and refresh rate available depends on the capabilities of your computer. The table below lists the maximum available to computers of different types and capabilities.

Host Type	Max Resolution/Refresh Rate
Host Type	Without DSC^*	With DSC^*
USB-C 3.x DP1.2 alt mode hosts	4K 30Hz
USB-C 3.x DP1.4 alt mode hosts	4K 60Hz	8K 30Hz
TB3 DP1.2 alt mode hosts	4K 30Hz
TB3 DP1.4 alt mode hosts	4K 60Hz	8K 30Hz
TB4 DP1.4 alt mode hosts	8K 30Hz	8K 60Hz
USB 4 hosts	8K 30Hz	8K 60Hz
Mac Intel hosts	4K 30 - 60Hz (Model dependent)
Mac first generation M1 hosts	4K 60Hz
Mac M1 Pro/Max hosts	4K 60Hz

* DSC: Display Stream Compression

Specifications

Part No.: FUPHDDP1

Physical Characteristics

Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
Cable Length: 230mm
Colour: Space Grey and Black
Weight (product): 133g approx
Materials: Aluminium and ABS
Input: 1 x Integrated USB-C cable for connection to computer
1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
Output: 1 x HDMI 2.0
1 x DisplayPort 1.42 x USB-A 3.2 Gen 1 5Gbps
1 x USB-C 3.2 Gen 1 5Gbps
1 x USB-C 2.0 with PD power passthrough
1 x SD Card Reader
1 x Micro SD/TF Card Reader
1 x RJ45 Ethernet 1 Gbps
Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
Video Resolution: Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
See resolution tables at the bottom of this document for full specifications.
Audio Support: Supports HDMI audio output
Environmental Characteristics: Operating Temperature - 0C to +35C
Operating Humidity - 10% to 85% RH (no condensation)
Package Includes: 1 x FUPHDDP1 USB-C Dual Display Dock
1 x User Manual
Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
Windows and some Chrome OS computers are able to show independent video on two displays connected to this device.
MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
Compliance: FCC, CE, UKCA, RoHS
Warranty: 2 Years
Barcode (EAN): 9350784027337

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
