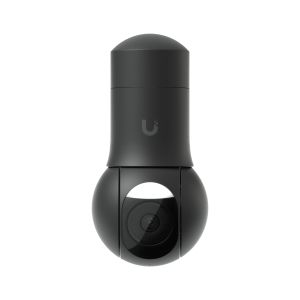

G5 PTZ (Black)
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
2K resolution
99.7 to 45.5 horizontal FOV, based on zoom
20 m (65 ft) IR night vision
2x optical zoom
Smart Detections
Microphone
IP66 Outdoor ready
Secure Any Angle, Anywhere
We are proud to announce the G5 PTZ: An industrial design marvel that seamlessly blends value, performance, and build quality. Designed for versatility, the G5 PTZ offers multiple mounting options for a complete installation experience.
Value, Performance & Build Quality
Advanced optics ensure exceptional low light performance with infrared and visible LEDs for night vision, and precise optical zoom.
Designed for Versatility

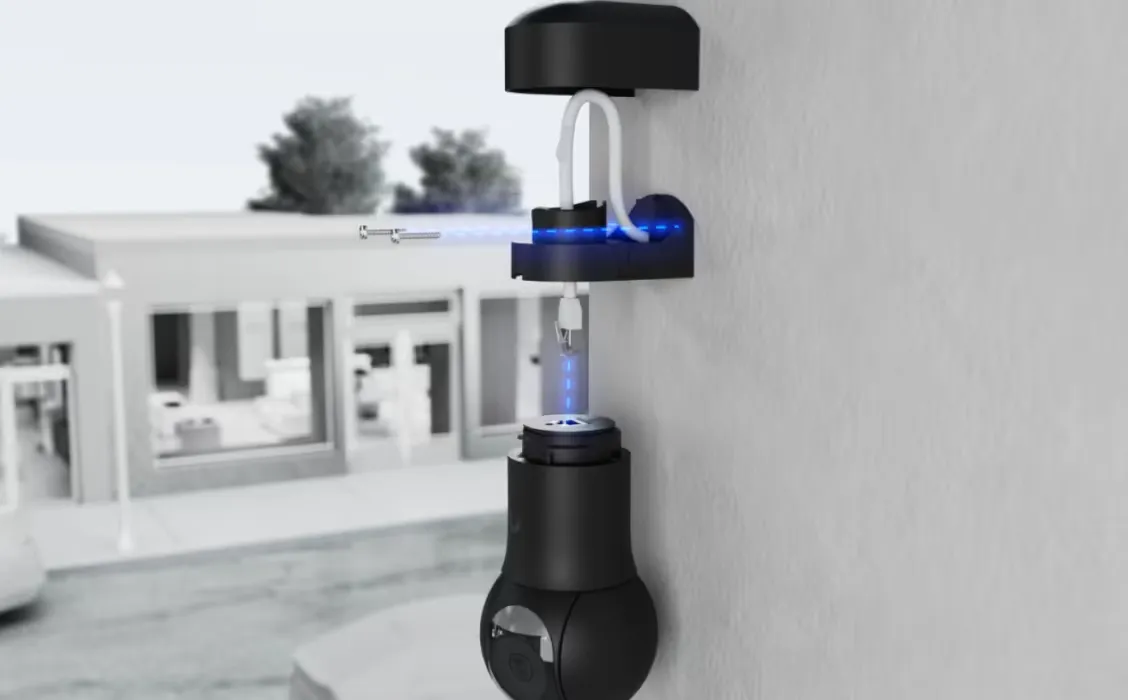

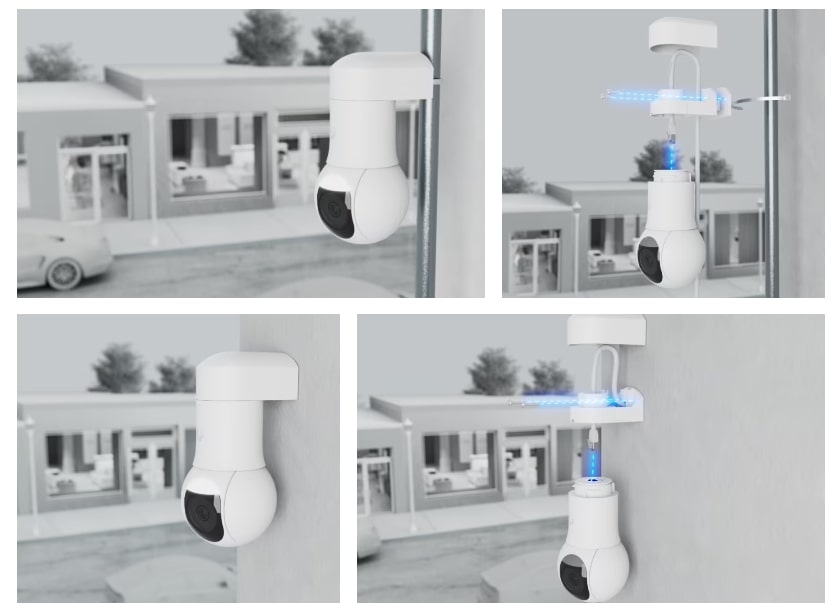

The G5 PTZ offers multiple mounting options, from outdoor wall or corner, to indoor ceiling or desktop placement. It even allows completely flush mounting for demanding interior designs.
Conduit adapter, surface, in-ceiling, pendant and corner mount options sold separately.
Overview

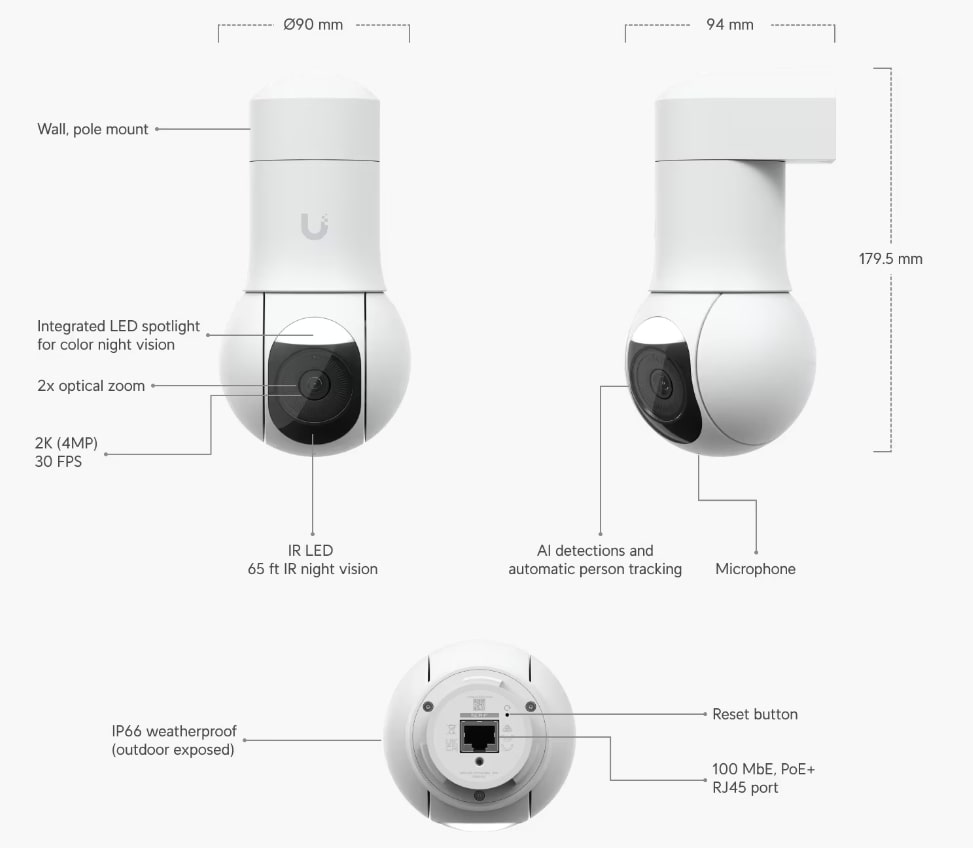

Dimensions
Without mount: 90 x 152.5 mm (3.5 x 6")
With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
IR Night Vision
20 m (65 ft)
Smart Detections
People, Vehicles, Animals
Field of View
Wide: H: 99.7, V: 51.9, D: 121
Tele: H: 45.5, V: 25.4, D: 52.4
Pan-Tilt Range
Pan: 350, Tilt: 100
Mounting
Wall mount, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)
Performance
Networking Interface
10/100 MbE RJ45 port
Resolution
4MP 2688 x 1512 (16:9)
Lens
F 3.426.85 mm; /1.85/2.4
Night Mode
Built-in IR & white LED illumination with IR cut filter
Hardware
Max. Power Consumption
14W
Supported Voltage Range
3757V DC
Pole Mount Diameter
1.52" (3850 mm)
Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)
Enclosure Material
Aluminium alloy, polycarbonate
Mount Material
Wall mount: polycarbonate
Pole mount: aluminium alloy
Ambient Operating Temperature
-30 to 45 C (-22 to 113 F)
Ambient Operating Humidity
0 to 90% non-condensing
Certifications
CE, FCC, IC
