All stock codes associated to this product
UVC-G6-PTZ-W, UVCG6PTZW, NHUUVCG6PTZW, NHU-UVC-G6-PTZ-W
G6 PTZ (White)

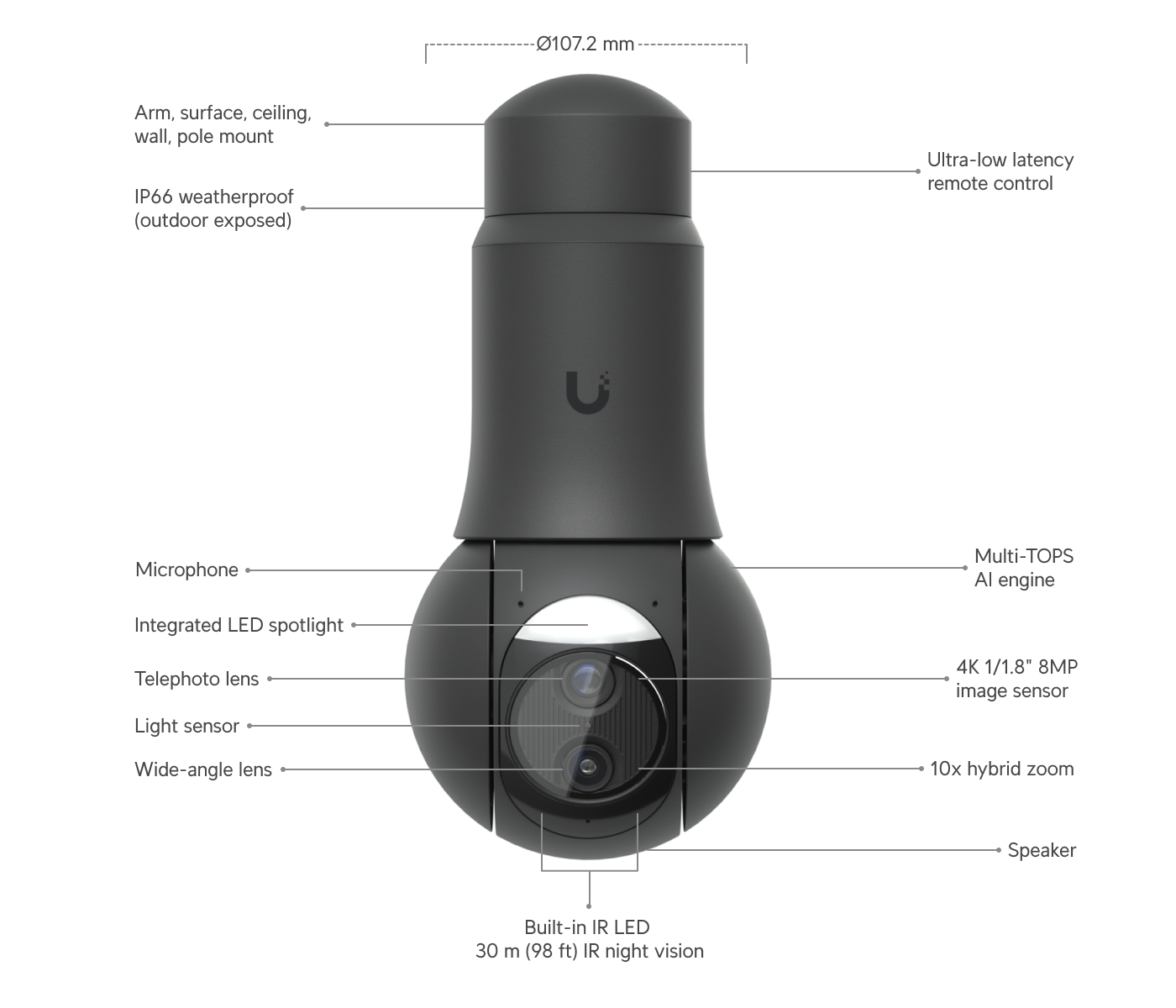

All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.
4K resolution
109.9 to 26.6 horizontal FOV, based on zoom
30 m (98 ft) IR night vision
10x hybrid zoom*
AI Recognition & Smart Detections
Two-way audio
IP66 Outdoor ready
*5x optical and 2x digital
Introducing Next-Gen PTZ Cameras
Ubiquiti are excited to introduce a major evolution in PTZ surveillance technology. Designed for performance, intelligence, and seamless integration, the new UniFi PTZ lineup delivers professional-grade features without compromise.
6th Gen Optics
The G6 PTZ features dual 1/1.8 4K 8MP image sensors that work in tandem for outstanding long range image performance.
Incredibly Versatile
PoE+ powered and equipped with powerful infrared capabilities, the G6 PTZ is just as effective in low-light conditions.
Edge AI Features
An integrated Multi-TOPS engine powers AI features such as face detection and license plate recognition.
Overview
Dimensions
Without mount: 107.2 x 104.5 x 203.2 mm (4.2 x 4.1 x 8")

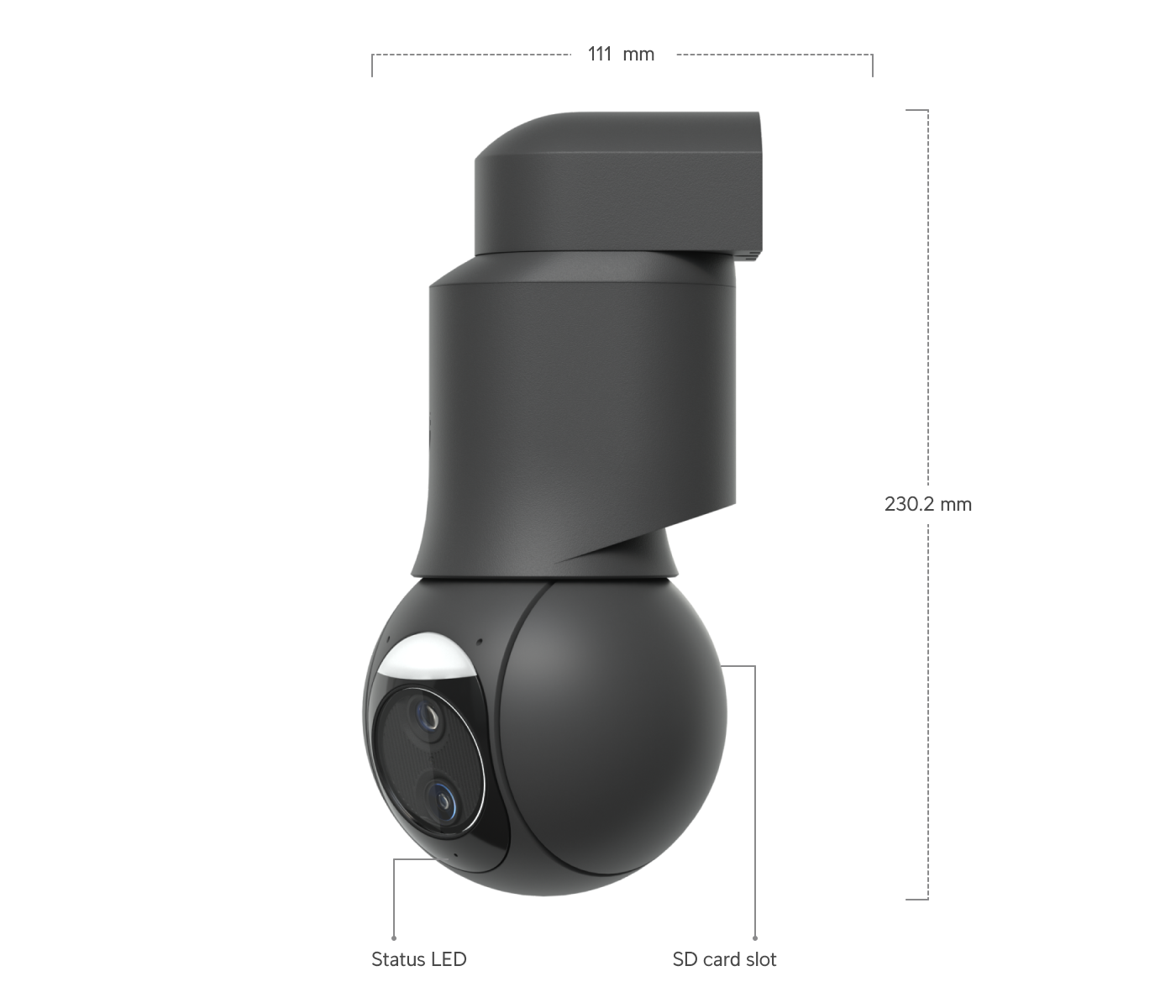

With mount: 107.2 x 111 x 230.2 mm (4.2 x 4.8 x 9.1")
IR Night Vision
30 m (98 ft)
Zoom Mode
10x Hybrid
*Combination of 5x optical and 2x digital
License Plate Recognition
Yes
Smart Detections (People, Vehicles, Animals)
Yes
Field of View
Wide: H: 109.9, V: 56.7, D: 134.1
Tele: H: 26.6, V: 15.1, D: 30.4
Pan-Tilt Range
Pan: 350
Tilt: 100
Mounting

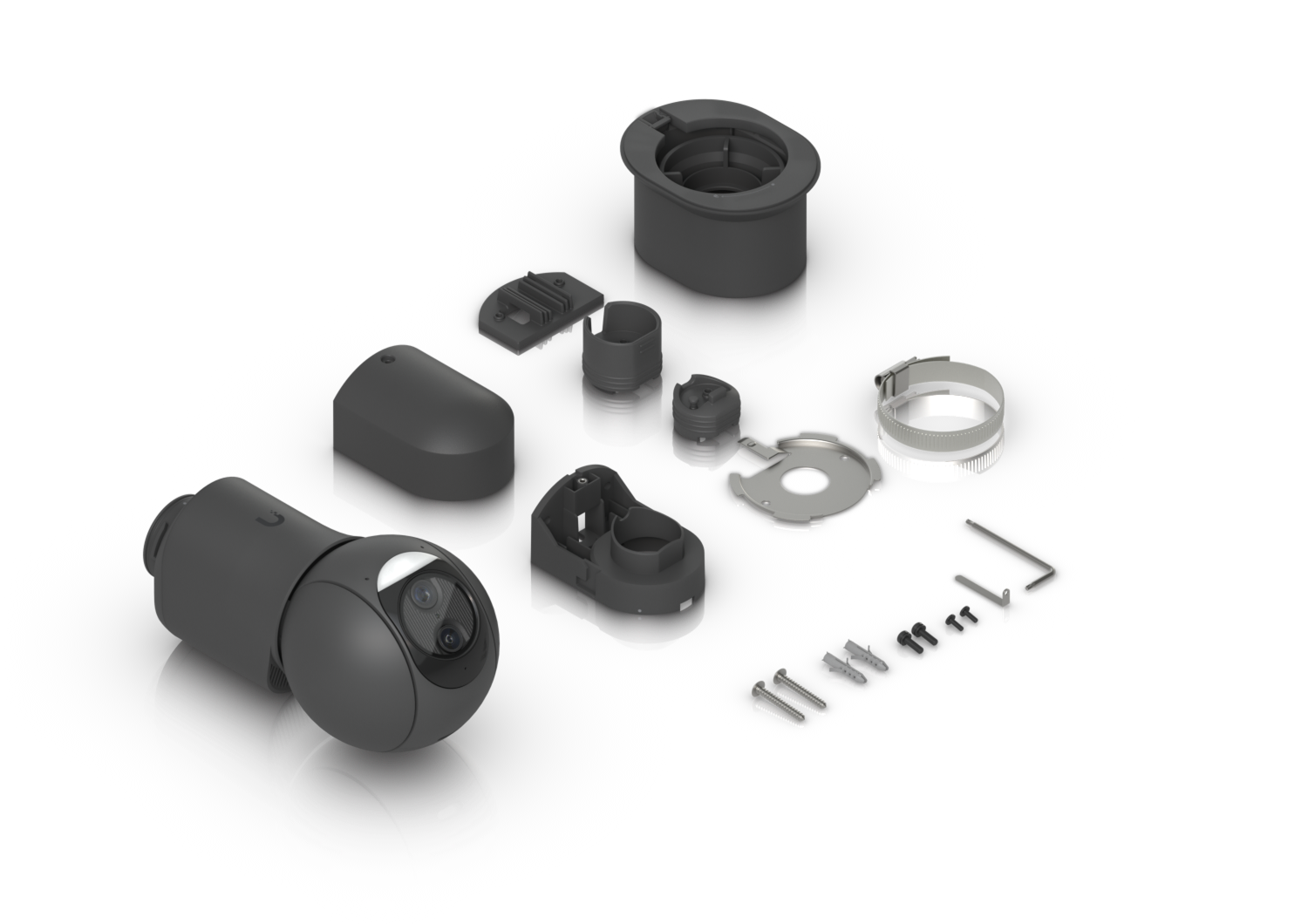

Wall, Surface, Ceiling, Pole mount (Included)
Corner, In-Ceiling, Pendant mount, Conduit adapter (Sold separately)
UniFi Application Suite
Protect
Performance
Networking Interface

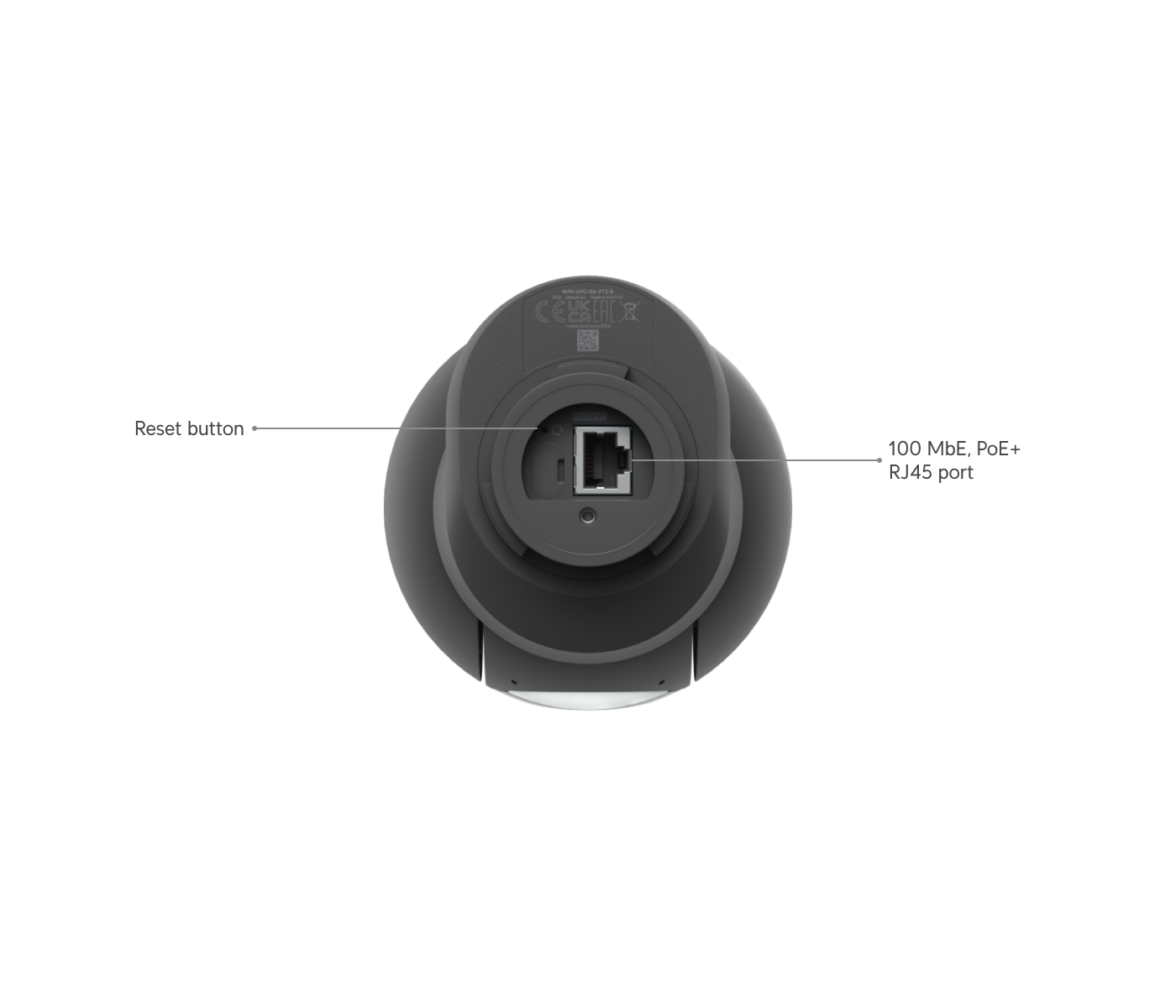

10/100 MbE RJ45 port
Video
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8MP 3840 x 2160 (16:9)
Optics
Sensor: Wide: 1/1.8" 8MP; Tele: 1/1.8" 8MP
Lens: Wide: F 4.46 mm; /1.65; Tele: F 16.3 mm; /2.4
Night Mode: Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
24.5W
Supported Voltage Range
42.557V DC
Processor
Quad-core Arm Cortex-A53 based chip
Pole Mount Diameter
1.52" (3850 mm)
Metal strap torque: 6Nm
Weight
Without arm mount: 1 kg (2.2 lb)
With arm mount: 1.1 kg (2.4 lb)
Enclosure Material
Aluminium alloy, polycarbonate
Mount Material
Arm mount: polycarbonate
Pole mount: aluminium alloy
Expansion Slot
MicroSD card
Ambient Operating Temperature
-30 to 50 C (-22 to 122 F)
Ambient Operating Humidity
20 to 90% noncondensing
Certifications
CE, FCC, IC
