Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - ANZ/Fiji/PNG/NZ

IMG 1 of 14
Our Price:
$436.45
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
558947
(?) Brand:
Lenovo Web Site
Manuf No:
40BE0135AU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
40BE0135AU

ThinkPad Thunderbolt 4 Smart Dock Gen27500 -ANZ/Fiji/PNG/NZ


Feature
Product Description
New Generation ThinkPad Thunderbolt 4 Smart Dock; The ThinkPad Thunderbolt 4 Smart Dock Gen 2 7500 is a refresh of its Thunderbolt 4 Smart Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed, and new generation cloud-based management console powered by AWS for IT managers.

Top Features
  • The ThinkPad Thunderbolt 4 Smart Dock 7500 with up to 40 Gbps bandwidth, you can have one Ultra-High Resolution 8K 60Hz Displays or two 4K 144Hz High Refresh Rate monitors setup, to fully extend your laptop to a powerful work platform with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 100W to give a fast-charge to your laptop, you can drastically expand the potential of your workspace with ease.
  • Universal Dock Compatibility a cross different Operating System.
  • With Lenovo Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease.

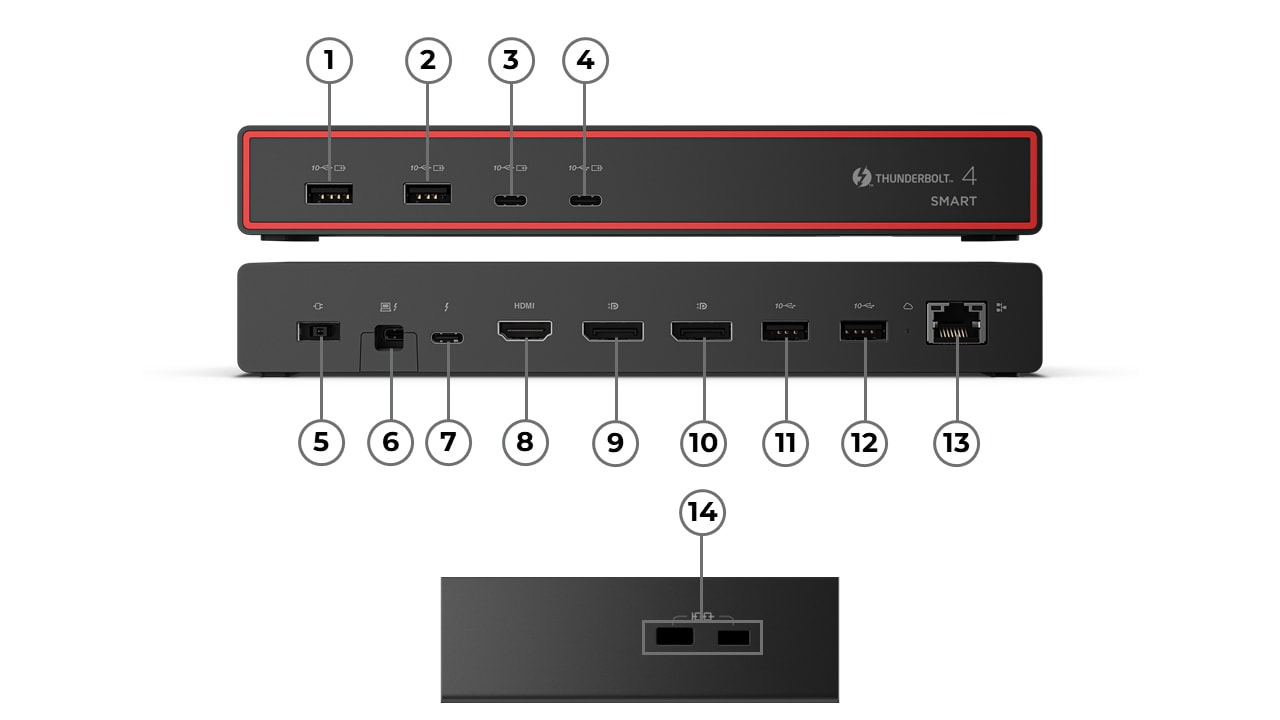

1.
USB-A 3.2 Gen 2 (always on)
8.
HDMI
2.
USB-A 3.2 Gen 2 (always on)
9.
DisplayPort
3.
USB-C 3.2 Gen 2 (always on)
10.
DisplayPort
4.
USB-C 3.2 Gen 2 (always on)
11.
USB-A 3.2 Gen 2
5.
Power Connector
12.
USB-A 3.2 Gen 2
6.
Thunderbolt - for Host connect
13.
Gigabit Ethernet
7.
Thunderbolt 4
14.
2x Security lock slot

Tech Specs
Agency Approvals
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Thunderbolt Cert.
EVO
EAN
0195892121350
JAN
4582764426884
UPC
195892121350
Smart Find Visibility
Yes
Warranty Type
CRU
Warranty Period
3 Year
Maximum Relative Humidity (%)
95% (no Condensation)
Minimum Relative Humidity (%)
20%
Maximum Operating Temperature
40
Minimum Operating Temperature
0
Packed Weight
1261.5 g (2.78 lbs)
Packed Dimensions (L x D x H)
237.8 mm x 141 mm x 75.8 mm (9.36 inches x 5.55 inches x 2.98 inches)
Package Type
Brown Box
Shipment Group
1 x ThinkPad Thunderbolt 4 Smart Dock Gen2
1 x Power Adaptor
1 x Power Cord
3 x Documentation
Product Weight
547.5 g (1.21 lbs)
Height
30 mm (1.18 inch)
Depth
80 mm (3.15 inch)
Length
220 mm (8.66 inch)
Thunderbolt Port
1
Color
Eclipse Black
Power Plug
Yes
Power Button
Yes
Output Power
100W
Power Delivery
PD 3.1
Input Power
135W
Charging Port
USB-C
Maximum Resolution/Refresh Rate
8K / 60Hz
Max Number of External Monitors
4
Physical Security Feature
MicroSaver Lock
NanoSaver Lock
Ethernet
2.5Gbps
USB Ports
Front:
2 x USB-A 3.2 Gen2 (2 x AOU 12W)
2 x USB-C3.2 Gen2 (2 x AOU 15W)
Back:
2 x USB-A 3.2 Gen2 5W
1 x TBT 4 Full Function 15W
Video Ports
2 x DP 1.4
1 x HDMI 2.1
1 x TBT 4 Full Function
Supported OS
Windows
macOS
Linux
Brand
ThinkPad
Part Numbers
Marketing Sales Part Numbers
Description
40BE0135AE
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -EU/AP
40BE0135AR
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - Argentina
40BE0135BR
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500- Brazil
40BE0135CH
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -Switzerland
40BE0135CN
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -China
40BE0135DK
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500- Denmark
40BE0135EU
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -EU/INA/VIE/ROK
40BE0135IN
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -India
40BE0135IS
ThinkPad Thunderbolt 4 Smart Dock Gen27500 - Israel
40BE0135IT
ThinkPad Thunderbolt 4 Smart Dock Gen27500 - Italy/Chile
40BE0135JP
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - Japan
40BE0135SA
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 -RSA
40BE0135TH
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -Thailand
40BE0135TW
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -TW/THA/PHI
40BE0135UK
ThinkPad Thunderbolt 4 Smart Dock Gen27500 -UK/HK/SGP/MYS/SRI
40BE0135US
ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - US


Compatibility

Operating System

OS Independent

Compatible Machines

DescriptionMTFootnote
IdeaPad Pro 5 14AGP11
83SG
IdeaPad Slim 5 14AGP11
83S1P1. PXE boot supported
IdeaPad Slim 5 14IPH11
83S5P1. PXE boot supported
IdeaPad Slim 5 16AGP11
83S2P1. PXE boot supported
IdeaPad Slim 5 16IPH11
83S6P1. PXE boot supported
ThinkPad P14s Gen 5 (AMD)
21MEP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21MFP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Gen 5 (AMD)
21MCP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21MDP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Gen 5 (Intel)
21MLP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21MMP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Gen 6 (AMD)
21QJP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21QKP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Gen 6 (Intel)
21QCP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21QDP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14s Gen 5
21LSP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21LTP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14s Gen 6 (Intel)
21QXP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21QYP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21R1P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21R2P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T16 Gen 3
21MNP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21MQP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T16 Gen 4 (AMD)
21QNP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21QQP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T16 Gen 4 (Intel)
21QEP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21QFP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 2-in-1 Gen 10 Aura Edition
21NUP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21NVP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 2-in-1 Gen 9
21KEP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21KFP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 Carbon Gen 12
21KCP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21KDP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 Carbon Gen 13 Aura Edition
21NSP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21NTP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 2-in-1 Gen 5
21LWP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21LXP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 Gen 5
21LUP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21LVP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 Gen 6 (Intel)
21RKP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
21RLP1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through
IdeaPad S500 Series - IdeaPad Pro 5 14IPH1183SHP1. PXE boot supported
IdeaPad S500 Series - IdeaPad Slim 5 14AHP1183S3P1. PXE boot supported
IdeaPad S500 Series - IdeaPad Slim 5 16AHP1183S4P1. PXE boot supported
Yoga C700 Series - Yoga 7 2-in-1 14IPH1183TCP1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode
Yoga C700 Series - Yoga 7 2-in-1 16IPH1183TEP1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode
