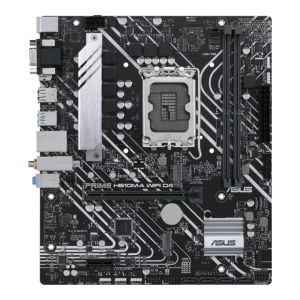

ASUS H610M-A WIFI D4-CSM PRIME Motherboard
  • mATX, LGA1700, Intel H610, 2xDDR4 64GB, PCIe 4.0 x16, 2xM.2, 4xSATA, Wi-Fi 5, 1GbE

IMG 1 of 4
Our Price:
$166.30
RRP:
$189.00
You Save:
$22.70
or quickly purchase this product
Backorder
Part Number:
559748
(?) Brand:
ASUS Web Site
Manuf No:
PRIME H610M-A WIFI D4-CSM
PRIME H610MA WIFI D4CSM
Shipping Weight:
1.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
PRIME H610MA WIFI D4CSM, PRIME H610M-A WIFI D4-CSM, MBAH610MAPRIWFD4CSM, MBA-H610M-A-PRIWFD4-CSM
ASUS H610M-A WIFI D4-CSM PRIME mATX, LGA1700, Intel H610, 2xDDR4 64GB, PCIe 4.0 x16, 2xM.2, 4xSATA, Wi-Fi 5, 1GbE

Intel LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel processors
Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Control Center Express (ACCE) for easier IT endpoint management

SPECIFICATION

Model
PRIME H610M-A WIFI D4-CSM

CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics
1 x DisplayPort**
1 x D-Sub port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel 1Gb Ethernet

Wireless & Bluetooth
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0

USB
Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub port
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 11 64-bit, Windows 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
