All stock codes associated to this product
6818910, JCD3196

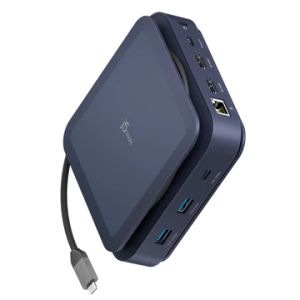

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI outputs, USB ports, Gigabit Ethernet, SD/microSD card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook or other USB-C compatible laptops to a 4K monitor or TV.
With USB Power Delivery 3.1 it'll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C power adapter even if your laptop only has one USB-C port. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C ports location.
Through a single USB-C (Thunderbolt 3, 4, and USB4 compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
- Supports dual 4K HDMI (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host.
- Two USB 10Gbps and two USB 5Gbps ports for connecting peripherals
- Reliable network connectivity via the Gigabit Ethernet
- Includes SD/microSD card reader
- Cable storage compartment
- Security lock
| Hardware |
|---|
host connector 1 - USB-C Male (PD 3.1 130W, 28V / 4.65A) ports 1 - USB-C PD-in PD3.1 140W (28V/5A)
2 - USB-C 5Gbps & 10Gbps
2 - USB Type-A 5Gbps & 10Gbps
1 - Combo 3.5mm Audio Jack
1 - HDMI (USB display max resolution 4K@30Hz)
1 - HDMI (DP-Alt max resolution 4K@60Hz)
1 - RJ45 Gigabit Ethernet
1 - SD/microSD 3.0 power source Bus-powered or self-powered |
| Performance |
|---|
audio channel 2.1 via HDMI compatible networks 10/100/1000 Mbps |
| Power |
|---|
output current Up to 4.65A power delivery Up to 140W via USB-C |
| Physical Specifications |
|---|
cable length 2.28 ft (69.5 cm) operating humidity < 85% non-condensing operating temperature 30 to 116F (-1 to 41C) product depth Body: 5.12 in. (130 mm)
Holder: 3.15 in. (80 mm) product height Body: 1.71 in. (43.5 mm)
Holder: 1.3 in. (33 mm) product weight Body: 14.7 oz (416 g)
Holder: 0.8 oz (22 g) product width Body: 5.12 in. (130 mm)
Holder: 5.12 in. (130 mm) storage humidity < 85% non-condensing storage temperature 0 to 155F (-17 to 68C) |
| Package Contents |
|---|
- 1 - JCD3196 Type-C Dock Dual 4K HDMI
- 1 - Dock Holder
- 1 - Quick Installation Guide (QIG)
|
