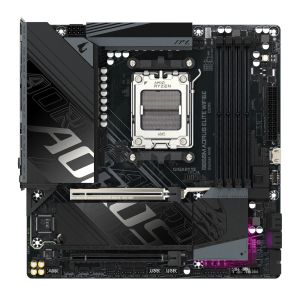

Gigabyte B850M A ELT WF6E, AM5 board with B850 chipset, DDR5 256GB, 16x PCIe5, dual M.2, 2.5GbE, Wi-Fi 6E, DP, rich USB SATA, 7.1 audio support

IMG 1 of 4
Our Price:
$396.70
RRP:
$421.74
You Save:
$25.04
or quickly purchase this product
Backorder
Part Number:
562212
(?) Brand:
Gigabyte Web Site
Manuf No:
B850M AORUS ELITE WIFI6E
Shipping Weight:
1.78 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
B850M AORUS ELITE WIFI6E, MBGB850MAELTWF6E, MBG-B850MAELTWF6E
Gigabyte B850M A ELT WF6E, AM5 board with B850 chipset, DDR5 256GB, 16x PCIe5, dual M.2, 2.5GbE, Wi-Fi 6E, DP, rich USB SATA, 7.1 audio support

CPU
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/
AMD Ryzen 8000 Series Processors/
AMD Ryzen 7000 Series Processors

Chipset
AMD B850

Memory
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC (Only for rev. 1.0)
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Realtek ALC1220 CODEC (Only for rev. 1.1)
* The back panel line out jack supports DSD audio.

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
 AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
 AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
 AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
 AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
