ASUS PRIME B860M-A WIFI-CSM MB B860M, 4x DDR5, 1x PCI-E 5.0 x16, 2x M.2, 4x SATA3, WiFi

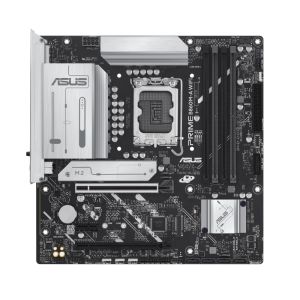

IMG 1 of 4
Our Price:
$303.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
562600
(?) Brand:
ASUS Web Site
Manuf No:
PRIME-B860M-A-WIFI-CSM
PRIMEB860MAWIFICSM
Shipping Weight:
1.37 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PRIMEB860MAWIFICSM, PRIME-B860M-A-WIFI-CSM

PRIME B860M-A WIFI-CSM

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.



Specifications
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
ChipsetIntel B860 Chipset
Form Factormicro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
I/O Connectors1 x USB 20Gbps port (1 x USB Type-C), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A ), 2 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks
Integrated CPU Graphics2 x DisplayPort, 1 x HDMI port
LAN1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
PCI SlotsIntel Core Ultra Processors(series 2): 1 x PCIe 5.0 x16 slot; Intel B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Processor SupportSupport Intel Core Ultra Processors (Series 2)
RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10
RAM Type/Bus/Max4 x DIMM slots, max. 256GB, DDR5, Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII)
SocketLGA1851
Storage InterfaceTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors (Series 2)L M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); IntelB860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), 4 x SATA 6Gb/s ports
Warranty3 years
Weight1kg
Wireless & BluetoothWi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth v5.3

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
