Ubiquiti Retrofit Reader, Indoor/Outdoor OSDP Reader, NFC Card, Touch Pass Support, Compatible With UniFi Retrofit Hub Existing Cabling.

IMG 1 of 1
Our Price:
$431.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
563627
(?) Brand:
Ubiquiti
Manuf No:
UA-Retrofit-Reader-W
UARetrofitReaderW
Shipping Weight:
0.08 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
810177161684, NHUUARETROFITREADERW, NHU-UA-RETROFIT-READER-W, UARetrofitReaderW, UA-Retrofit-Reader-W


Retrofit Reader - White

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.

Touch Pass Support: Apple Wallet, Google Wallet
NFC Card & Keyfob Access
UniFi Identity Mobile Access
IP55 rain resistance (-30 to 45 C)
Power Method: 12V DC

Modern Access Control, Simplified

The Ubiquiti Retrofit Reader delivers modern, secure access control using your existing infrastructure. Designed for seamless integration with the UniFi Retrofit Hub, it supports NFC cards and Touch Pass, providing a flexible, future-ready solution for upgrading legacy systems.

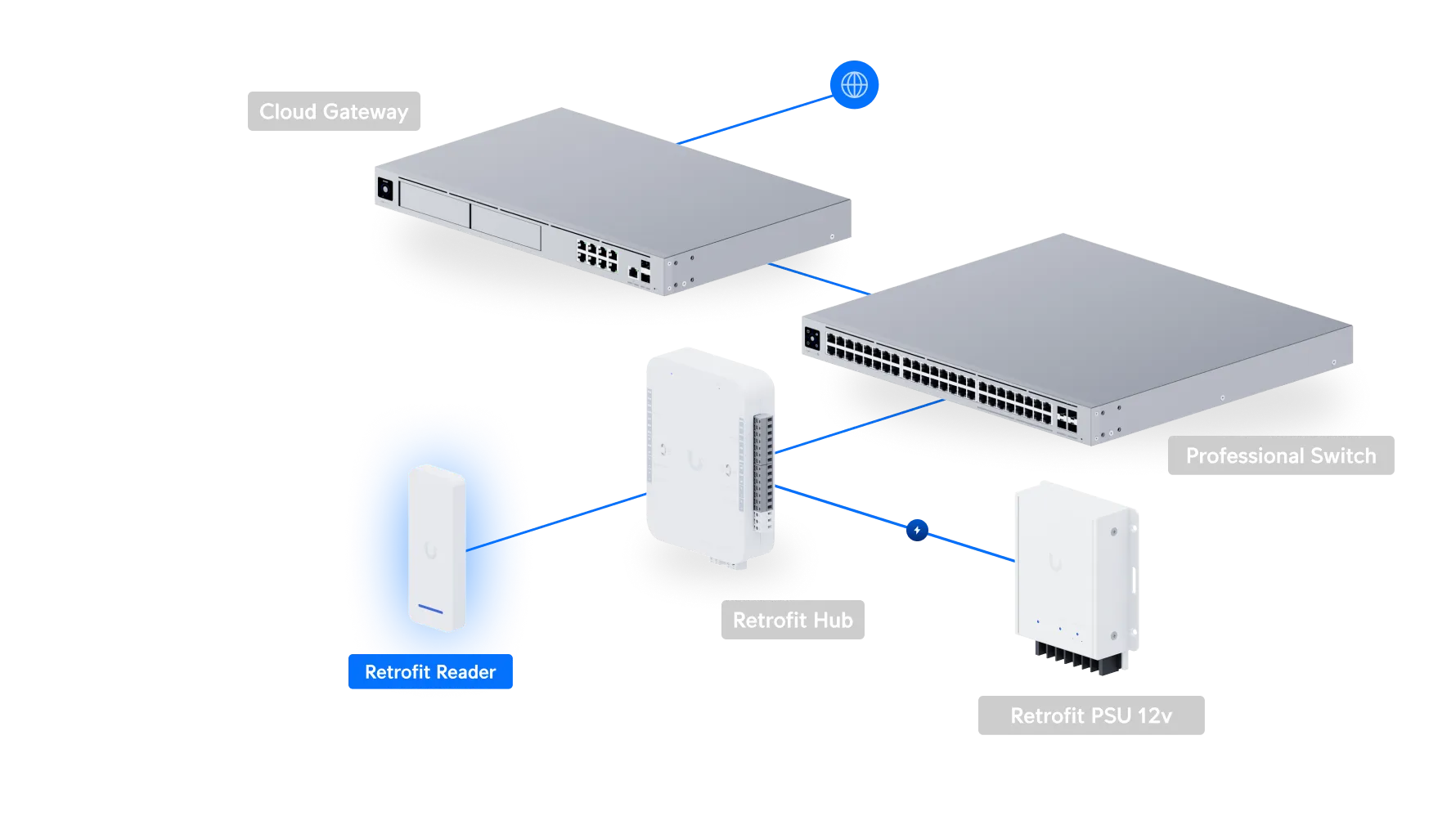

Deployment & Features

Technical Specs
Overview
Dimensions
117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")
Colour
White
NFC Card & Keyfob Access
Yes
Apple/Google Wallet
Yes
Mobile Unlock
Yes
Weatherproofing
IP55
NDAA Compliant
Yes
Mechanical
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, aluminium alloy
Mount Material
Stainless steel
Mounting

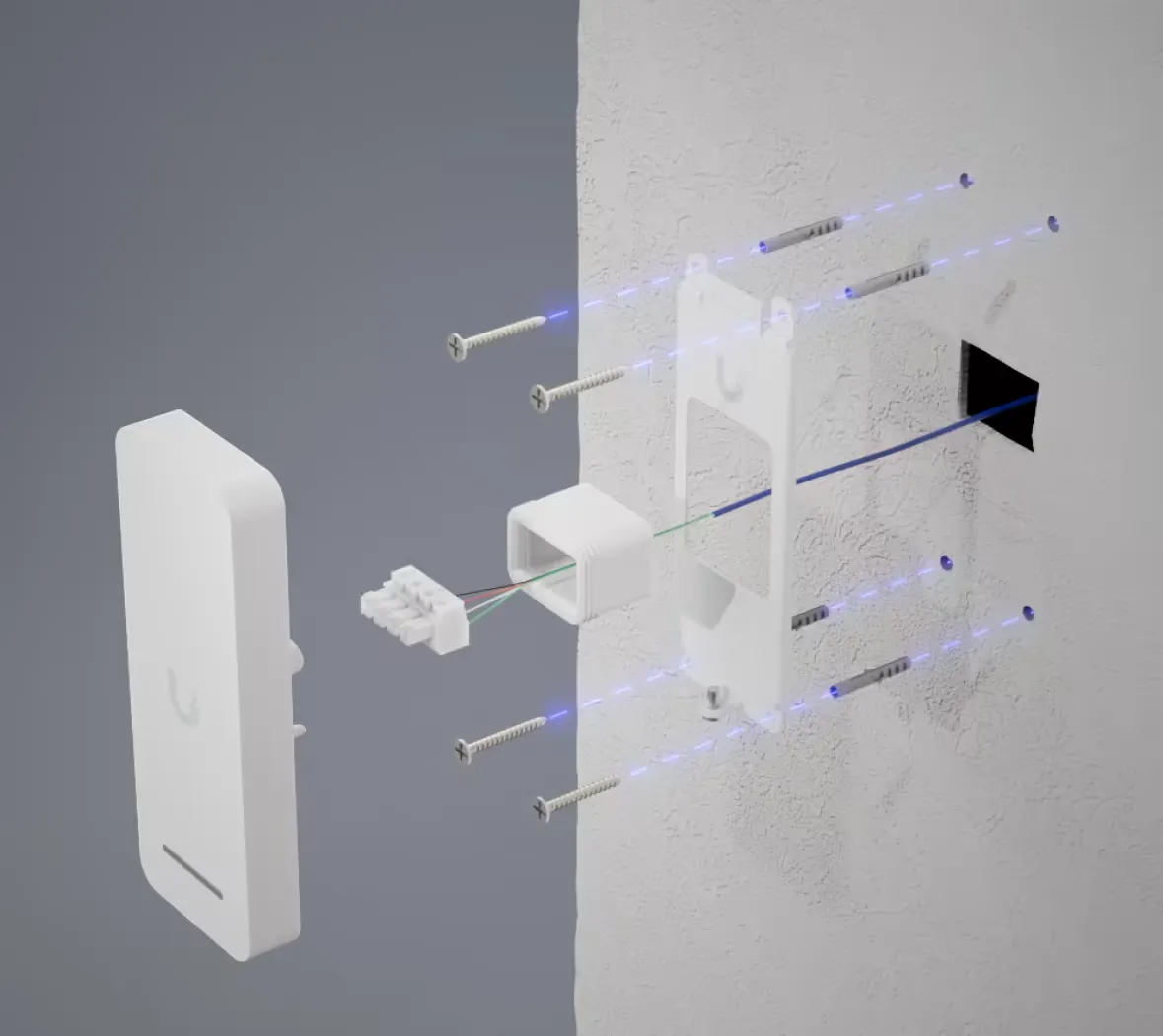

Wall, gang-box mount (Included)
Junction box (Sold separately)
Hardware
Indoor and Outdoor Use
Yes
Connectivity
RS-485
BLE 4.1
NFC
Security
OSDP v2
Power Method
DC 12 V
Max. Power Consumption
2.5 W
Supported Voltage Range
12 V DC
ESD/EMP Protection
Air: 15 kV, contact: 8 kV
Speaker
Yes, 1x 0.7W
LEDs
R / G / B / W
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO 14443A, 14443B, 15693
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50 C
(-22 to 122 F)
Ambient Operating Humidity
5 to 90% noncondensing
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com






No additional files, specification sheets, guides or documentation found for product.
