IMG 1 of 3
Our Price:
$135.95
or quickly purchase this product
Backorder

Part Number:
564574
(?) Brand:
Manuf No:
USL-Motion
USLMotion
Shipping Weight:
0.04 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
NHUUSLMOTION, NHU-USL-MOTION, USLMotion, USL-Motion


Motion Sensor

SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life.

93.5 x 22.5 x 24.7mm with wall mount
SuperLink (Proprietary)

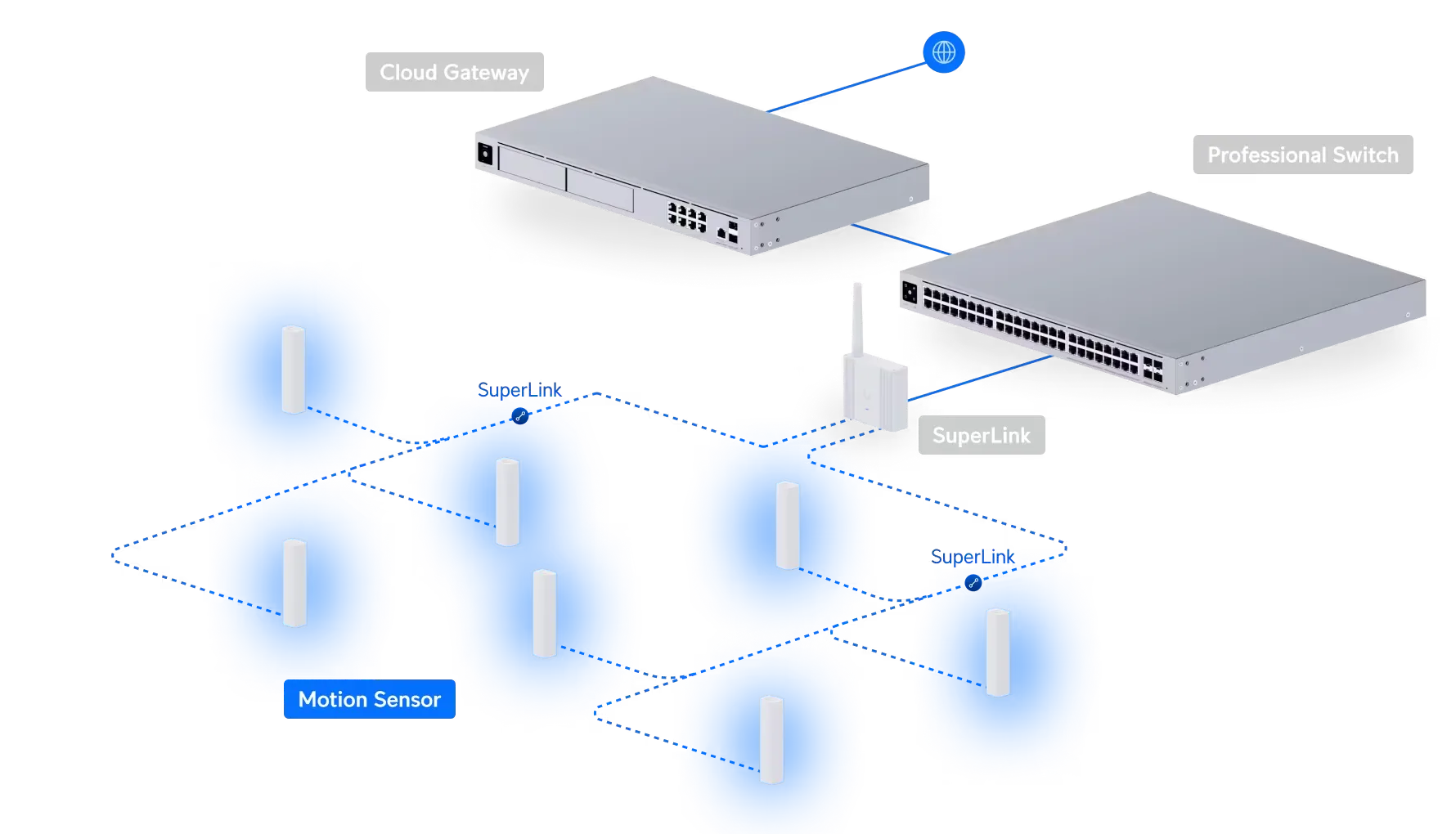

Industrial Sensing with SuperLink

With the introduction of SuperLink, Ubiquiti are bringing a new standard of long-range, low-latency, and scalable IoT connectivity to UniFi. SuperLink is designed to meet the needs of both residential and commercial applications, with seamless integration into the UniFi OS ecosystem.

Why SuperLink?

Todays IoT environments require a balance of range, reliability, and efficiency. SuperLink is engineered to deliver multi-kilometer range, ultra-low latency, efficient power management, seamless software updates and robust security.

Frequently Asked Questions

What is SuperLink and how does it compare to the existing BLE interface?

SuperLink is an optimised wireless protocol designed for low-latency, long-range communication with software update management enhancements. Unlike the existing BLE devices, SuperLink endpoint devices offer superior range and power efficiency while minimizing delays, making it ideal for security, automation, and industrial applications.

Can I use existing UniFi Protect BLE sensors with SuperLink?

Yes, the SuperLink Gateway includes integrated long-range Bluetooth LE support, allowing full compatibility with existing UniFi Protect BLE sensors. Long-range BLE coverage is comparable to WiFi coverage.

What types of devices will be available on SuperLink?

Our SuperLink sensor family will include motion sensors, environmental monitors, door/window sensors, air quality sensors, water leak detectors, and more. Additional device categories will be introduced based on user demand.

Is SuperLink secure?

Absolutely. SuperLink implements end-to-end encryption, authentication, and secure OTA updates. It benefits from the robust security infrastructure of UniFi OS, ensuring robust protection for all deployments.

How do I set up SuperLink?

Will SuperLink require a UniFi OS Console to operate?

Yes, SuperLink is managed through UniFi OS, ensuring tight integration with UniFi Protect and future IoT applications.

Deployment & Features

Technical Specs
Overview

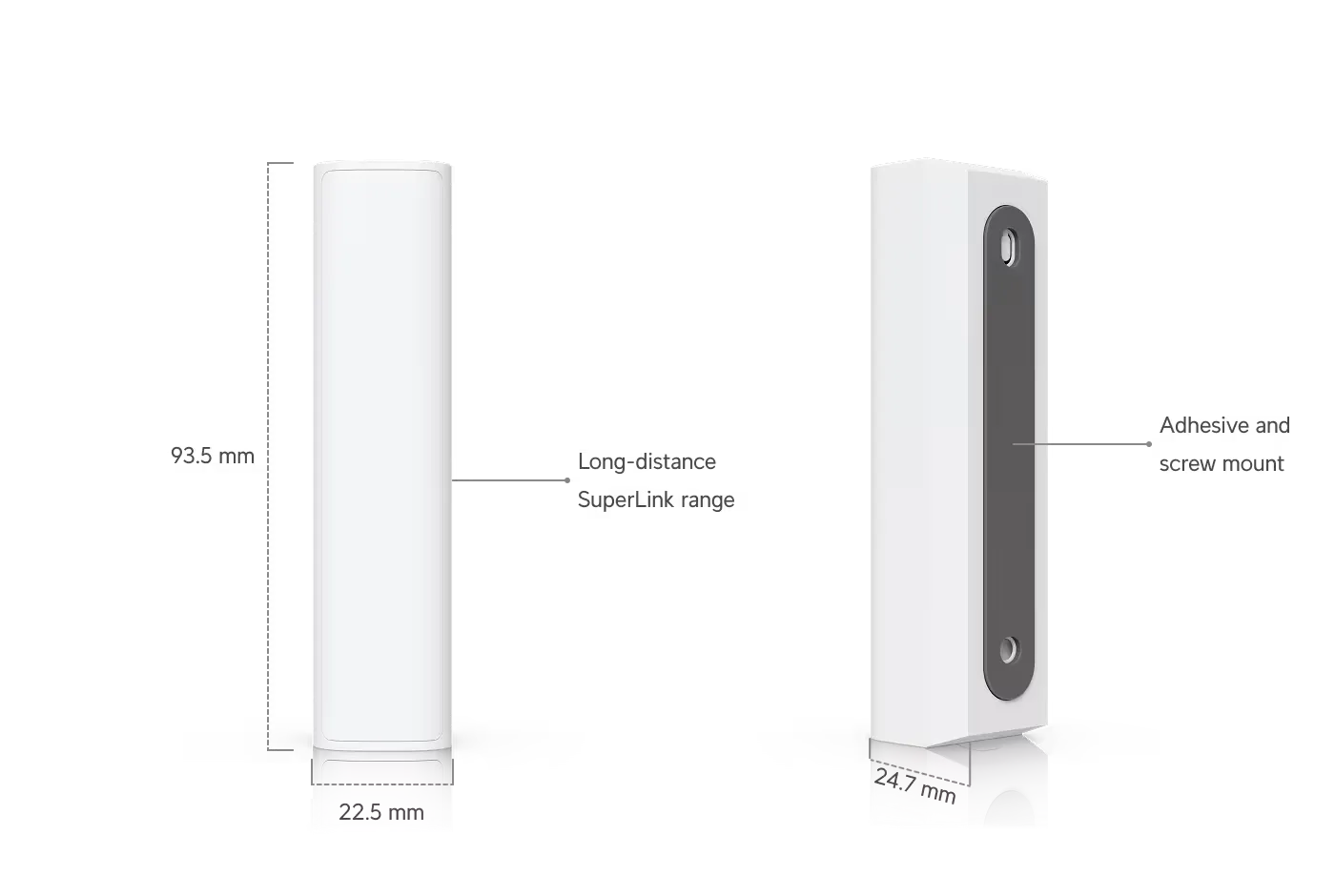

Dimensions
Device with wall mount: 93.5 x 22.5 x 24.7 mm
Device with corner mount: 93.5 x 22.5 x 27.9 mm

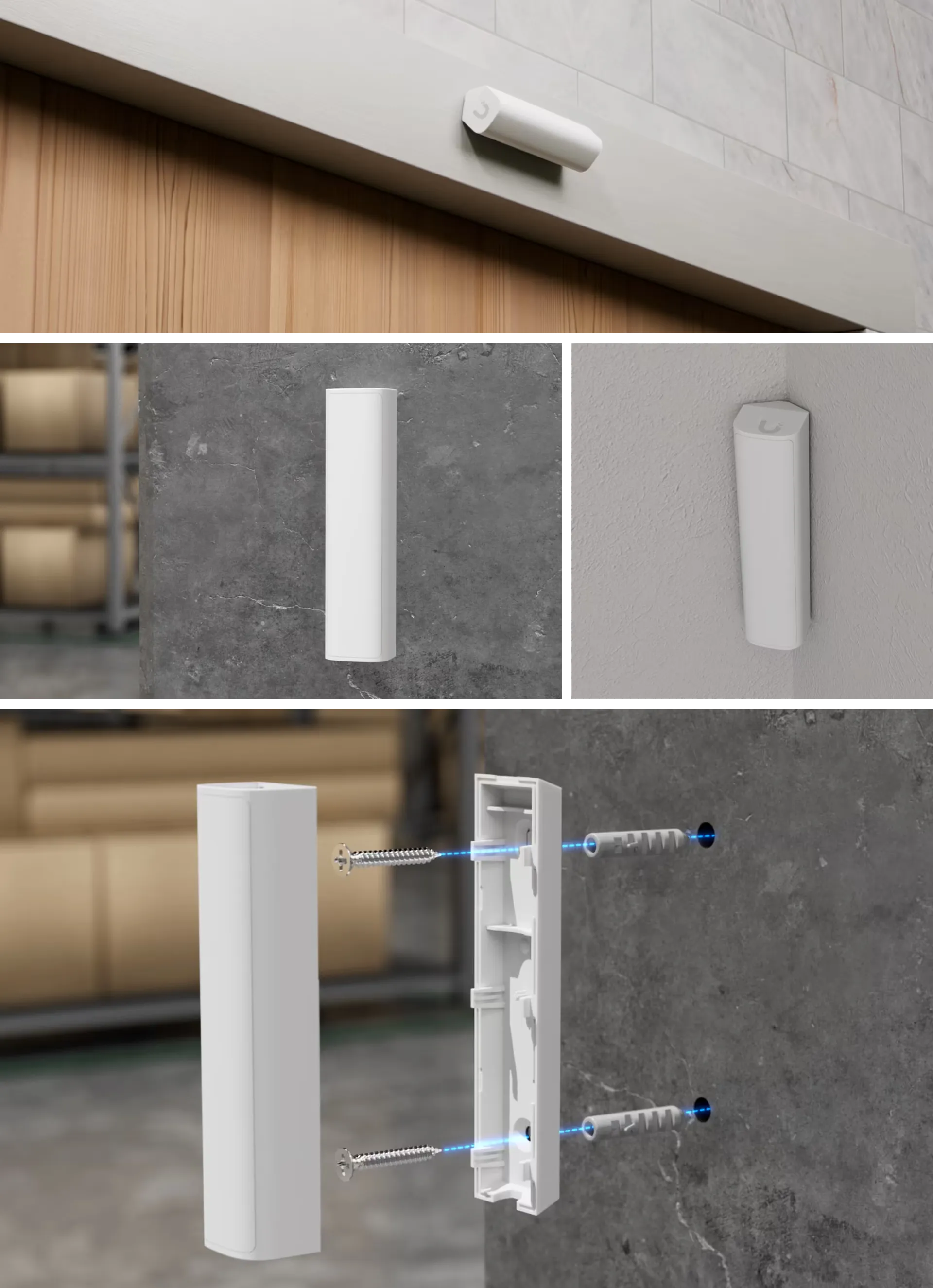

Mounting
Adhesive and screw mount
UniFi Application Suite
Protect
Performance
Connectivity
SuperLink (Proprietary)
Operating Frequency
US: 915.6-927.6 MHz
EU: 865.1-869.5 MHz
Antenna Gain
SuperLink: 1 dBi
Max. TX Power
SuperLink: 14 dBm
Max. Range
SuperLink: 2 km (1.2 mi)
Sensor Features
Horizontal PIR Sensor: Detection range up to 1.5 m (4.9 ft)
Vertical PIR Sensor: Detection range up to 6 m (19.7 ft) with pet immunity
Hardware
Max. Power Consumption
22.6mW
Supported Voltage Range
3 V
Power Method
Lithium battery CR123A
Battery Life
Up to 6 years
Weight
45 g (1.6 oz)
Enclosure Material
Polycarbonate, high-density polyethylene (HDPE)
Mount Material
Polycarbonate

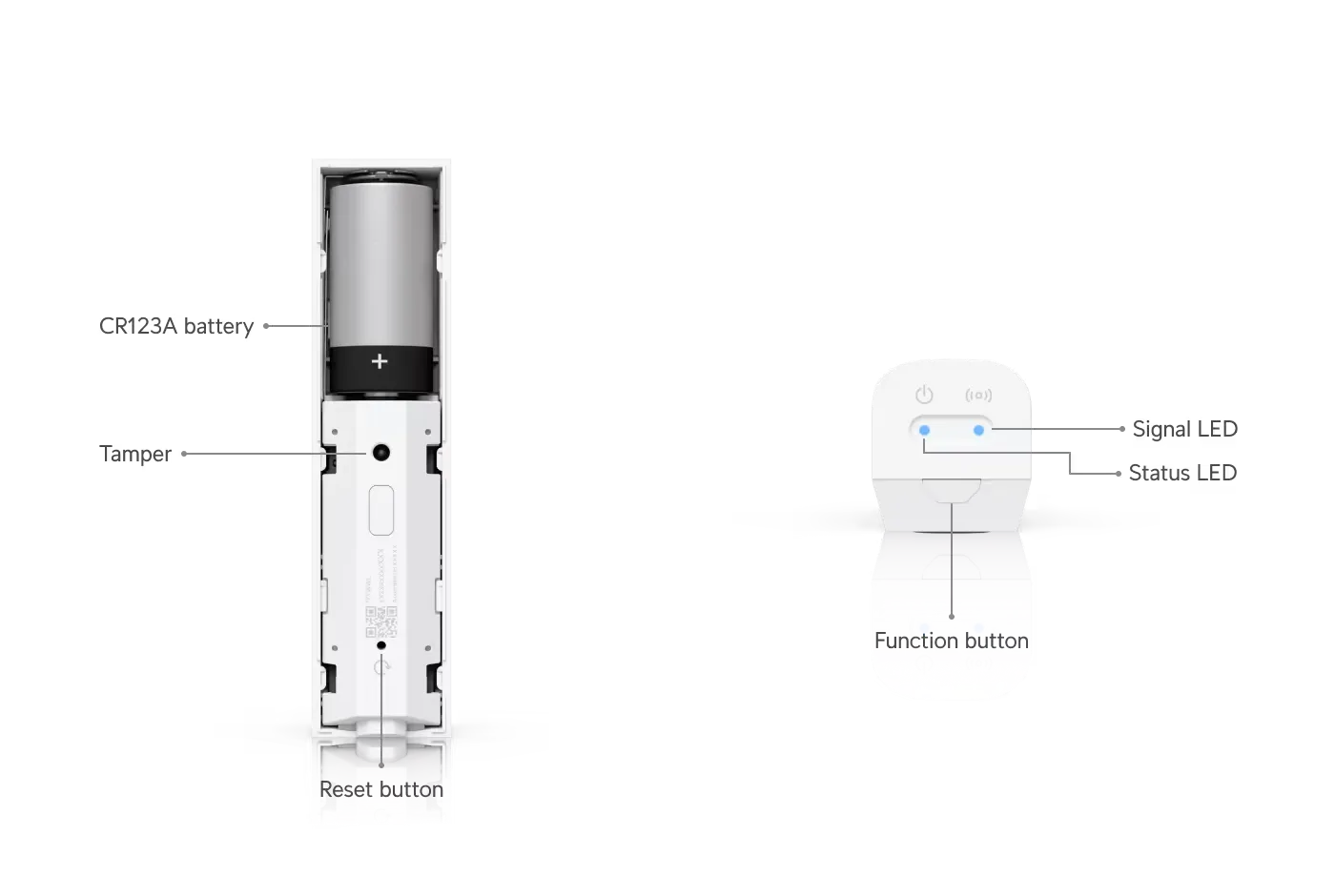

Buttons
(1) Factory-reset
(1) Function button
(1) Tamper switch
LEDs
(1) Status: R/B/W
(1) Signal: B/R
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
NDAA Compliant
Yes
Software
Application Requirements
Web Application: UniFi Protect
Mobile App: UniFi Protect iOS and Android

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
