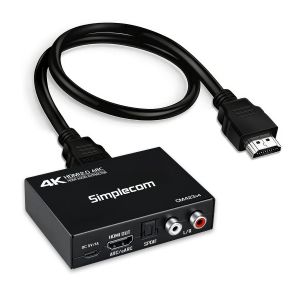

Simplecom CM423v4 HDMI 2.0 Audio Extractor Dual-Mode with ARC/eARC Optical SPDIF 2RCA 3.5mm Stereo 4K@60Hz

IMG 1 of 1
Our Price:
$27.50
RRP:
$44.95
You Save:
$17.45
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
566920
(?) Brand:
Simplecom
Manuf No:
CM423v4
Shipping Weight:
0.24 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
9350414004240, CBSICM423V4, CBSI-CM423V4, CM423v4
Simplecom CM423v4 HDMI 2.0 Audio Extractor Dual-Mode with ARC/eARC Optical SPDIF 2RCA 3.5mm Stereo 4K@60Hz

This HDMI 2.0 Audio Extractor is designed to deliver flexible, high-quality audio extraction for a wide range of AV setups. Fully compliant with the HDMI 2.0b standard, it supports up to 18Gbps bandwidth and resolutions up to 4K@60Hz, making it an ideal solution for outputting audio to an external speaker system with analog or optical inputs, especially for audio systems without HDMI inputs.

Featuring dual audio extraction modes, it allows you to extract audio either directly from an HDMI source device or from your TVs ARC/eARC HDMI port. In HDMI input extraction mode, the device passes the HDMI signal through to your display while simultaneously extracting audio. In ARC extraction mode, it enables direct audio extraction from an ARC/eARC-enabled TV for connection to external speakers, soundbars, or audio systems.
The extractor provides both Optical SPDIF and analog stereo outputs, offering flexible connectivity for a wide range of audio equipment. With HDCP 2.2 compliance, it ensures reliable playback of protected content. The device is conveniently powered via USB, making installation simple and efficient.

Features
Compliant with the HDMI 2.0b standard for broad compatibility
Dual audio extraction modes: HDMI input audio extraction or HDMI ARC extraction
Supports 18Gbps bandwidth and HDMI input/output resolution up to 4K@60Hz
Allows HDMI input to be passed through to an HDMI output while using HDMI input audio extraction mode
Enables audio extraction from a TV's ARC/eARC HDMI port when using HDMI ARC extraction mode
Optical SPDIF and analog stereo audio output extracted from HDMI input or ARC
HDCP 2.2 compliant, ensuring compatibility with encrypted media
Powered by USB, USB-C port for power input
Supports compressed audio DTS Digital, Dolby Digital and uncompressed audio PCM, LPCM

Specifications
HDMI Version: HDMI 2.0b (backwards compatible)
HDMI resolution support: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Input: 1x HDMI Input
Audio Outputs: PDIF (Optical), 3.5mm Audio (Analog), 2RCA Audio (Analog)
Video Output: 1x HDMI output (HDMI pass-through)
ARC/eARC Support: Yes (via HDMI OUT)
HDMI 3D Support: Yes
HDCP Version: HDCP 2.2
Max Bandwidth: 600MHz
Max Baud Rate: 18Gbps
Support Color Format: 24bit, 30bit, 36bit deep color
Digital audio Support: Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM
Max Input Cable Distance: 10m AWG26 HDMI standard cable
Max Input Cable Distance: 10m AWG26 HDMI standard cable
Power Input: USB-C (5V/1A)
Dimension: 85 x 61 x 22mm (LxWxH)

Package Contents
1x HDMI Audio Extractor
1x 0.5M HDMI Lead
1x USB Power cable
1x Optical Audio Cable
1x User Manual
