Simplecom SD562 Dual-Bay NVMe/SATA M.2 SSD RAID Enclosure with Offline Clone

IMG 1 of 1
Our Price:
$123.40
RRP:
$149.95
You Save:
$26.55
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
566922
(?) Brand:
Simplecom
Manuf No:
SD562
Shipping Weight:
0.42 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
9350414004271, HXSISD562, HXSI-SD562, SD562

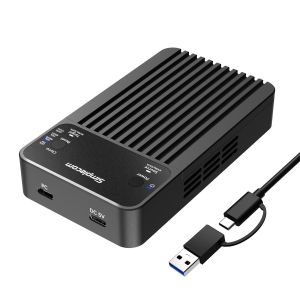

Simplecom SD562 Dual-Bay NVMe/SATA M.2 SSD RAID Enclosure with Offline Clone

SD562 is a high-performance dual-bay M.2 SSD enclosure designed for flexible storage expansion and efficient data management. Supporting both NVMe and SATA M.2 SSDs, it allows users to install two M.2 drives and operate them in multiple modes, including RAID 0, RAID 1, normal partition mode, and clone mode for quick duplication.
It helps manage and protect your data, making it a convenient solution for expanding storage capacity, enhancing data security, or configuring drives to suit different needs.

Convenient and Fast
Featuring a USB 3.2 Gen 2 interface, this enclosure delivers data transfer speeds of up to 10Gbps, making it ideal for handling large files, backups, and system upgrades. The built-in offline cloning mode enables direct drive duplication without the need for a computer, providing a convenient solution for data migration.

Durability and Reliability
Built with a durable aluminium enclosure, it ensures excellent heat dissipation, while the integrated cooling fan helps maintain stable performance during intensive operations. The tool-free design with a magnetic top cover allows for quick and hassle-free installation.

Four Operating and RAID Modes
This enclosure offers various operating modes, including RAID 0, RAID 1, clone and normal partition modes. It provides flexibility in terms of storage configuration or data redundancy needs.
PM (Partition Mode): The enclosure operates as a standard external drive enclosure with no RAID configuration, treating each SSD as an independent drive. Two SSDs will appear as separate drive letters on the computer.
RAID 0: Disk striping mode that divides data into blocks and distributes them across two SSDs. This increases read and write performance, but it is not recommended for storing important data, as failure of one drive will result in total data loss.
RAID 1: Disk mirroring mode that provides data redundancy and fault tolerance by replicating data across two SSDs. This ensures files can be recovered if one drive fails.
CLONE: In this mode, the device operates as a standalone duplicator dock without being connected to a computer, allowing easy cloning of NVMe M.2 SSDs. It is ideal for data backup and migration.

Features
Dual-bay NVMe/SATA M.2 SSD enclosure with 4 operating modes
Supports RAID 0, RAID 1, clone and normal partition modes
Allows simultaneous access to two M.2 SSDs in normal partition mode
USB 3.2 Gen 2 interface with data transfer speeds up to 10Gbps
Supports offline clone mode for standalone duplication without a host computer
Built-in cooling fan effectively reduces operating temperatures
Durable aluminium enclosure with excellent heat dissipation
Tool-free installation with magnetic top cover
Plug and play, no additional driver software required
LED indicators for RAID mode, clone mode and drive activity status

Specifications
Model: SD562
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: Up to 10Gbps
SSD Support: 2x NVMe M.2 or 2x SATA M.2 SSDs (NVMe and SATA M.2 cannot be used simultaneously)
SSD Size Support: 2230 / 2242 / 2260 (Source Slot only) / 2280
Operating Modes: RAID 0, RAID 1, Clone, normal Partition Mode
Cooling Fan: 20mm radial fan
Main material: Aluminium
Power Input: DC 5V/3A
Dimensions: 120x 68 x 22mm (LxWxH)
Weight: 208g (without SSD)
Supported Operating Systems: Windows 7 or later, macOS 10.8 or later

Package Contents
1x SD562 Dual-Bay M.2 SSD Enclosure
1x USB-C and USB-A Combo Cable
1x Power Adapter
2x Silicone thermal pads
2x Aluminium thermal pads
1x User Manual

Important Notes
Only supports reading or cloning two SSDs with the same protocol (two M.2 NVMe SSDs or two M.2 SATA SSDs). NVMe and SATA M.2 SSDs cannot be used simultaneously in any of the four modes.
Switching modes will format both SSDs. Please back up important data before switching modes to avoid data loss.
