All stock codes associated to this product
V11HA33953BU
Take Image Quality to New Levels with Epson's Game Changing Laser Projector
- 8,500-lumen brightnessSharp images and vivid colours, even in well-lit rooms
- WUXGA resolutionSharp 4K enhancement images for excellent clarity
- Cross-platform lens compatibilityLets you build the optimal projection solution for every requirement
- Fit-and-forget reliabilityEnhanced dust resistant construction - IP5X certified
- Large imageScalable display size of up to 1,000 inches
- 2,500,000:1 Contrast ratioFor lifelike images and remarkable detail in dark scenes
- NEW Up to 8,500 lumens deliver captivating images in virtually any venue
- Laser light source experience astonishing quality and reliability
- Up to 3x brighter colours, and reliable performance1 3LCD, 3-chip technology
- 2,500,000:1 contrast ratio for lifelike images and remarkable detail in dark scenes
- 4K enhancement go beyond high definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
- NEW High dynamic range faithfully reproduce HDR content for an exceptional visual performance
- NEW Gamma correction automatically adjusts the image based on scene images frame by frame for optimum contrast
- NEW NFC feature & NEW Epson Configuration Tool App collect essential projector information by simply tapping a mobile phone on the back of projector
- NEW High-performance options external high capacity air filter ELPAF63 and light weight ceiling mount ELPMB67 and extension pole ELPFP15
- NEW External camera ELPEC01 automatically calibrates images with the Epson Professional Tool software
- NEW Art-net support synchronise image brightness with the stage and theatre lighting effects
- Professional tool efficiently setup multiple projectors straight out of the box with new large venue application software
- Colour uniformity keep images consistent and maintenance to a minimum with automatic colour correction (automatic calibration is supported only with ELPEC01)
- Edge blending combine multiple individual images to create one seamless giant image
- Wireless LAN Enterprise Security connect projectors in a secure wireless network environment
- HDBaseT transmit full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100 m
- 360 installation install on any plane, from horizontal to vertical and everything in-between
- Powered lens shift, zoom and focus project perfectly uniform images with a new stepping motor and store up to 10 lens settings
- Eleven optional lenses2 choose the ideal powered lens for your venue from a wide range including ultra-short throw and long throw
- Content playback create engaging digital experiences with Epson content management software and playback contents saved on USB drive
- 5 year projector warranty3 A class leading 20,000 hour or 5 year warranty
3x Brighter Colours with Epson Projectors1
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors1. All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
Laser Light Source
Experience astonishing quality and reliability with Epsons new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations.
NEW Up to 8,500 lumens
Powered by 3LCD technology and Epsons laser optical engine, the EB-PU1008W is capable of producing white light and colour light output of up to 8,500 lumens in WUXGA resolution, delivering captivating images in virtually any venue.
The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level.

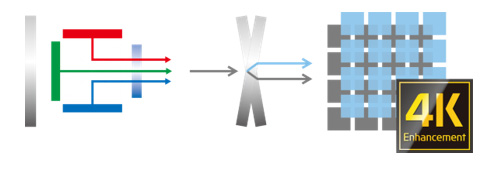

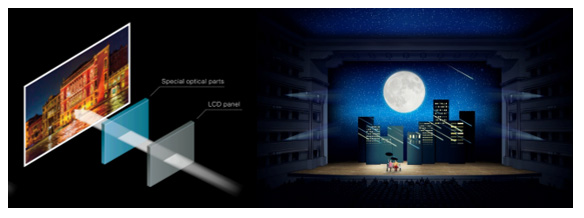

4K enhancement
The EB-PU1008W delivers high-precision images with 4K Enhancement (4KE) technology. Upscale 1080p content with 4KE, which shifts pixels diagonally by 0.5 pixels to double the resolution, for crisp and high-definition images.
Deep black contrast
The EB-PU1008W delivers deep black contrast ratios up to 2,500,000:1. With Epsons innovative laser light source, you get remarkably high contrast levels during full-black scenes. A special optical device is used to adjust polarization and reproduce truly dark shades of black for projection venues that require the most deep black such as theatres.

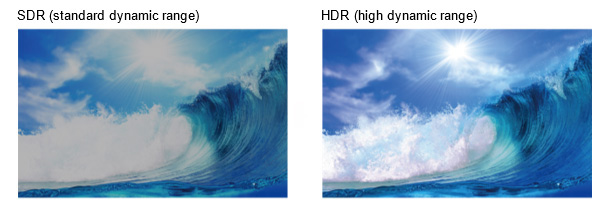

NEW High Dynamic Range
The EB-PU1008W supports HDR10 and Hybrid Log-Gamma, which expands dynamic range for image output across a broad tonal range and minimises washed-out highlights or excessive shadow in dark areas.
NEW Scene adaptive gamma correction
Gamma level is adjusted automatically according to the content image frame-by-frame, projecting the optimum contrast level. By controlling crushed blacks in dark scenes and clipped whites in bright scenes, images can be displayed in the most natural and life-like manner.
ADVANCED INSTALLATION FEATURES

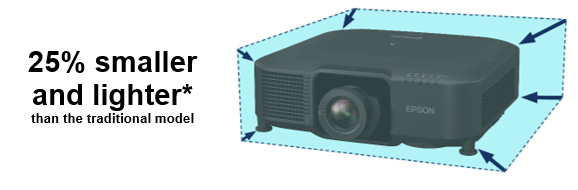

Powerful and compact
The EB-PU1008W can deliver up to 8,500 lumens of brightness in a compact size2. Approximately 25% smaller and lighter than Epsons L series projectors, transporting and setup process has become much easier, and loading weight has become much lighter when projectors get shipped to shows and events.

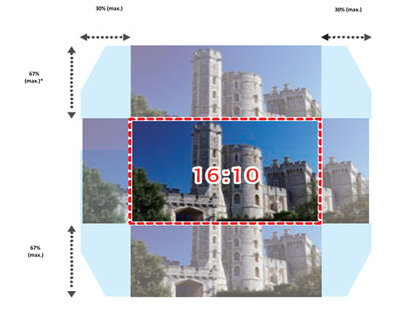

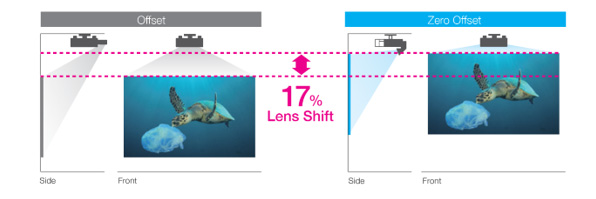

Powered lens shift, zoom and focus
The motorised lens shift3 covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.
Multi-directional projection
The EB-PU1008W can be rotated 360 in any direction horizontally, vertically and diagonally ideal for a wide range of applications, such as ceiling or floor projection.
Lens position memory
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

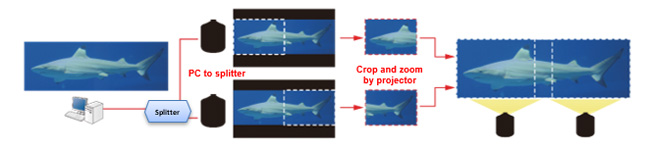

Scaling
Make the most of the image contents native aspect ratio using a scaling feature built-in to the EB-PU1008W. Without requiring a supercomputer, source content from a splitter output can be recombined automatically using the scaling feature of two projectors.
NEW Art-Net lighting control system
The EB-PU1008W supports Art-Net lighting control systems, making the projector ideal for use in live performances in stage or theatre. Control the projector with an Art-Net compatible lighting desk or control system to synchronise with in-house lighting effects. Image brightness can be controlled as low as 8% to the maximum 100%, giving ultimate fade-in and fade-out effects for stage and theatre shows and performances.
Incredible HDBaseT and diverse connectivity
Connect with virtually any system including HDBaseT, SDI, DVI-D, HDMI, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries full HD video, audio, network and control commands up to 100 meters to accommodate large venues. No need for additional cables, signal repeaters or added labour
ADVANCED BUILT-IN FUNCTIONS

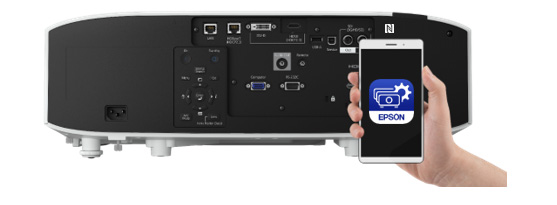

NEW NFC technology

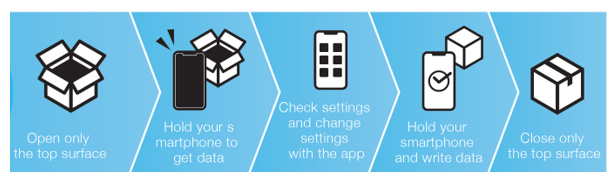

Shorten kitting time with Epson Projector Config Tool App4 & NFC function. Customisation of settings of the EB-PU1008W projector can be done up to 100 units as a batch. Specifically designed for rental and stage, SI and IT managers, the projectors inventory data can be easily checked and collected instantaneously by simply tapping with a mobile phone without having to turn on the projector.

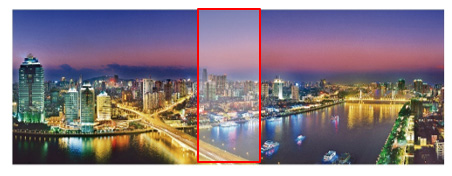

Edge blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

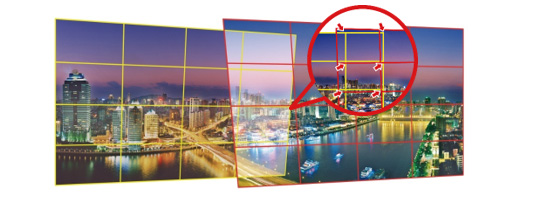

Point correction
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.

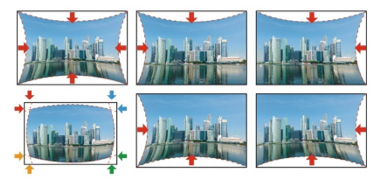

Arc correction
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.
Colour uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.

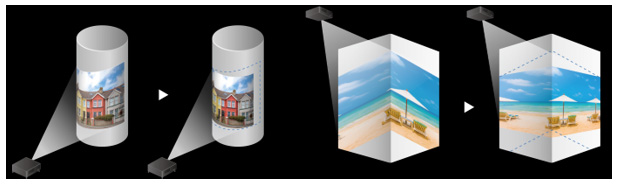

Corner wall and curved surface projection
Quickly and precisely correct any vertical or horizontal image distortion with Epsons curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.
Content playback
The EB-PU1008W projector has an in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epsons dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.
For instant content creation, the Epson Creative Projection App is available on iOS devices.
For scheduling, the Epson Content Management software is available for planning and execution.
ADVANCED INSTALLATION SOFTWARE

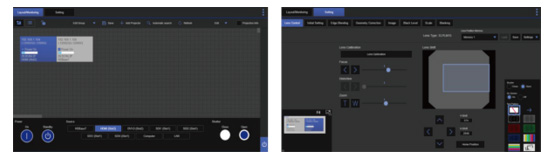

Epson Projector Professional tool
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as colour uniformity calibration, geometry correction, image layout adjustment, lens control and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

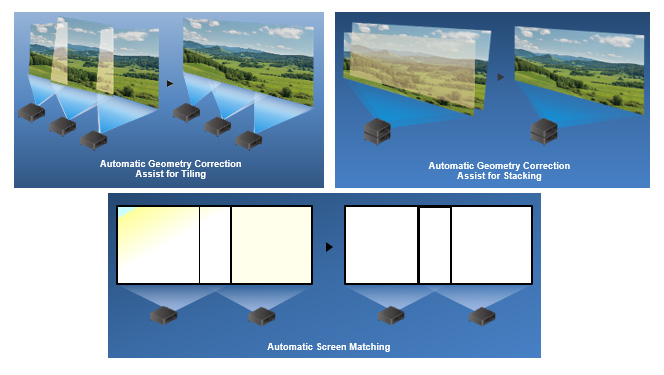

NEW Epson Projector Professional tool x ELPEC01 support
Pair an ELPEC01 external camera with an EB-PU1008W projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.
NEW Epson Projector Config Tool App
Exclusively available with the EB-PU1008W, Epson Projector Config Tool App4 can save time on communication. Powered by NFC technology, projector information can be imported, exported for kitting preparation and confirmation. Installers, SI specialist, end customer, service team, repair team and rental & stage operators can now save time and effort, requiring as little as 7 minutes to collect the data out in the field on an iOS or Android device.
Epson Creative Projection App
With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays, and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be previewed while projecting and editing content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from a mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.

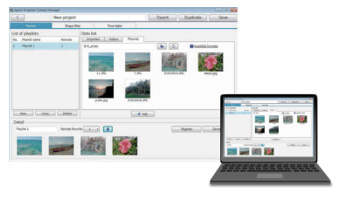

Epson Content Management software
With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedules and register the shape filter settings gives you advanced control such as synchronised playback.
Key features of the software include:
- Creating playlists
- Adding visual effects
- Setting up remote shortcuts
- Applying custom filters
- Scheduling playlists
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
Collaborative presenting - iProjection Software
Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens.
Simple control Epson Projector Management software
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.
ADVANCED INSTALLATION SOFTWARE
Ultra-short throw lens
The ELPLX01S is a UST lens can produce images from 100 inches to a massive 1,000 inches at a throw distance of 0.74m 3.1m respectively and has a lens shift of +17% vertical and 10% horizontally for added flexibility. The UST lens is also available in white.
(EB-PU2010B/W model is compatible with ELPLX02S. Lens shift range of ELPLX02S: +20% vertically, 15% horizontally. Please refer to lens compatibility chart)

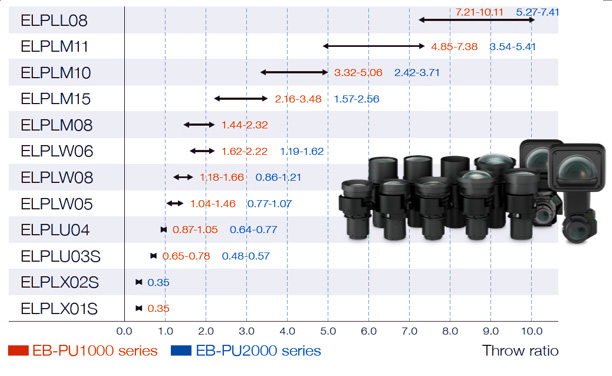

Eleven optional lenses
For added flexibility, the EB-PU1008W offers a total of eleven lenses, including middle, wide, long, short and ultra-short throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.
4K ready optional lens
A wide range of optional lenses are available for the EB-PU1008W to support any installation scenario. The optional lenses are all 4K compatible, and combined with the projector, deliver focused and sharp 4K Enhanced images.

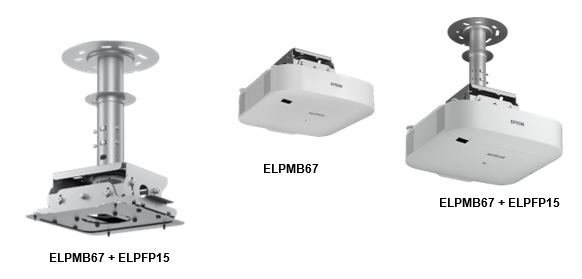

NEW Ceiling mount ELPMB67 and extension pole ELPFP15
ELPMB67 ceiling mount and ELPFP15 extension pole are lighter than the previous mount, giving you even more installation flexibility across the Epson laser projectors. Also, the ELPMB67 can accommodate wider vertical adjustment angle within + 5 / -15 range. Both mount and extension pole come in grey to easily integrate into any colour scheme.
The ELPWP10 allows content to be displayed from four different devices simultaneously, making content sharing a seamless experience.

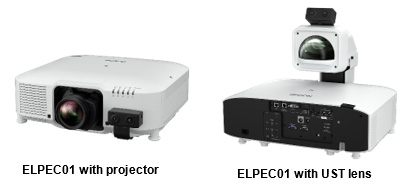

NEW External camera ELPEC01
Attach an ELPEC01 external camera to the EB-PU1008W or ELPLX01 UST lens to enable a powerful installation capability. Compatible with Epson Professional tool software and Epson Projector Management software, automate manual installation processes and enable remote camera access when required.
NEW External air filter ELPAF63
Exclusively designed for the EB-PU1008W, external air filter ELPAF63 extends the brightness level and protects the projectors internal optical engine from external dust particles. Attaching the ELPAF63 gives an equivalent protection to sealing an optical engine structure, so that the projectors performance is not compromised in an environment that contains high degree of particulates.

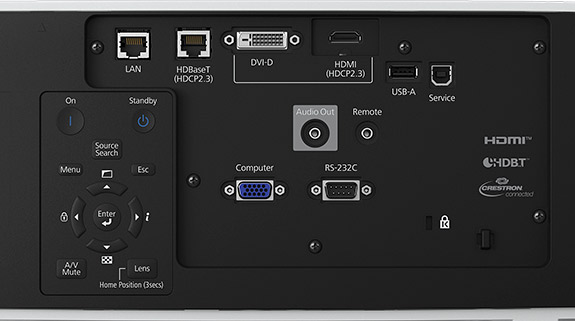

Connectivity panel
- Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.
- Weight: 16.8kg (excluding lens), Dimension D x W x H: 436 x 545 164mm (excluding lens, cable cover and feet).
- 67% vertically, 30% horizontally for EB-PU1000 series with ELPLM08
60% vertically, 18% horizontally for EB-PU2000 series with ELPLM15 - Epson Projector Config Tool App is available on iOS11 and Android 8.0.
| PROJECTOR |
|---|
| PRODUCT NAME | EB-PU1008WNL |
| PRODUCT CODE | V11HA33953 |
| TECHNOLOGY |
|---|
| Projection System | 3LCD |
| LCD Panel | 0.76-inch |
| IMAGE |
|---|
| Light Source | Laser Diode |
| Resolution | WUXGA |
| Colour Light Output | 8,500 Lumens |
| White Light Output | 8,500 Lumens |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 2,500,000:1 |
| LD Input Power | 372 W |
| Referenced Standard Lens | ELPLM08 |
| Keystone Correction (Standard Lens) | Vertical: 45
Horizontal 30 |
| Lens Shift (Standard Lens) | Vertical: 67
Horizontal 30 |
| OPTICAL |
|---|
| Zoom | 1 - 1.6 (Optical) |
| Screen Size (Standard Lens) | 50" to 1000" |
| Projection Distance (Standard Lens) | 100" screen 3.11 m 5.0 m |
| Throw Ratio | 1.44 (Zoom:Wide)
2.32 (Zoom:Tele) |
| Projection Lens F Number | 1.7 2.3 |
| Projection Lens Focal Length | 24 mm 38.2 mm |
| Focus Method | Powered |
| CONNECTIVITY |
|---|
| Input: Video | - |
| Input: Computer | 1 x D-sub 15-Pin (RGB) |
| Input: Digital | 1 x HDMI, 1 x DVI-D, 1 x HDBaseT |
| Input: SDI | |
| Input: Audio | |
| Control: I/O | 1 x RS-232C, 1 x Stereo mini |
| Network: I/O | 1 x RJ45, 1 x USB Type A (for Optional Wireless LAN) |
| HDBaseT | Yes |
| Wireless Connectivity | Optional |
| Output: Video | |
| Output: Digital | |
| Output: Audio | 1 x Stereo mini |
| ADVANCED FEATURES |
|---|
EPSON Projector Management
(Network & Control) | Yes |
EPSON iProjection
(Multi-PC Projection) | Yes |
| EPSON Professional Tool | Yes |
| Remote Access Camera | Optional ELPEC01 |
| External Air Filter (High capacity) | Optional ELPAF63 |
| Wireless LAN Enterprise Security | Yes (with Optional Wireless LAN Unit) |
| 4K Enhancement | Yes |
| Fully Sealed Optical Engine | |
| Interchangable Interfaces | |
| Art-Net | Yes |
| Lens Position Memory | Yes (10 positions) |
| Split Screen | Yes |
| Edge Blending | Yes |
| Curved Screen Projection | Yes |
| Corner Wall Projection | Yes |
| Frame Interpolation | Yes |
| Super Resolution | Yes |
| Detail Enhancement | Yes |
| 360 Degress Projection | Yes |
| Content Playback | Yes |
| Instant Off | Yes |
| Direct Power On | Yes |
| Security | Kensington-style lock provision
Wireless LAN Unit Lock
Security cable hole |
| Colour Modes | Dynamic
Presentation
Cinema
BT.709
Natural
DICOM SIM
Multi-Projection |
| GENERAL |
|---|
| Dimensions D x W x H (Including Feet) | 436 x 545 x 189 mm |
| Weight | 16.4 Kg |
| Projector Warranty* | 5 years |
| Power Consumption: LD On | 452 W |
| Power Consumption: Standby | 2.0 W |
| Noise Level (Normal/Eco) | 36 / 30 dB |
| What's in the Box | EB-PU1008WNL Projector, 3m 10A Power Cable, Quick Start Guide, Remote Control, 2 x AA Batteries, Cable Cover, Lens connector cap, Registration Card |
| COMPATIBLE LENS |
|---|
| ELPLX01 | Yes |
| ELPLX02 | |
| ELPLU03 | Yes |
| ELPLU03S | Yes |
| ELPLU04 | Yes |
| ELPLW05 | Yes |
| ELPLW08 | Yes |
| ELPLW06 | Yes |
| ELPLM08 | Yes |
| ELPLM15 | Yes |
| ELPLM10 | Yes |
| ELPLM11 | Yes |
| ELPLL08 | Yes |
