Epson EB-PQ2220B 20000LM 4K LARGE VENUE 3LCD LASER PROJECTOR 5YR

Our Price:

$81,398.90

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

569513

(?) Brand:

Epson Web Site

Manuf No:

V11HB05853BU

Shipping Weight:

5 KG (Includes product packaging)
Estimate Shipping

Details Files Finance Images & Video

All stock codes associated to this product

V11HB05853BU

The world's smallest and lightest 20,000 lm 4K projector

20,000-lumen brightnessSharp images and vivid colours, even in well-lit rooms
4K Crystal MotionSharp native images for excellent clarity
Cross-platform lens compatibilityLets you build the optimal projection solution for every requirement
Fit-and-forget reliabilityFilter-free design and IP5X dust resistance
Large imageScalable display size of up to 1,000 inches
Stunning clarity and details5,000,000:1 dynamic contrast ratio, scene adaptive gamma and high dynamic range (HDR) for exceptional visual performance

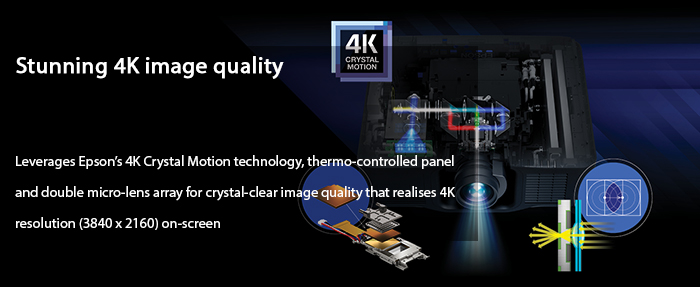

Brilliant 4K image quality with 4K Crystal Motion technology inspired by Epsons advanced display technology, the EB-PQ2220B offers exceptional 4K projection to deliver remarkable detail and extraordinary contrast for an amazing visual experience.
Ultra-compact and lightweight the world's smallest and lightest 20,000 lm 4K projector¹.
Up to 3x brighter colours and reliable performance² 3LCD, 3-chip technology.
Stunning clarity and details over 5,000,000:1 dynamic contrast ratio, scene adaptive gamma and high dynamic range (HDR) support for an exceptional visual performance.
Cross-platform lens compatibility for easy management and reduced warehouse costs, the optional lenses for the PU series are compatible with the EB-PQ2220B, eliminating the need for additional lens investments.
Enhanced connectivity supports 12G SDI in/out and HDMI in/out supporting 120 Hz.
Extensive software compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
Signal backup functionality avoid interruptions during vital events as the projector will automatically switch to a second input if there is an issue with the main signal (for HDMI / SDI / HD-BaseT).
Engineered for reliability featuring IP5X rated dust resistance³ and up to 20,000 hours maintenance-free operation, or even longer in extended modes.

As of January 2024. Main unit without lens. 20,000 lm in accordance with ISO 21118.
Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for January 2022 to December 2022.
IP5X certified in accordance with IEC Standard 60529. The IP5X certification is applied to the optical engine and light source module.

Enhanced connectivity

HDMI two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted.

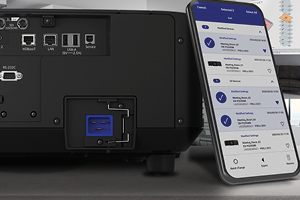

NFC function built-in

Reduce installation time of multiple projectors; read and write setting information using Epson's mobile app.

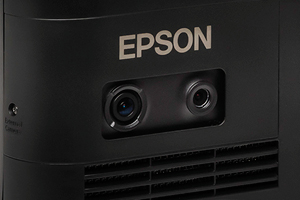

Optional external camera ELPEC01

Access powerful automated tools⁴ including edge blending assist function, auto colour calibration, and screen matching with or without a connected PC and router.

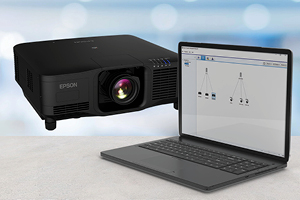

Efficient set-up and management

Control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app); easily manage your installed inventory using Epson Projector Management - Connected (EPM-C)⁵ from any device with a web browser.

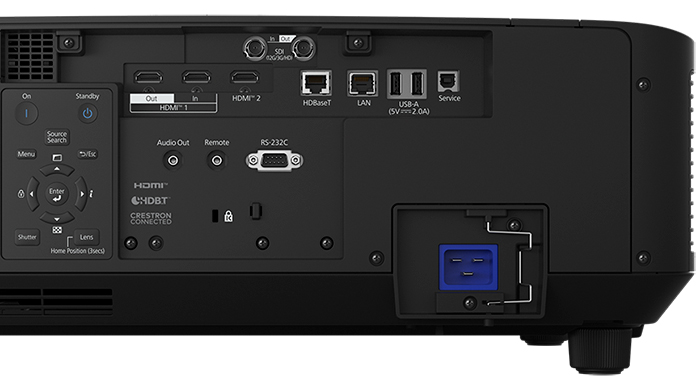

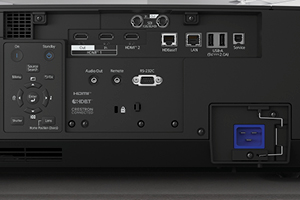

Connectivity panel

As of January 2024. Main unit without lens. 20,000 lm in accordance with ISO 21118.
Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for January 2022 to December 2022.
IP5X certified in accordance with IEC Standard 60529. The IP5X certification is applied to the optical engine and light source module.
Requires Epson external camera for each projector and may require Epson Projector Professional Tool app.
Requires one on-site PC with Epson Projector Connected Agent installed.

PROJECTOR
PRODUCT NAME	EB-PQ2220B
PRODUCT CODE	V11HB05853

TECHNOLOGY
Projection system	3LCD
LCD panel	1.04 inch

Light source	laser diode
Resolution	4K¹ (3840 x 2160, 8.3 m pixels)
Colour light output	20,000 lumens
White light output	20,000 lumens
Native aspect ratio	16:9
Native contrast ratio	3,000:1
Dynamic contrast ratio	5,000,000:1
LD input power	1080 W
Keystone correction (standard lens)	vertical: 45 horizontal 30
Lens shift (standard lens)	vertical: 58% horizontal 16%

OPTICAL
Zoom	1 - 1.61
Screen size (standard lens)	60" to 1000"
Projection distance (standard lens)	100" screen 3.35 m
Throw ratio	1.52 (digital zoom: wide) 2.47 (digital zoom: tele)
Projection lens F number	1.8 2.3
Projection lens focal length	36 mm 57.3 mm
Focus method	powered

CONNECTIVITY
Input: digital	2 x HDMI, 1 x HDBaseT, 1 x 12G-SDI
SDI: I/O	1 x BNC
Control: I/O	1 x RS232C, 1 x stereo mini
Network: I/O	1 x RJ45, 1 x USB type A (for optional wireless LAN)
USB: I/O	2 x USB type A², 1 x USB type B³
HDBaseT	yes
Wireless connectivity	optional
Output: digital	1 x HDMI, 1 x 12G-SDI
Output: audio	1 x stereo mini

ADVANCED FEATURES
Wireless LAN enterprise security	yes (with optional wireless LAN unit)
Remote access camera	yes (with optional ELPEC01)
Fully sealed optical engine	yes
Fully sealed laser light source	yes
Art-Net	yes
Lens position memory	yes
Edge blending	yes
Scaling	yes
Curved screen projection	yes
Simple stacking	yes
Simple blending	yes
Curved surface blending support	yes
NFC	yes
External camera ELPEC01 support	yes
Scene adaptive gamma	yes
Frame interpolation (4K @ 120 Hz)	yes
Super-resolution	yes
360 degress projection	yes
HDR10 (high dynamic range)	yes
HLG (hybrid log gamma)	yes
Auto contrast enhancement	yes
Auto signal back up function	yes (HDMI, SDI, HDBaseT)⁴
Instant off	yes
Direct power on	yes

GENERAL
Dimensions D x W x H (including feet)	492 x 586 x 218 mm
Weight	29.2 kg
Projector warranty	5 years
Power supply voltage	100 - 240 V AC +/- 10 %, 50/60 Hz(16,000 lm)⁵ 200 - 240 V AC +/- 10 %, 50/60 Hz
Security	Kensington-style lock provision wireless LAN Unit Lock security cable hole lens Lock
Colour modes	dynamic presentation cinema BT.709 natural DICOM SIM multi-projection
Power consumption: LD on	1431 W
Power consumption: Standby	2 W
Noise level (normal / eco)	48 / 39 dB
What's in the Box	EB-PQ2220B projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, user's guide

SOFTWARE SUPPORT
Epson projector management (network & control)	yes
Epson iProjection (multi-PC projection)	yes
Epson professional tool	yes
Epson content manager	yes
Epson creative projection support	yes
Epson projector config tool	yes
¹ 1080p with 2-axis pixel shift technology. On screen pixels = 8,294,400 dots (1,920 x 1,080 x 4). ² 2 x USB Type A: 1 USB A (Wi-Fi) for wireless LAN, smart media dongle, firmware update, copy OSD settings, content playback, or 5 V/0.9 A power supply. 1 USB A (external camera/Micro B) for smart media dongle, firmware update, copy OSD settings, content playback, or 5 V/0.9 A power supply. ³ Used for firmware updates and copying OSD settings. ⁴ Main input signal is HDMI 1. ⁵ The brightness will decrease to 16, 000 lm.
