ASUS AMD ROG CROSSHAIR X870E EXTREME (AM5) E-ATX Motherboard, DDR5 256GB, PCIe 5.0, 5x M.2, 10GbE + 5GbE LAN, Wi-Fi 7, USB4, 2x PCIe 5.0 x16, 4x SATA

Our Price:

$1,597.85

RRP:

~~$1,659.00~~

You Save:

$61.15

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

569963

(?) Brand:

ASUS Web Site

Manuf No:

ROG CROSSHAIR X870E EXTREME

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Details Files Finance Images & Video

All stock codes associated to this product

4711387984970, MBAX870EROGEXTREME, MBA-X870E-ROG-EXTREME, ROG CROSSHAIR X870E EXTREME

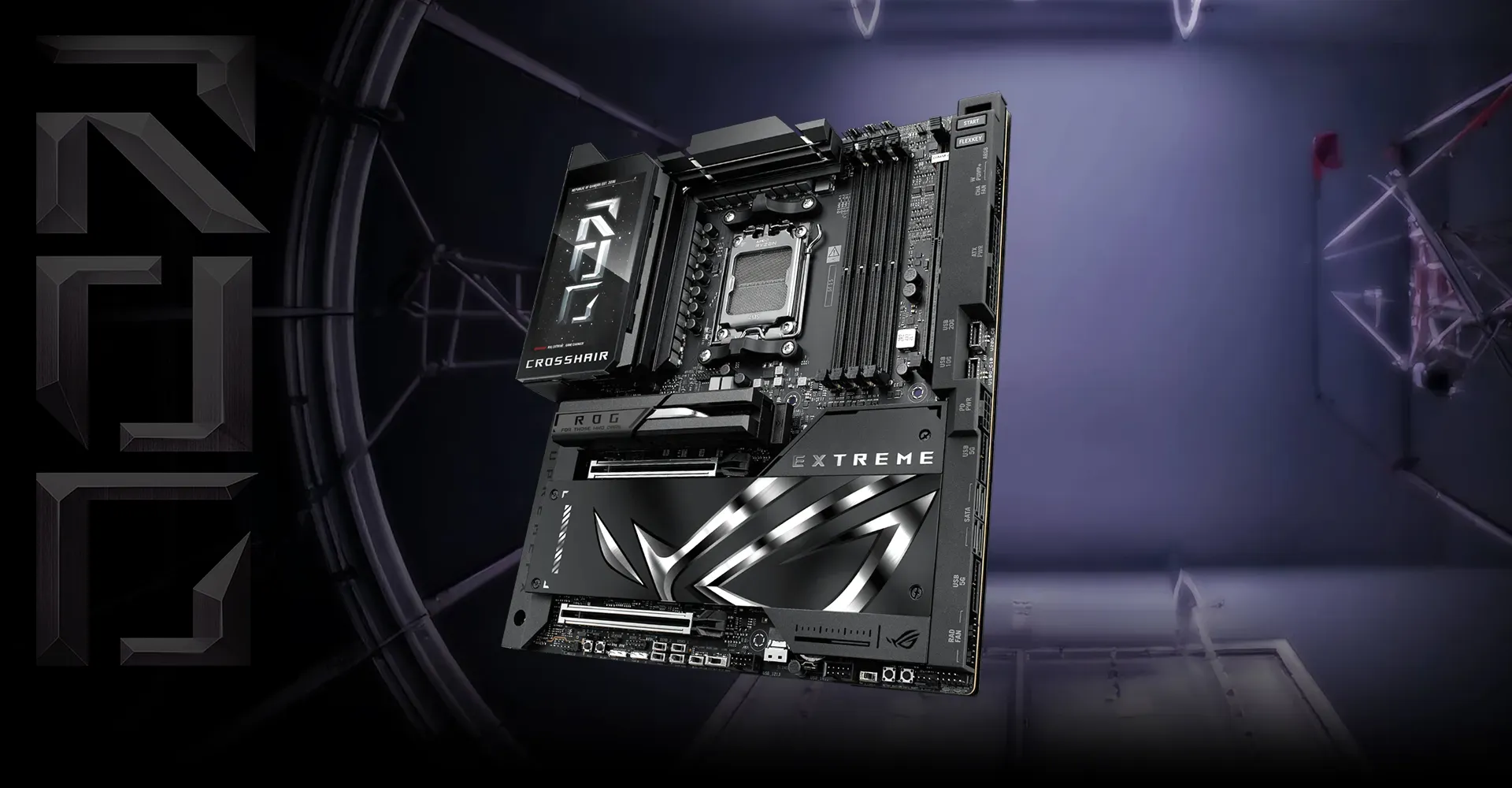

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalised style.

Extreme Power & Performance

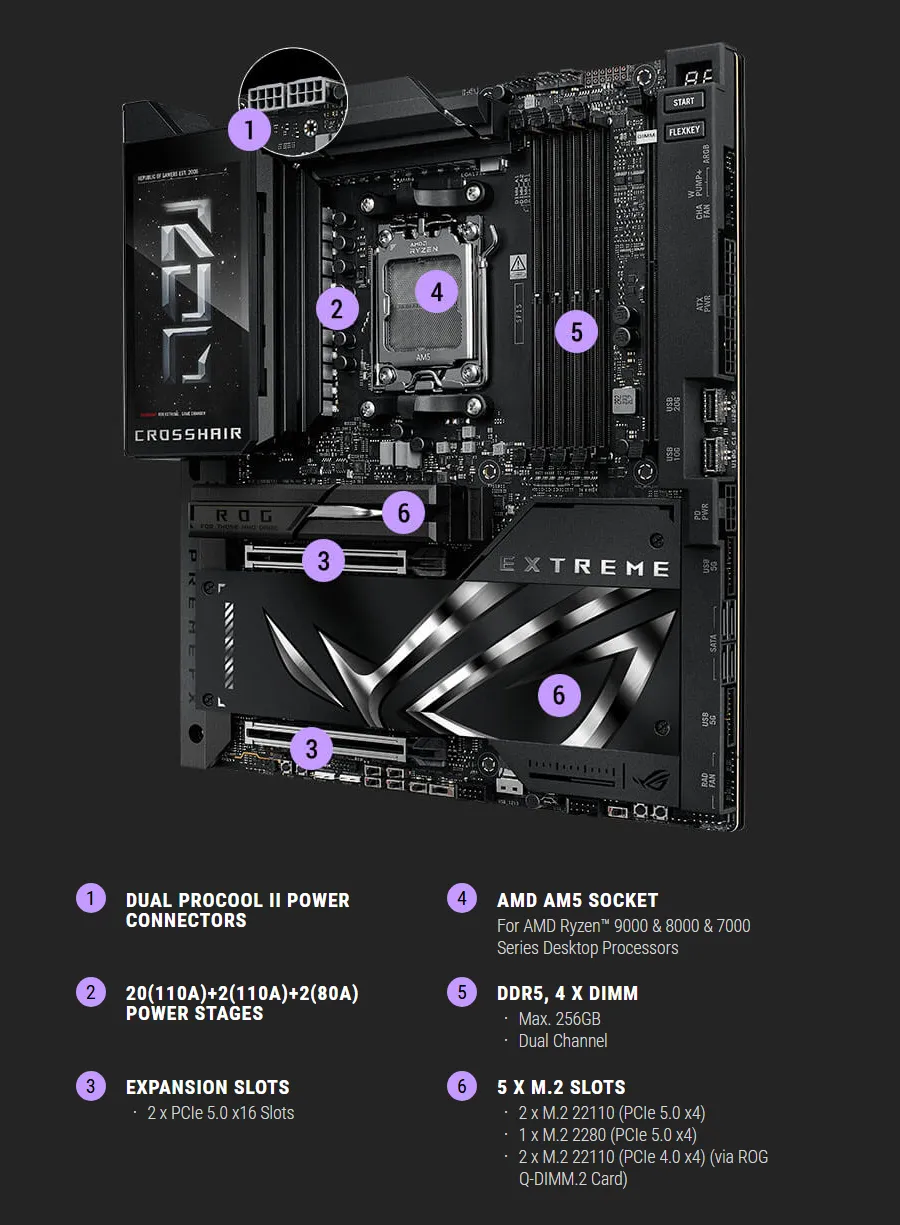

Performance

Cooling

Gaming Immersion

Connectivity

PERFORMANCE & ASUS AI INTELLIGENCE

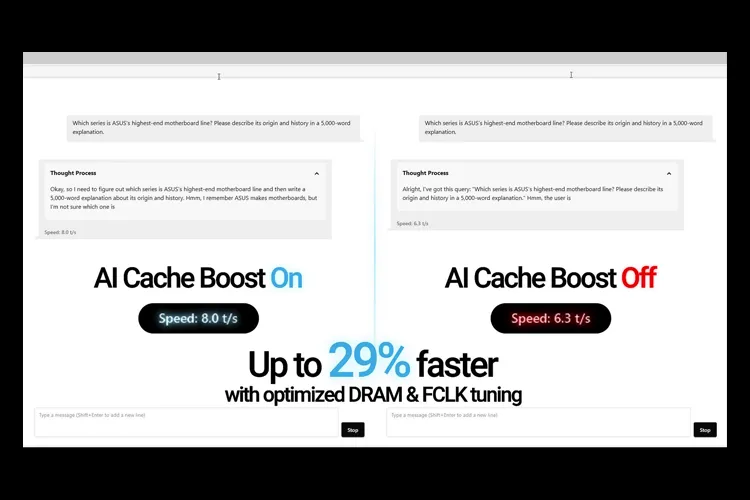

AI CACHE BOOST

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen 9000 Series CPUs, this BIOS setting optimises CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

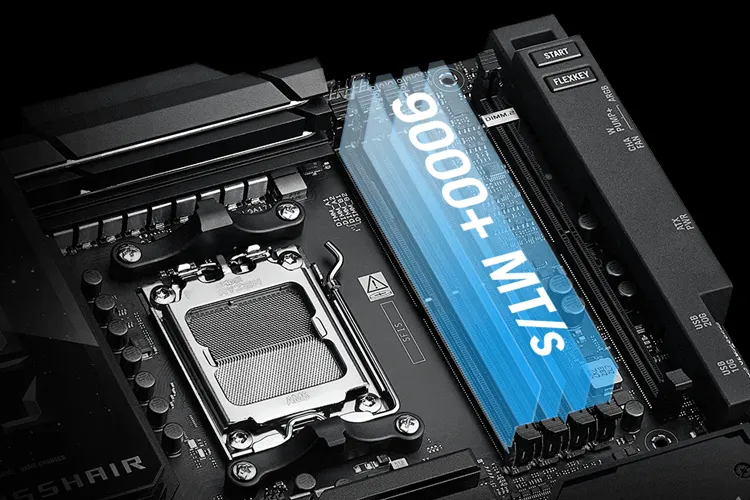

DDR5 DOMINATION

For those who want to fly past stock DDR5 speeds, the ROG Crosshair X870E Extreme is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

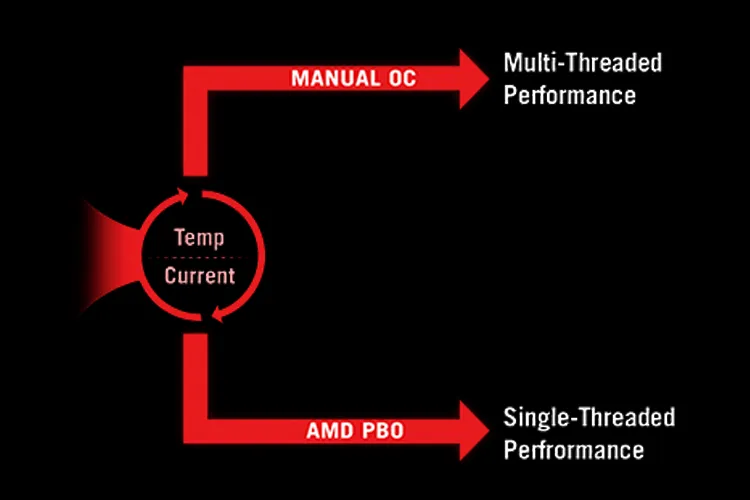

DYNAMIC OC SWITCHER

Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

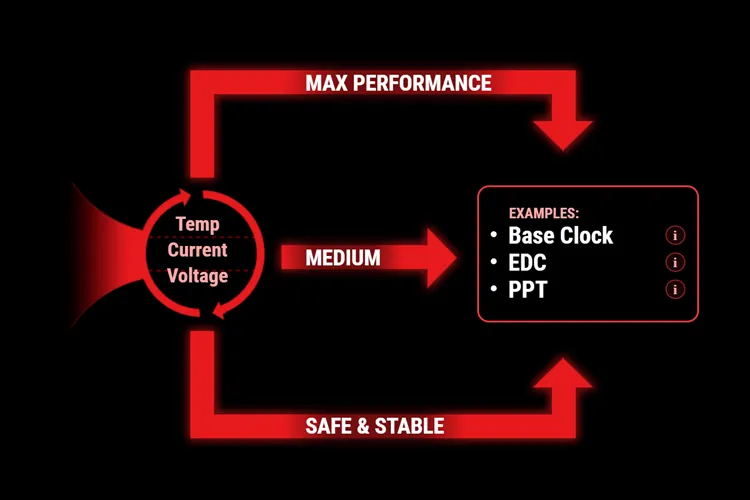

CORE FLEX

In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

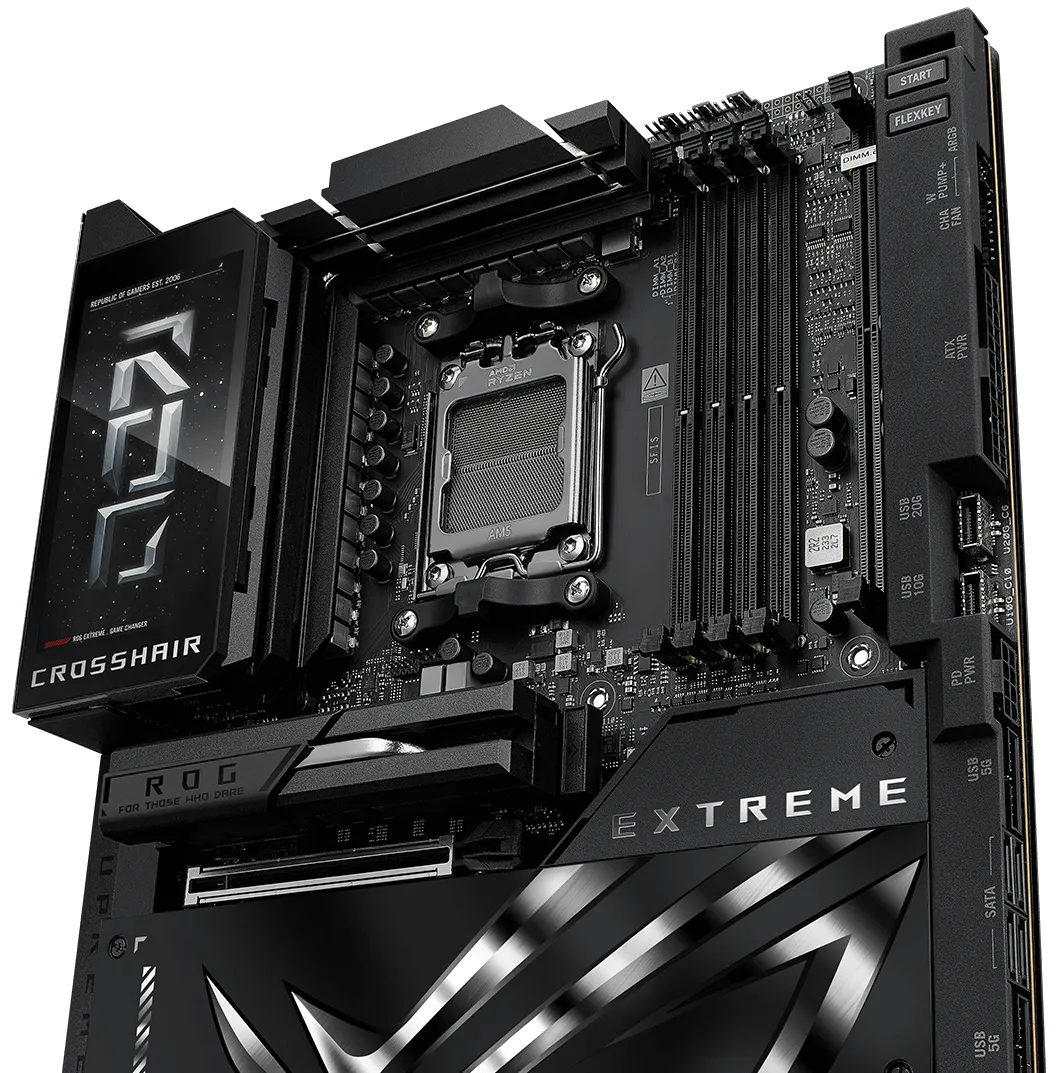

ROG Ultimate Power Solution

20(110A)+2(110A)+2(80A) Power Stages

COOLING

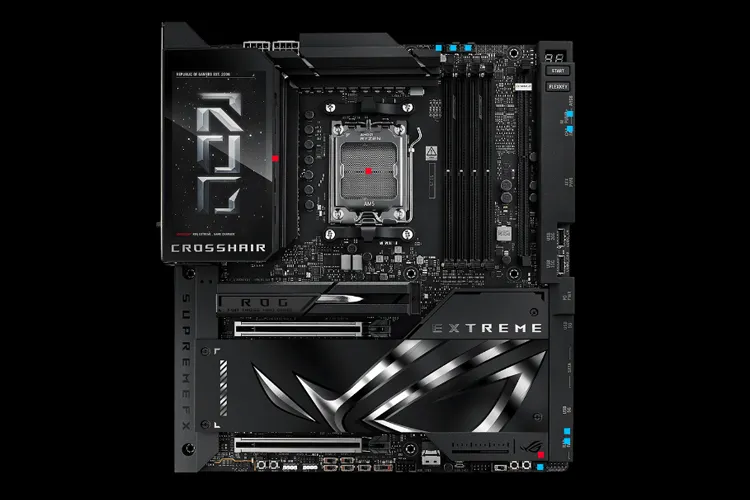

THERMAL MANAGEMENT

An extensive array of headers line the ROG Crosshair X870E Extreme for precise cooling control and monitoring.

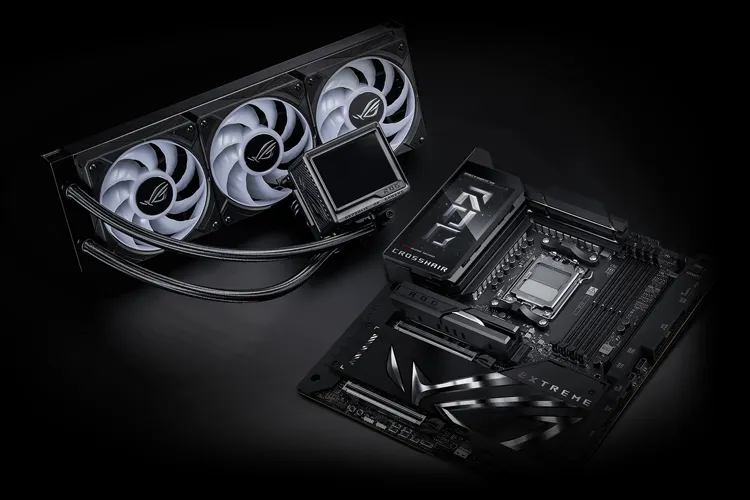

COOLER COMPATIBILITY

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.

CONNECTIVITY

WiFi 7

The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.

5Gb ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.

10Gb ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell Aqtion 10Gbps Ethernet.

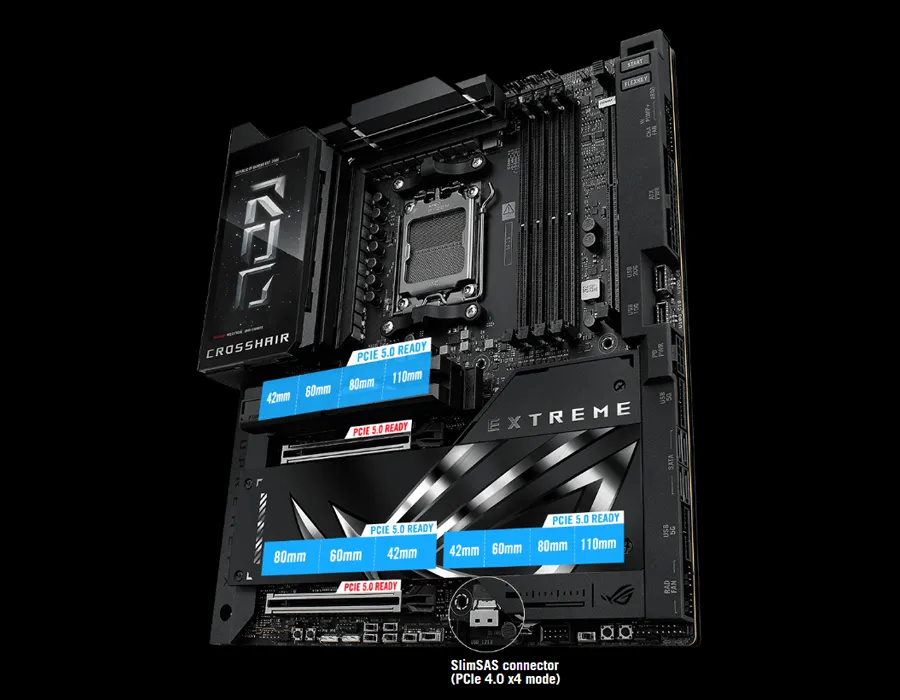

PCIE 5.0

Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. The ROG Crosshair X870E Extreme features three onboard PCIe 5.0 M.2 slots, which offer blistering 16 GB/s speeds. It also features a SlimSAS Connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.

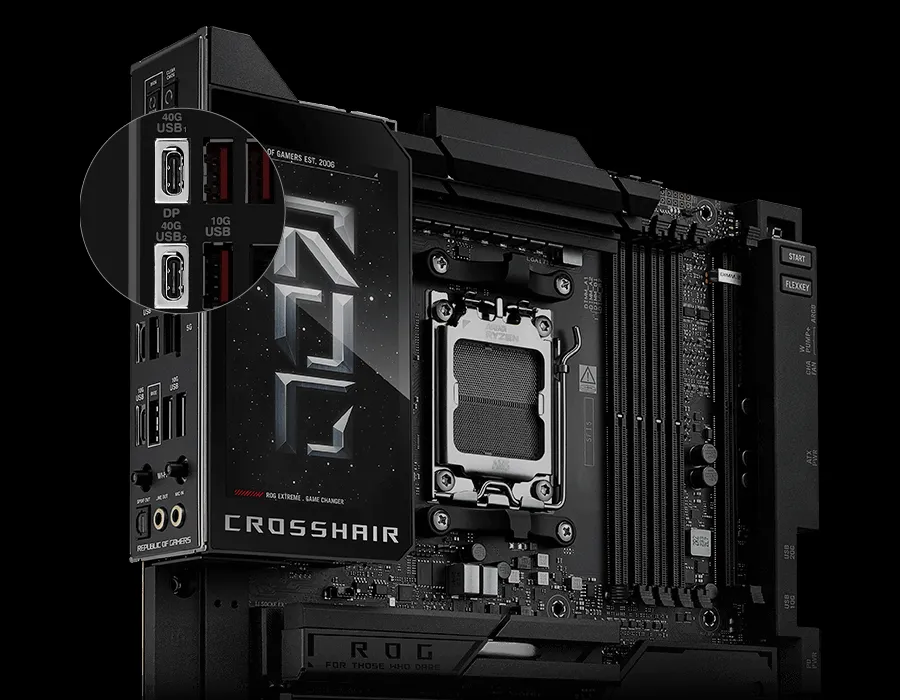

TWO USB4 TYPE-C PORTS

Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

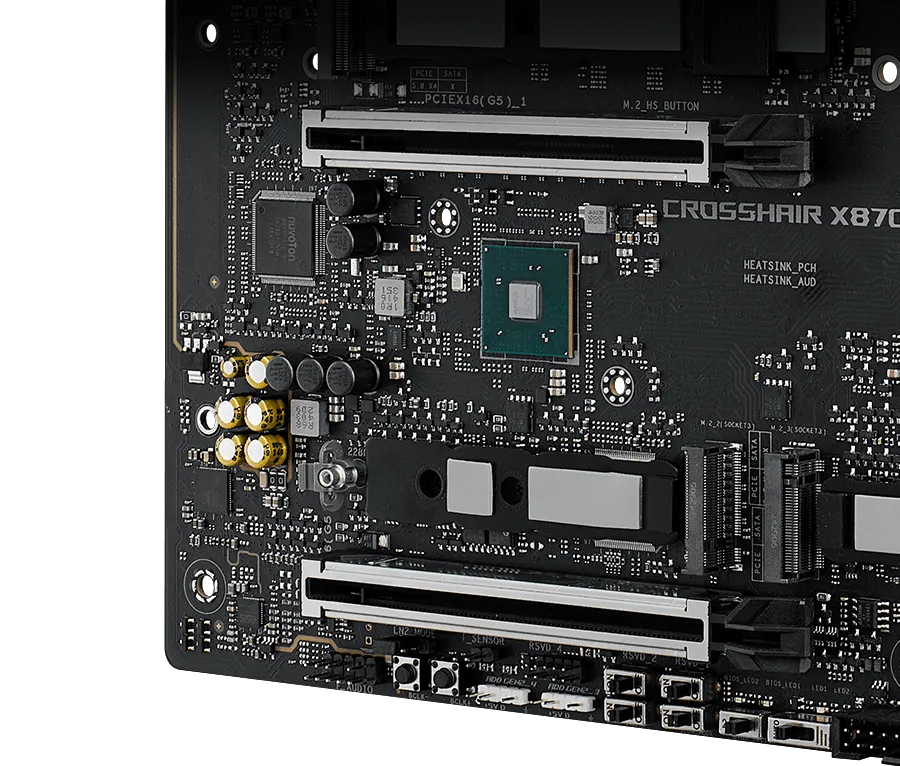

SupremeFX

ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS ES9219 Quad DAC capable of reaching-114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

Dolby Atmos

Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

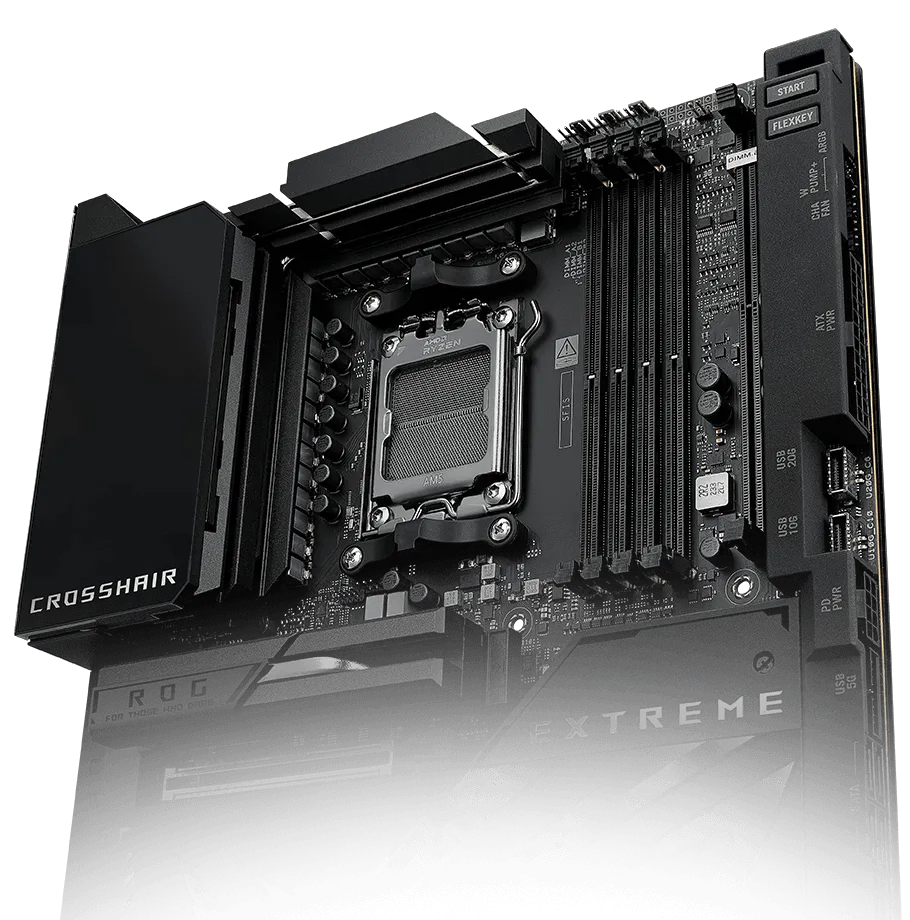

Boundless creativity, endless style.

The ROG Crosshair X870E Extreme features a full-colour 5-inch LCD screen that can show exclusive ROG animations, system information and even personalised services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

Additional Features

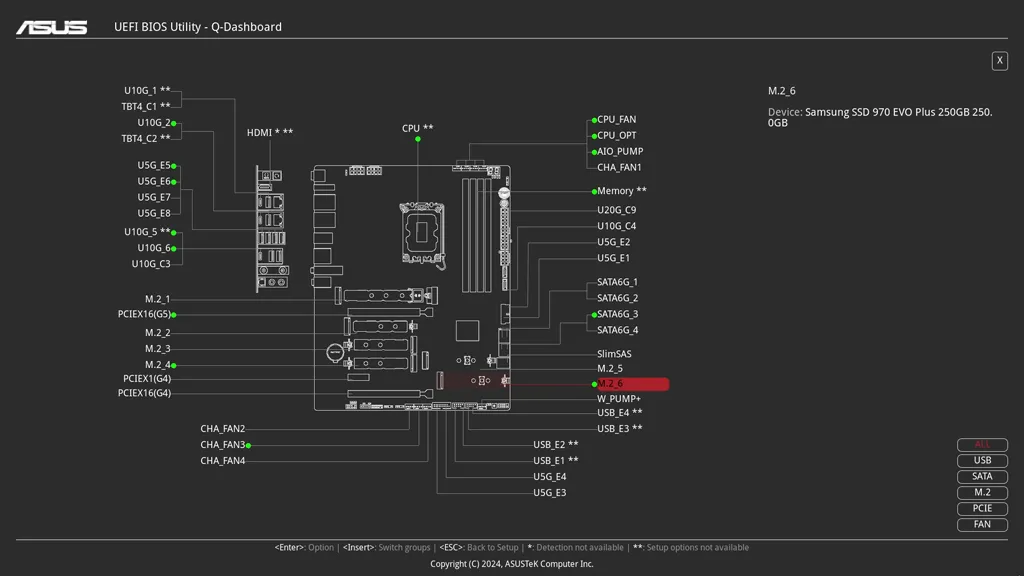

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

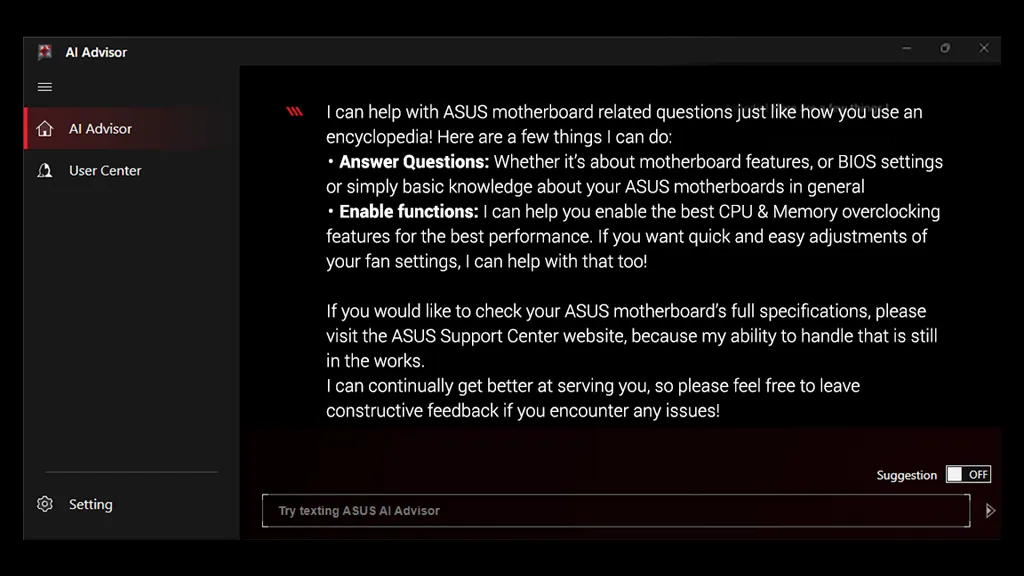

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

*Availability of ASUS AI Advisor may vary by region.

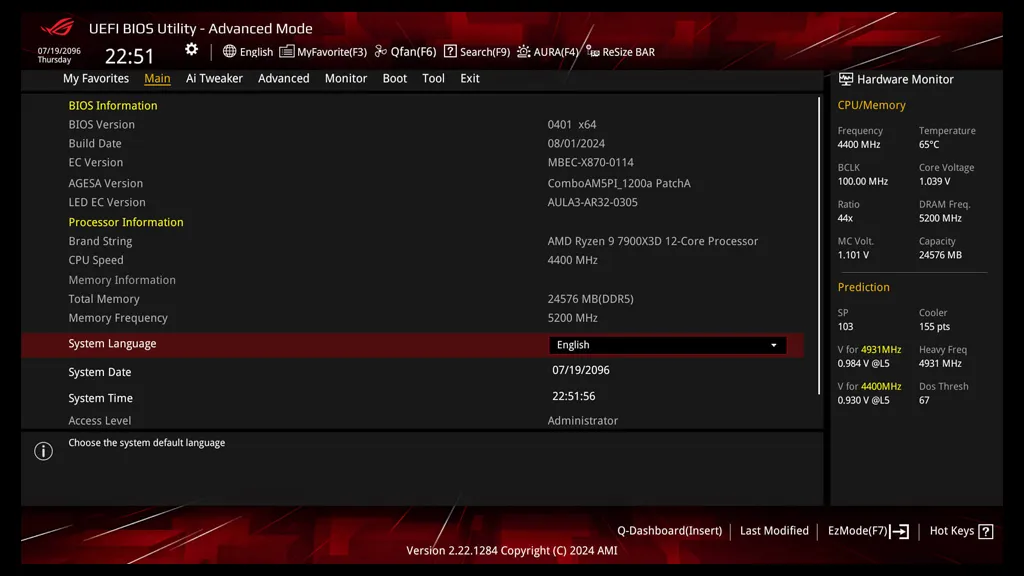

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

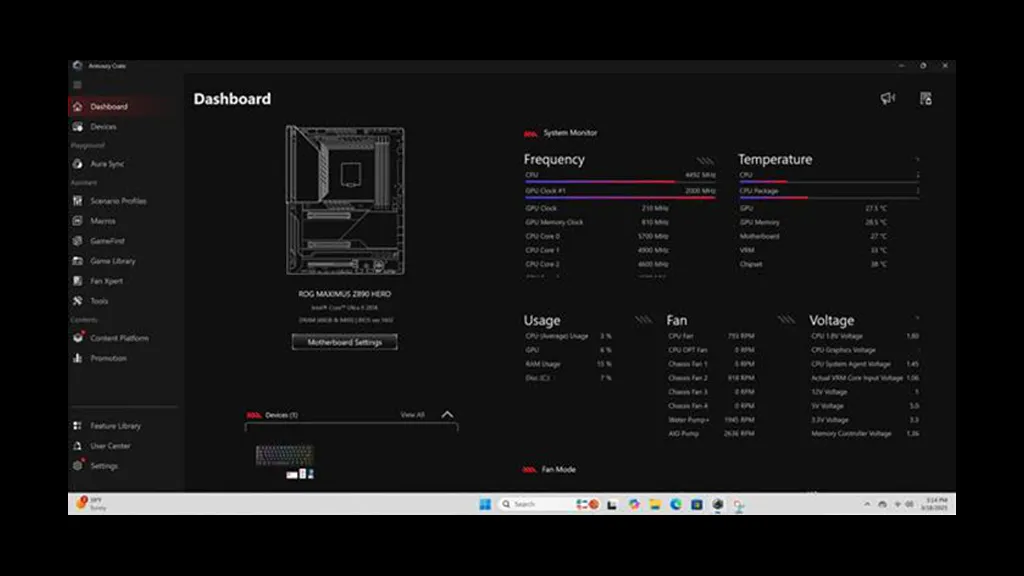

ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system.

Disclaimers & Information

Model

ROG CROSSHAIR X870E EXTREME

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
9000+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology

*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)

** When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode.
*** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
*** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
*** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

Storage

Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports

* When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
*** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.

RAID Support

AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

* Specifications vary by CPU types.

Ethernet

1 x Realtek 5Gb Ethernet
1 x Marvell AQtion 10Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 12 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A

*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Pause switch

Special Features

Extreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Dual BIOS
Full Colour 5" LCD Display
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
- Compatible with PD3.0 and PPS

* To support 60W, please install the power
cable to the 8-pin PCIe power connector or else only 27W will be supported.

Software Features

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME

Accessories

Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x ROG Fan Kit
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
1 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide

Operating System

Windows 11

Form Factor

E-ATX Form Factor
30.5 cm x 27.7 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 months*

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product

Click on a thumbnail to view it below

No related products found.

L7: 39 | TM: 30 | LM: 36 | TY: 66 | T: 66

No Hidden Surcharges

Payment FAQ

Your Last Viewed

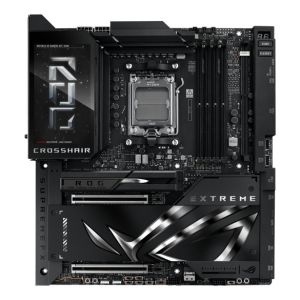

ASUS AMD ROG CROSSHAIR X870E EXTREME (AM5) E-ATX Motherboard, DDR5 256GB, PCIe 5.0, 5x M.2, 10GbE + 5GbE LAN, Wi-Fi 7, USB4, 2x PCIe 5.0 x16, 4x SATA

Reference Tools

Kingston
Memory Selector

Corsair
PSU selector

Sister Sites

We accept the following with No surcharge on VISA, Mastercard and Paypal!

All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
