ASUS AMD ROG STRIX X870E-A GAMING NEO (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0, 4x M.2, 1x HDMI, Wi-Fi 7, 5Gb LAN, USB4, 4K, ATX

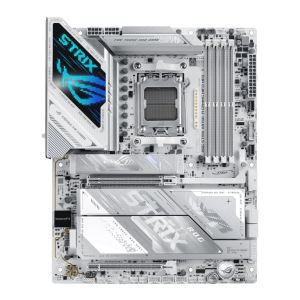

IMG 1 of 1
Our Price:
$11,878.80
RRP:
$11,878.81
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
571613
(?) Brand:
ASUS Web Site
Manuf No:
ROG STRIX X870E-A GAMING NEO
ROG STRIX X870EA GAMING NEO
Shipping Weight:
2.58 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
4711636491624, MBAX870EAROGNEO, MBA-X870E-A-ROG-NEO, ROG STRIX X870EA GAMING NEO, ROG STRIX X870E-A GAMING NEO
ASUS ROG STRIX X870E-A GAMING NEO

Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen 9000 Series processors. PCIe 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisorand exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMPsimplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4 Type-C ports, WiFi 7, and Realtek 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.

SPECIFICATIONS
Model ROG STRIX X870E-A GAMING WIFI7 NEO

CPU
AMD Socket AM5 for AMD Ryzen 9000 &
8000 & 7000 Series Desktop Processors*

Chipset AMD X870E

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen 9000 Series Processors,
9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x8 mode)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

RAID Support
AMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10

Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4 (support LE Audio)***
*Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

USB
Rear USB (Total 12 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-Cwith DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD**)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 12 ports)
1 x USB 20Gbps connector (1 x USB Type-C)
1 x USB 5Gbps connector (1 x USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports

BIOS
64 MB (512Mb) Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 11 (22H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
