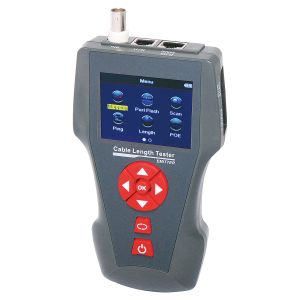

This comprehensive cable testing kit consists of three units. The main tester with 2.8” LCD screen, cable ‘sniffer’ receiving unit and 8 remote identifiers. It is capable of measuring cable length, tracing cable location, continuity testing, PoE and Ping testing. It can be used with LAN, telephone cabling. It is the perfect test accessory for any comms or CCTV installer. You simply connect one end of the cabling to the main tester and use the receiver unit to trace cable location and detect breakages. Main tester and receiving unit are fitted with internal lithium battery and is recharged via micro USB.
Specifications:
Indicator: LCD 320x240mm, with back light
Cable Test Types: STP/UTP 5E,6E network, telephone, coax cable
Max. Distance of Wire Map: 2000m
Max. Distance for Tracing Cable: 1000m
Max. Distance of Cable Length measurement: 2000m
Min. Distance of Calibration: 10m
Accuracy: 98% (after calibration)
Compatible Connectors: RJ11, RJ45, PING/POE, BNC
Cable Map Indication: LCD (Pin 1- Pin 8 &G)
Battery Type: 3.7V lithium battery 1800mAh
Work Temperature/Humidity: 10°C - 60°C/ 0°C - 70°C
Transmitter Dimensions: 173L x 92W x 34D mm
Receiver Dimensions: 183L x 58W x 35D mm
Remote Dimensions: 106L x 32W x 30D mm
Features:
POE test
PING test
Perform crosstalk test on network cable
Test open, short or cross connection
Measure length of telephone, network cabling up to 2000m
Log data and measurements to internal Micro SD card
Locate breakages
Voltage detector in receiver end (50-1000V)
Includes 8 remote units
Voltage presence detection
Includes carry case, charging lead and adaptors.
