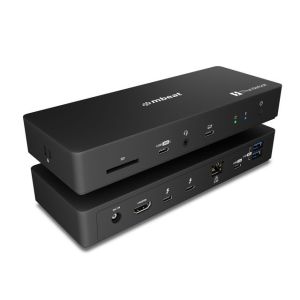

Mbeat Thunderbolt™4 / USB4 Docking Station – 40Gbps, Dual 4K/8K, 96W PD, 2.5GbE, HDMI 2.1, 12 Ports

IMG 1 of 1
Our Price:
$338.60
RRP:
$429.95
You Save:
$91.35
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
573501
(?) Brand:
Mbeat Web Site
Manuf No:
MB-DOCK-TB48
MBDOCKTB48
Shipping Weight:
1.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
9346396004347, MBDOCKTB48, MB-DOCK-TB48, USMBDOCKTB48, USMB-DOCK-TB48
mbeat Thunderbolt4 / USB4 Docking Station

The TB48 is a high-performance Thunderbolt 4 docking station designed for modern professional workflows. Delivering 40Gbps bandwidth, support for 8K or dual 4K displays, 96W laptop charging, 2.5GbE networking, and 12 essential ports, it replaces multiple adapters with a single, reliable connection. Built for speed, stability, and universal compatibility across Windows and macOS, it keeps your workspace streamlined and your devices running at peak performance.

Thunderbolt 4 & USB4 certified full 40Gbps bandwidth
Dual 4K@60Hz extended desktop or single 8K@30Hz via HDMI 2.1
Up to 96W USB-C PD 3.0 laptop charging 150W adapter included
2.5GbE LAN, SD 4.0 card reader, Hi-Res 3.5mm audio
12 ports total plug-and-play, no drivers required

SPECIFICATIONS
Interface
Upstream: 1 Thunderbolt 4 / USB-C port (Front,
supports up to 96W PD, 40Gbps)
Downstream:
- 2 Thunderbolt 4 / USB4 ports (Rear, data or video
output)
- 2 USB-A 10Gbps (Rear, 5V/0.9A)
- 1 USB-C 10Gbps (Rear, 5V/1.5A)
- 1 USB-C 10Gbps (Front, 5V/3A)
Video Output:
- 1 HDMI 2.1
- 2 Thunderbolt 4
Maximum Resolution: 1 8K@30Hz or 2 4K@60Hz
Ethernet: 1 RJ45 (Rear, 10/100/1000/2500Mbps)
Card Reader: 1 SD 4.0 (Front, up to 985MB/s)
Audio: Hi-Res 3.5mm Headset Jack (Front, 24bit / 96Hz)
Security: K-Lock Slot for physical anti-theft security
LED Indicators:
- Power LED: Green (power on)
- Thunderbolt 4 LED: Blue (active Thunderbolt connection)
Power Type:
- DC Power Input: 150W (20V/7.5A)
- 150W DC Power Adapter Included
- PD Charging Output: USB-C PD 3.0 up to 96W (5V / 9V / 15V / [email protected]) to host device

Supported Operating System
Windows 10
macOS Big Sur 11.2 or later

Compatibility and Requirements
Dual Extended Display Compatibility Alert for Apple MacBook: Dual display support depends on the MacBooks processor, not the dock. MacBook Pro models with M1 Pro, M1 Max, M2 Pro, M2 Max, M3 Pro, or M3 Max chips support dual extended displays natively, whereas MacBook Air or MacBook Pro models with M1, M2, or M3 (Base) chips support only a single extended external display.
Windows laptops with Thunderbolt 4 or USB4 generally support dual extended displays.

Product and Package:
Product Dimensions: 19.9cm 7.5cm 3.1cm
Product Weight: 0.26kg
Cable Length: 100cm (USB-C / Thunderbolt data cable)
Package Dimensions: 29.5cm 14.5cm 9cm
Package Weight: 1.11kg
Package Contents: Thunderbolt 4 Docking Station, 150W DC Power Adapter (Included), USB-C / Thunderbolt Cable (100cm), Instruction Manual, Product Registration Card

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers (Mbeat) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
