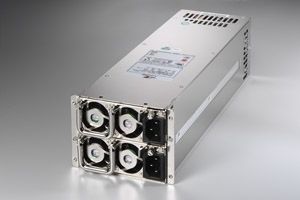

Zippy 650W EPS12V 24+8+4pin Dual Redundant Power Supply for 2U Chassis - (M1L2-5650P3V)
  • Power bracket may be required

IMG 1 of 1
No Longer Available
Part Number:
86571
(?) Brand:
Zippy
Manuf No:
PSR-5650M1L2
PSR5650M1L2
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/7/2008
Details Files Finance Images & Video
All stock codes associated to this product
PSR5650M1L2, PSR-5650M1L2


650W

Server,Workstation,Storage System,IPC

330.00x101.20x84.00(mm)
12.90x3.98x3.31(inch)

VOLTAGE:90~264VACFULLRANGE
FREQUENCY:47~63HZ
INPUTCURRENT:5A(RMS)FOR230VAC
10A(RMS)FOR115VAC
INRUSHCURRENT:40AMAX.FOR115VACPERMODULE
60AMAX.FOR230VACPERMODULE
Output Voltage Output Current Min. Output Current Max. Output Current Peak Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 1.0 32.00   5% 1% 50mV
+12V 2.0 45   5% 1% 120mV
-12V 0 1   5% 1% 120mV
+3.3V 1.0 25   5% 1% 50mV
+5VSB 0.1 3   5% 1% 50mV

* TEMPERATURE RANGE: OPERATING 0 --- 45,STORAGE -40 --- 70
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & 90VAC INPUT VOLTAGE
* EFFICIENCY: 70% TYPICAL AT 115VAC, FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* WARNING METHOD: AUDIO ALARM, POWER DETECTIVE SIGNAL DELIVERY
* REMOTE SENSING DESIGN
* ISOLATION: BUILT-IN THE POWER MODULE

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 years*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
