All stock codes associated to this product
OL6000ERT3UP, CP89123, 2348323, 4712364142789, CP89123N

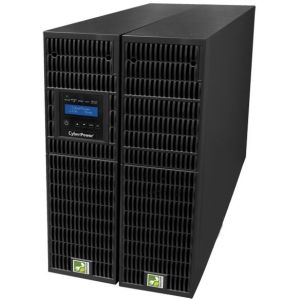

CyberPower Systems Online Series 6000VA Double Conversion UPS with Bypass Switch and SNMP Card included 6RU
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
|
Battery Information
|
| Backup/Run Time (Full Load): |
5.30 Minute |
| Backup/Run Time (Half Load): |
15.80 Minute |
| Battery Characteristics: |
Maintenance-free |
| Battery Chemistry: |
Sealed Lead Acid |
| Hot Swappable: |
Yes |
| Maximum Battery Recharge Time: |
4 Hour |
| Number of Batteries: |
20 |
|
General Information
|
| Brand Name: |
CyberPower |
| Manufacturer Part Number: |
OL6000ERT3UP |
| Manufacturer Website Address: |
https://www.cyberpowersystems.com |
| Manufacturer: |
CyberPower Systems, Inc |
| Marketing Information: |
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
|
| Product Line: |
Smart App Online |
| Product Model: |
OL6000ERT3UP |
| Product Name: |
Smart App Online OL6000ERT3UP 6000VA Tower/Rack Mountable UPS |
| Product Type: |
Dual Conversion Online UPS |
|
Interfaces/Ports
|
| Serial Port: |
Yes |
| USB: |
Yes |
|
Management
|
| Network Management: |
SNMP/HTTP Remote Monitoring |
|
Miscellaneous
|
| Certifications &Standards: |
CE
|
| Green Compliance Certificate/Authority: |
RoHS |
| Green Compliant: |
Yes |
| Package Contents: |
- Smart App Online OL6000ERT3UP 6000VA Tower/Rack Mountable UPS
- 2 Sets x (8) Plastic Washers
- 2 Sets x (8) Screw Hole Dust Covers
- 2 Sets x Rack Mount Rails
- 2 Sets x (2) Rack Mount Ears (Stands)
- 2 Sets x (1) Tie Plate
- 2 Sets x (8) Flat Head Screws: M5X8L
- 2 Sets x (14) Pan Head Screws: M5X12L
- Input / Output Terminal Block Cover
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- Power Cords
- User Manual
- Phone Line
- Battery Module
- Software CD
- Register Card
|
| Software Included: |
PowerPanel Business Edition Software |
|
Physical Characteristics
|
| Depth: |
820 mm |
| Form Factor: |
Tower/Rack Mountable |
| Height: |
132 mm |
| Rack Height: |
3U |
| Weight (Approximate): |
28.50 kg |
| Width: |
433 mm |
|
Power Description
|
| Input Voltage: |
110 V AC |
| Input Voltage: |
220 V AC |
| Load Capacity (VA): |
6 kVA |
| Load Capacity (Watt): |
5.40 kW |
| Output Voltage: |
208 V AC |
| Output Voltage: |
220 V AC |
| Output Voltage: |
230 V AC |
| Output Voltage: |
240 V AC |
|
Technical Information
|
| Dataline Protection: |
RJ-11 |
| Dataline Protection: |
RJ-45 |
| Emergency Power OFF: |
Yes |
| Plug/Connector Type: |
Hard Wire 3-wire |
| Receptacles: |
1 x IEC 60320 C13 |
| Receptacles: |
2 x IEC 60320 C19 |
| Receptacles: |
8 x Hard Wire 3-wire |
|
Warranty
|
| Additional Warranty Information: |
3 years advanced replacement warranty on product and 2 years on internal batteries |
| Limited Warranty: |
3 Year |
