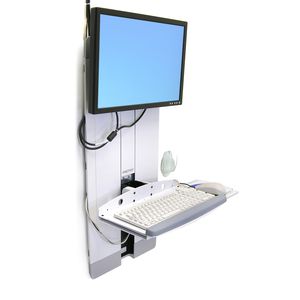

Ergotron StyleView Vertical Lift Low-Profile Keyboard & Monitor
Mount - High Traffic Area, White
Low-Profile Keyboard & Monitor Mount
Perfect for space-constrained and high-traffic areas. The low profile
vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a
slim, compact unit when not in use—less than 4" (10.2 cm) from the wall.
A unique cable management system conceals and organizes cords and makes
cleaning a snap!
Product Benefits
- With the keyboard folded up, total system depth is as little as 4" (102
mm)
- Ergonomic negative-tilt keyboard tray with left or right mouse tray
ensures wrists remain in a neutral position during data entry
- Patented counterbalance system provides smooth adjustment while
maintaining touch-screen stability
- 9" (229 mm) vertical adjustment enhances ergonomics for multiple users
- Steel construction for long-lasting durability
- Right- or left-side cable management system conceals and organizes cords
and makes cleaning a snap!
Specifications
|
Part Number |
60-593-211, 60-593-200 |
|
Description |
StyleView Vertical Lift, High-Traffic Area version |
|
|
|
Includes mouse pad, wrist rest, mouse pouch |
|
Larger display sizes may inhibit the keyboard tray folding flat in
storage position |
|
Weight Capacity |
Listed weight capacity represents total load, including both the
monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs
(11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease
capacity |
|
Mounting Standards |
VESA FDMI MIS-D, 100/75 (hole pattern 100 x 100 mm & 75 x 75
mm) |
|
Fold-down keyboard tray |
Yes |
|
Negative-tilt keyboard tray |
adjustable 0° to -10° |
|
|
|
Integrated cable management system can be configured on either
side |
|
Easy-to-clean exterior |
|
Shipping Dimensions |
39.5" x 16" x 10.75" (1000 x 406 x 273 mm) |
|
Shipping Weight |
36.4 lbs (16.5 kg) |
|
Warranty |
Five (5) years |
