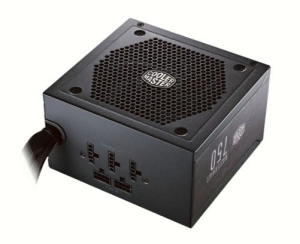

Coolermaster 750W MasterWatt Semi-fanless Modular Power Supply -
ATX12V V2.4, 80Plus Bronze
Semi-fanless Modular 80 PLUS Bronze Certified Power
Supply
The MasterWatt is an 80 Plus Bronze power supply with an innovative
semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero
dBA. When demand for power increases,a gradual fan curve provides measured
cooling with little to no noise at any output level. Dual forward / DC-to-DC
topology is employed to keep the voltage stable in all conditions. For increased
performance,MasterWatt is equipped with 16 AWG power cables,which reduces
resistance,thereby increasing efficiency.
80 PLUS Bronze Certified
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an
average efficiency of 85%.

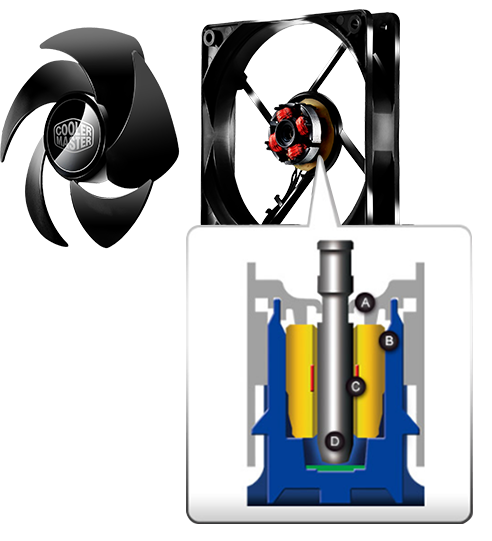

Durable LDB Bearing
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet
fan blades offering a long lifetime of quiet cooling.
- Sealant on the The groove outside of the bearing helps to circulate the
oil
- Sealant on the bobbin and featuring the highest dustproof level IP6X
- Recycle slot adds extra storage space for the oil
- The shaft makes the oil flow by pumping it while spinning

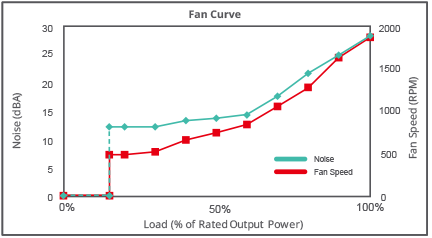

Semi-Fanless up to 15% load
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic
computing.

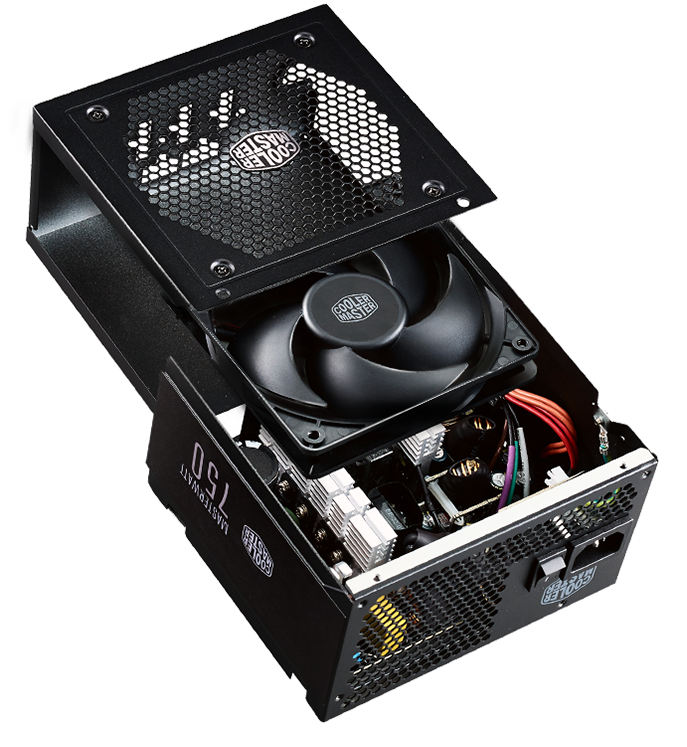

Dual Forward and DC-to-DC Circuit Design
The Dual Forward and DC-to-DC circuit design offers reliability and
stability.This is especially significant in +3.3V and +5V outputs.
More Conductive PCI-e Cables
The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better
efficiency,providing you a safer user environment.
Specifications
|
Product Name |
MasterWatt 750 |
|
Product Number |
MPX-7501-AMAAB |
|
Type |
ATX 12V V2.4 |
|
PFC |
Active PFC |
|
Operation Voltage |
100-240 Vac |
|
Input Voltage |
100-240 Vac |
|
Input Current |
10-5 A |
|
Input Frequency |
50-60 Hz |
|
Dimensions (LxBxH) |
140 x 150 x 86 mm |
|
Fan Size |
120 mm |
|
Fan Bearing |
LDB |
|
Power Good Signal |
100-500 ms |
|
Hold Up Time |
16ms at 80% load |
|
Efficiency |
85% @ Typical Load |
|
ErP 2013 Lot 6 |
Yes |
|
MTBF |
>100,000 hours |
|
Operating Temperature |
0 ~ 40C |
|
Protections |
OCP / OVP / UVP / OPP / OTP / SCP |
|
Regulatory |
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC,
CB |
|
|
|
|
Connectors |
|
|
MB 24 Pin |
1 |
|
CPU 12V 4+4 Pin |
1 |
|
SATA |
9 |
|
Peripheral 4 Pin |
3 |
|
FDD Cable 4 Pin |
1 |
|
PCI-e 6+2 Pin |
4 |
