D-Link AC1750 Wireless Range Extender
Features
Connectivity
- Wireless AC gives you high-speed wireless connectivity for your devices
- Wireless 802.11n/g/b/a backward compatibility
- Wireless speeds of up to 1750 Mbps
- 3 x 3 MIMO antenna configuration
- Dual-band connectivity for greater flexibility and reduced interference
- 10/100/1000 Gigabit Ethernet Port
Security
- WPA2/WPA wireless encryption to keep your wireless connection secure
- Wi-Fi Protected Setup (WPS) for secure setup with the simple press of a
button
Easy to Use
- One-piece wall plug design is compact, portable, and does not require
additional power cables
- Built-in setup wizard and QRS Mobile app for mobile devices guide you
through installation
Overview
AC1750 Wi-Fi Range Extender
The DAP-1720 AC1750 Wi-Fi Range Extender is a portable plug-in device that
lets you extend the range of your wireless networks. It can also be used to
create a wireless access point when connected by Ethernet. Small, yet powerful,
it supports Wireless AC speeds of up to 1750 Mbps

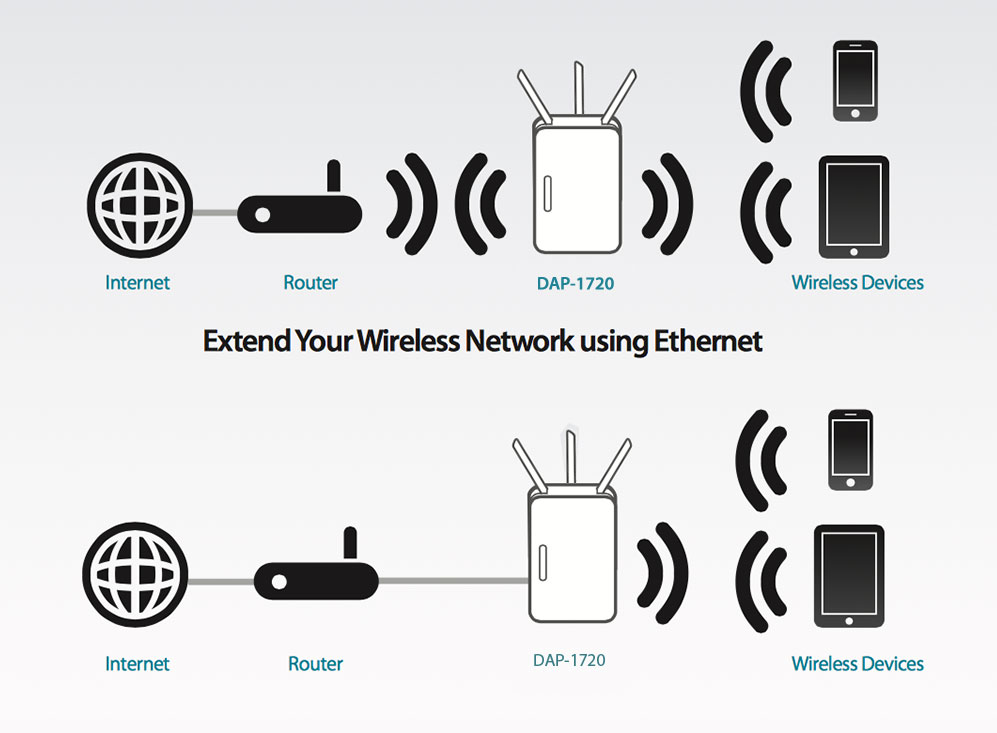

Extend Your Wireless Network
Increase the coverage of your home or office wireless network with the sleek
and easy-to-use DAP-1720 AC1750 Wi-Fi Range Extender. The DAP-1720 helps you
move from room to room, office to office, floor to floor, or yard to yard
without losing signal. Stream live news, music, or sports on your mobile device
without missing a thing. You can also use the DAP-1720 as a wireless access
point by connecting an Ethernet cable to the built-in Gigabit Ethernet port.
Easy to Set Up, Easy to Use
Setting up the AC1750 Wi-Fi Range Extender is simple. You can use one-touch
configuration by pushing the WPS push-button on the DAP-1720 and on the router
or acess point you want to extend, and the DAP-1720 will automatically configure
itself for you. Alternatively, you can use the supported QRS Mobile app on your
iPhone, iPad, or iPod touch or Android mobile device to set up the DAP-1720
easily without needing a computer. It even includes a built-in setup wizard that
lets you configure it wirelessly using a PC or mobile device.
Dual Bands to Ease Channel Congestion
The DAP-1720 AC1750 Wi-Fi Range Extender simultaneously operates on both the
2.4 GHz and 5 GHz wireless bands using concurrent dual-band technology with
three Multiple In Multiple Out (MIMO) external antennas. High frequency 5 GHz
band technology provides more total available bandwidth and faster communication
between your latest wireless devices, leaving the 2.4 GHz band for devices with
lower bandwidth requirements. This allows you to connect your existing devices
to the 2.4 GHz band and leave the 5 GHz band available for your high bandwidth
devices to stream high quality 3D/4K video, play online games, or make Internet
voice and video calls.
Smart Signal LEDs Makes Placement a Snap
The DAP-1720 AC1750 Wi-Fi Range Extender features D-Links Smart Signal LED
technology which makes finding the optimal location for your extender a cinch.
With other range extenders, it is difficult or impossible to gauge how strong or
weak the connection between an extender and an uplink network is. The DAP-1720s
Smart Signal LEDs eliminate the guesswork by intuitively lighting up, giving you
instant visual feedback so you can quickly test out multiple locations to find
the best place for the DAP-1720.
Say Goodbye to Ethernet Cables
The DAP-1720 prepares your home to become a Connected Home by bringing Wi-Fi
to places your existing signal cant reach. A stronger Wi-Fi signal means you can
install more wireless surveillance cameras, baby monitors, sensors, and alarms
in the places where you need them. Plus, the speed and convenience of the
DAP-1720 AC1750 Wi-Fi Range Extender means you no longer need to consider the
frustrating, expensive, and time-consuming task of professionally installing
Ethernet cables to each of your devices.
Compact, Convenient Design
This compact device is ideal for use at home or a small office, as it does
not take up much space and is ready to use by simply plug it in. The bright
signal Indicator LED makes finding a suitable location a cinch. Its diminutive
wall-plug design easily saves you the hassle of dealing with a power cord. Its
sleek, unobstructive appearance blends easily into the decor of your home or
office.
Extend Your Wireless Network
Dual-band technology helps reduce interference from nearby wireless
transmitters in the home, and also provides backward compatibility with older
wireless devices in your network, allowing you to enjoy a blazing-fast, reliable
wireless connection.
Multiple Operation Mode
Besides wireless extender mode, you can also configure DAP-1720 as an access
point to extend your home wireless network.
Todays households are connecting more devices than ever before with more and
more iPhones, Androids, tablets and laptops laying around in any given home. It
is important that each device get the speed and coverage it deserves.
3 Signal Strength Indicators – Intuitively Clear
3 signal LED show the strength of signal that DAP-1720 receives from existing
router or access point. If signal is weak, DAP-1720 should be relocated to a
wall outlet closer to the source wireless router, which really help to find the
best location for your range extender quickly and easily.
Specifications
Connectivity |
IEEE 802.11 ac/n/g/b/a wireless LAN |
|
3x3 MIMO Configuration |
|
10/100/1000 Gigabit Ethernet Port |
Device Interfaces |
Power Switch |
|
Reset Button |
|
WPS Button |
LEDs |
Status/WPS |
|
3 Segment Wi-Fi Signal Strength Indicator |
MIMO Configuration |
3 Transmit |
|
3 Receive |
Antenna Type |
Three Adjustable External Antennas |
|
|
Data Signal Rate |
|
2.4 GHz |
up to 450 Mbps1 |
5 GHz |
up to 1300 Mbps |
|
|
Standards |
IEEE 802.11ac |
|
IEEE 802.11n |
|
IEEE 802.11g |
|
IEEE 802.11b |
|
IEEE 802.11a |
|
IEEE 802.3ab |
Minimum Requirements |
Windows 10/8/7/Vista or MAC OS X 10.6 or higher |
|
Internet Explorer 10, Firefox 28, Safari 6, or Chrome 28 or higher with
Java installed and enabled |
|
Wired or Wireless Network |
Plug Type |
Region-dependent |
|
|
Functionality |
|
Wireless Security |
Wi-Fi Protected Access (WPA/WPA2) |
|
WPS (PBC) |
Advanced Features |
D-Link One-Touch Extender Setup |
Device Management |
Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android
mobile devices |
|
Web-based management user interface |
|
|
Physical |
|
Dimensions |
162.9 x 84 x 37.8 mm (6.41 x 3.30 x 1.49 in) |
Weight |
229 grams (8.08 ounces) Power • Input: 100 to 240 V AC,
50/60 |
Temperature |
Operating: 0 to 30 °C (32 to 86 °F) |
|
Storage: -20 to 65 °C (-4 to 149 °F) |
Humidity |
Operating: 10% to 90% non-condensing |
|
Storage: 5% to 95%
non-condensing |
