All stock codes associated to this product
PSTPD0650FNFAPA1, PS-TPD-0650FNFAPA-1, II40361

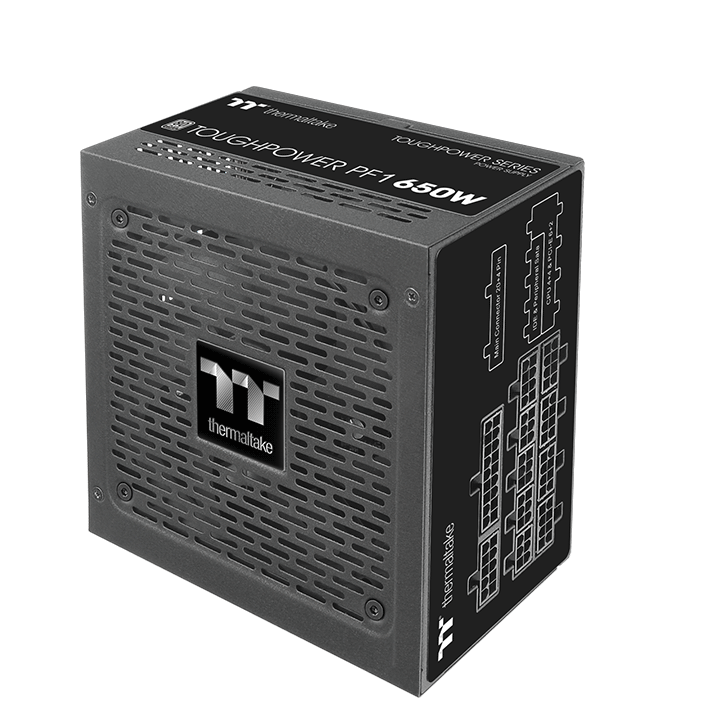

Thermaltake Toughpower PF1 650W - TT Premium Edition
Overview
80 PLUS Platinum certified fully modular PSU with Hydraulic Bearing fan.
The Toughpower PF1 Platinum Series comes in 850W/750W/650W and delivers 80
PLUS Platinum efficiency. Besides the fundamental features listed below, The PF1
Platinum Series has two other critical characteristics compact size and our new
board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L),
the PF1 prides its ample space for cable management. The new board technology
offers single sided SMD which all IC chips are set to only one side, allowing
the heat to only be accumulated on one side so the entire board can be covered
and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan.
- Durable Chassis
- Concentrated Compression Fan Blade
- DC to DC Design
- Modular Cable Management
- Side Ventilation Design
- Anti-Vibration Mounting System
- 100% High Quality Japanese 105C / 221F Capacitors
- Single Side SMD and Zero Cable Platform

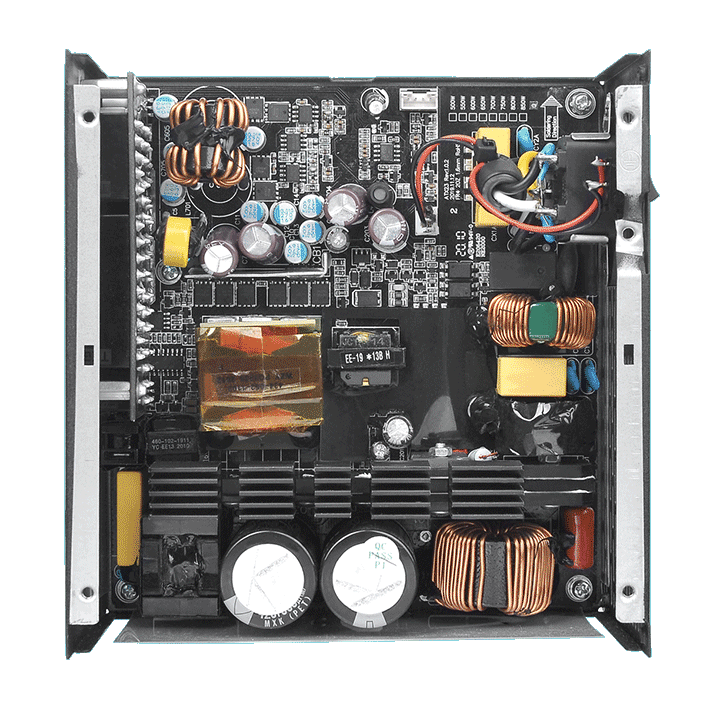

New Board Technology Offering Single Side SMD
The new design of the PCB allows all SMDs to sit on the top side of the PSUs
PCB. This design not only prevents heat accumulation at the bottom of the PSU
but also allows cold air to pass through with the 120mm Hydraulic Bearing Fan
covering the entire set of components, keeping the PSUs temperature low.
Compact Design with 140mm Depth
The Toughower PF1 Plainum Series is designed to be compact with size of 140mm
(D) x 86mm (H) x 150mm (L) which provides ample space for cable
management.
Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help
guarantee superior cooling performance and near silent operation.

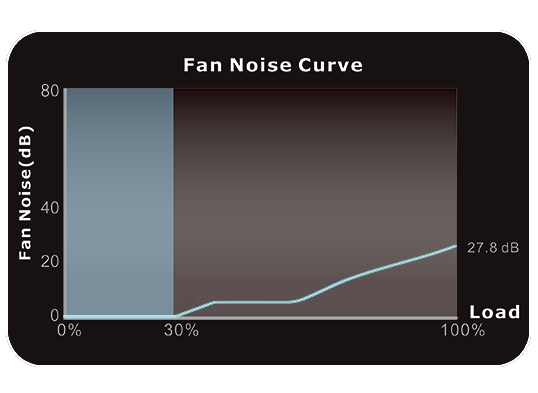

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load
exceeds 30% of the power supply, minimizing the fan noise.
30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to
ensure a stable operation and keep your performance-critical components to
function reliably for longer.
Extremely Strict Voltage Regulation 2%
The voltage regulation, more strict than Intels standard 5% for major rails
and 10% for -12V, is set to no more than 2% for major rails to meet the highest
performance.

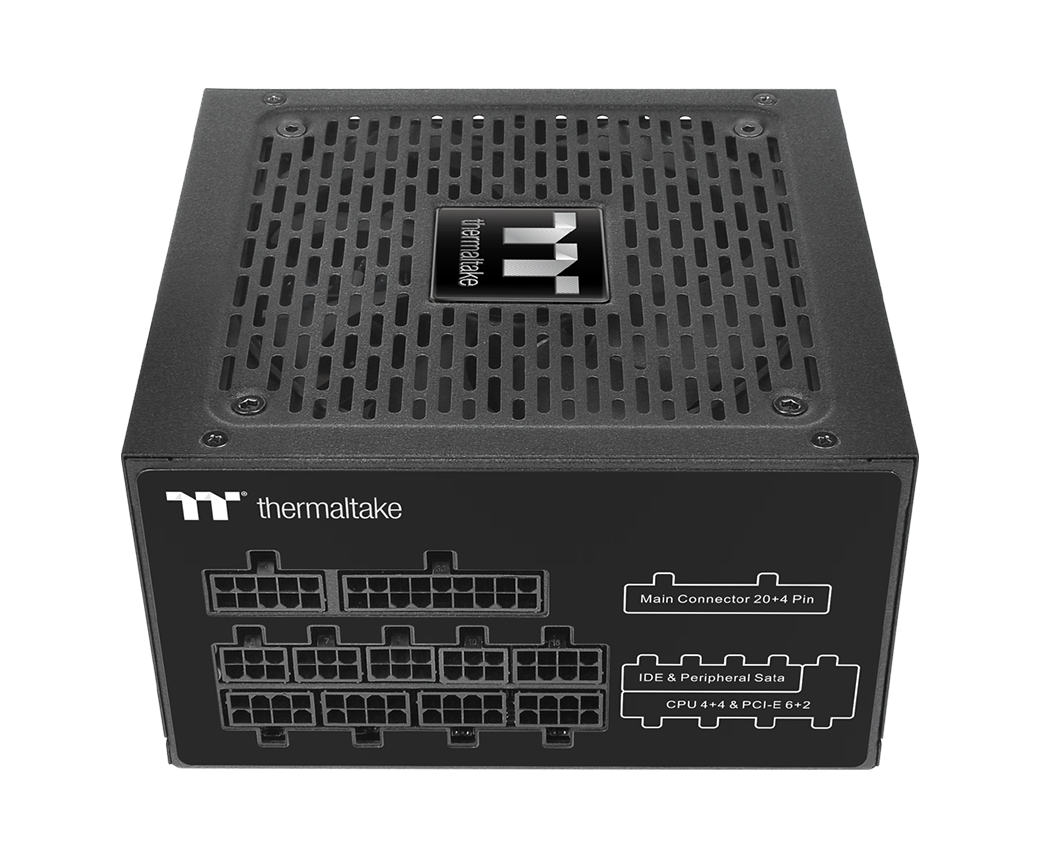

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous
voltage. Low-profile flat black cable makes cable management easier, reduces
clutter and increases airflow inside the chassis.
Premium Japanese 105C/221F Capacitors
Providing great durability as well as offering the highest stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC
components.
80 PLUS Platinum Certified and Intel C6/C7 States
Ready
Toughpower PF1 Platinum series saves energy through its high energy
efficiency up to 90% and is certified to 80 PLUS Platinum. The series has been
optimized to work with all generations of Intels processors to achieve maximum
energy saving.

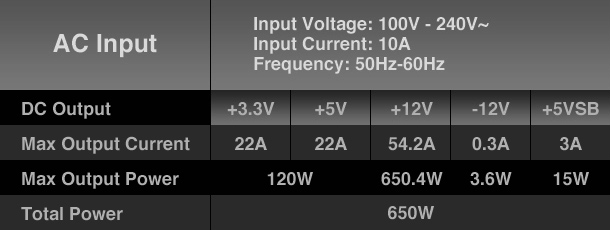

Specifications
|
P/N |
PS-TPD-0650FNFAPA-1 |
|
WATTS |
650W |
|
MODEL |
TTP-650AH2FKP |
|
MAX. OUTPUT
CAPACITY |
650W |
|
PEAK OUTPUT
CAPACITY |
780W |
|
COLOR |
Black |
|
DIMENSION ( W / H /
D ) |
150mm(W) x 86mm(H) x
140mm(D) |
|
PFC (POWER FACTOR
CORRECTION) |
Active
PFC |
|
POWER GOOD
SIGNAL |
100-500
msec |
|
HOLD UP
TIME |
> 16msec at 100% of
full load |
|
INPUT
CURRENT |
10A |
|
INPUT FREQUENCY
RANGE |
50Hz -
60Hz |
|
INPUT
VOLTAGE |
100V
240V |
|
OPERATING
TEMPERATURE |
5C to +
50C |
|
OPERATING
HUMIDITY |
20% to
85%,non-condensing |
|
STORAGE
TEMPERATURE |
-40C to +
55C |
|
STORAGE
HUMIDITY |
10% to 95%,
non-condensing |
|
COOLING
SYSTEM |
12cm hydraulic bearing
fan |
|
EFFICIENCY |
Meet 80PLUSPlatinum at
115Vac input. |
|
MTBF |
120,000 hrs
minimum |
|
SAFETY
APPROVAL |
OVP/OCP/CE/UL/TV/FCC/BSMI/CCC/
EAC |
|
PCI-E
6+2PIN |
4 |
