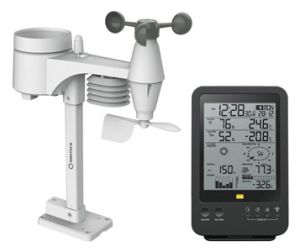

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency signal (917MHz band) to the main display unit up to 150m away (line of sight).
The main display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.
The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.
Features:
Indoor &Outdoor Temperature (C or F)
Min/Max Records
Indoor &Outdoor Hygrometer
Wind Speed (m/s, km/h, mph, or knots)
Wind Direction
Wind Chill
Dew Point
Heat index
Rain Gauge (in or mm)
Rain Rate
Barometric Pressure (hPa, inHg, or mmHg)
Moon Phase
Time/Date Display
High/Low Alarms
12 Hour Forecast
Rainfall and Barometer Histogram
Specifications:
| Transmission frequency : 917.0MHz |
| Transmission power : 917.0W |
| Transmission range : 150.0m |
| Pressure Range : 54.0kPa, 110.0kPa |
| Relative Humidity : true |
| Relative humidity range : 20.0%, 90.0% |
| RH Humidity measure accuracy +/- : 5% |
| Sensor Type : Rocker Collector (Continuous Flow) |
| Maximum Rainfall Reading : 9999.0mm |
| Measures in Celcius : true |
| Outdoor / Exterior Scale : -40.000000°C, 65.0°C |
| Measures in Fahrenheit : true |
| Wind Speed Range : 0.0km/h, 180.0km/h |
| Measures Wind Direction : true |
| Displays speed in km/h : true |
| Displays speed in knots : true |
| Display Type : LCD |
| Display Height : 165.0mm |
| Display Width : 90.0mm |
| Display Backlight : LED Backlit |
| Display colour : Monochrome |
| Width : 120.0mm |
| Height : 190.0mm |
| Depth : 22.0mm |
| Weight : 370.0g |
| Battery used for : Transmitter |
| Size / Shape : AA |
| Battery quantity : 3.0pc |
| Weather Station Style : Weather Station |
| Storm Warning : true |
| Calender : true |
| Sensor Type : Remote wireless sensor |
| Sensor Battery Size : AA |
| Sensor Battery Quantity : 3.0pc |
| Sensor Battery Type : Alkaline |
| Dimensions details : Remote Sensor |
| Width : 343.0mm |
| Height : 393.0mm |
| Depth : 136.0mm |
| Dimension details : Active Display Area |
| Width : 90.0mm |
| Height : 120.0mm |
