All stock codes associated to this product
VG2448, VG2448, 4117427, 766907931112, MNV-VG2448

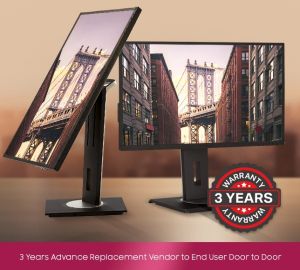

Viewsonic 24" Advanced Ergonomics Business Monitor
Overview
- vDisplay Manager (free download)
- Narrow bezel
- HDMI, DisplayPort and VGA inputs
- SuperClear IPS technology
- Versatile stand design
ViewSonic VG2448 is a 24 (23.8 viewable) 1080p monitor with productivity
enhancing features including IPS technology and an advanced ergonomic design for
the modern day office. Utilising SuperClearIPS
technology and 1080p resolution, VG2448 delivers a crisp, clear image from any
viewing angle. An advanced ergonomic design offers the widest range of
customisable adjustments currently available to provide maximum comfort,
including dual direction pivot, swivel, height adjustment, and an impressive 40
tilt, which enables you to use the monitor while standing and to have strategic
group discussions around the screen. VG2448 uses environmentally friendly
packaging and offers quick and easy out-of-the-box set-up via the Quick Release
stand. The cloud client mountable stand coupled with cable management design
features, makes VG2448 perfect for deployment in cloud-based environments.
Versatile connectivity options include HDMI, DisplayPort, VGA, and USB 3.0
inputs.
Specifications
|
DISPLAY
|
Monitor
Size: 24W
(23.8 Viewable) |
|
Panel
Technology: SuperClear
IPS TFT LCD |
|
Resolution: FHD
1920 x 1080 |
|
Display
Area: 527.04
mm (H) x 296.46 mm (V) |
|
Aspect
Ratio: 16:9 |
|
Brightness: 250
cd/m2 (Typ) |
|
Contrast
Ratio: 1000:1
(Typ) |
|
Dynamic
Contrast Ratio: 50,000,000:1 |
|
Viewing
Angle: 178
/ 178 (Typ) |
|
Response
Time: 5ms
(GtG) |
|
Refresh
Rate (Hz): 60 |
|
Colour
Gamut: Adobe
RGB: 77% size / 72% coverage
(Typ) |
|
NTSC:
72% size (Typ) |
|
sRGB:
103% size / 92% coverage (Typ) |
|
Response
Time: 5ms
(GtG) |
|
INPUT
SIGNAL |
Frequency: Fh
= 24 ~ 82KHz ; Fv = 50 ~ 75Hz |
|
Sync: Separate
Sync / Composite Sync / Sync on Green |
|
COMPATIBILITY
|
PC: Windows
7, Windows 8, Windows 10 certified |
|
Mac: Power
Mac tested |
|
CONNECTOR
|
Digital: HDMI
x 1 (v1.4 compatible) |
|
DisplayPort
x 1 (v1.2 compatible) |
|
Analog: VGA
x 1 |
|
SPEAKERS
|
2W
x 2 |
|
USB
|
Up
Stream:Type B x 1 |
|
Down
Stream:Type A x 4 |
|
POWER
|
Power: 3-pin
plug (CEE22) x 1 |
|
Voltage: AC
100-240V (Universal); 50/60Hz |
|
Consumption: 21W |
|
Optimize: 18W |
|
Conserve: 15W |
|
ERGONOMICS
|
Tilt: 40
~ -5 degrees |
|
Swivel: 120
degrees |
|
Pivot: 180
degrees |
|
Height
Adjustment: 0
~ 130mm |
|
WALL
MOUNT |
VESA: 100mm
x 100mm |
|
OPERATING
CONDITIONS |
Temperature
( F / C): 32F
to 104F (0C to 40C) |
|
Humidity: 20%
to 90% (no condensation) |
|
DIMENSIONS
(W x H x D) (mm) |
Physical
with stand (mm): 549
mm (W) x 517 mm (H) x 202 mm (D) |
|
Physical
without stand (mm): 549
mm (W) x 326 mm (H) x 50 mm (D) |
|
Packaging
(mm): 604
mm (W) x 385 mm (H) x210 mm (D) |
|
WEIGHT
|
Net
with stand (kg): 5.82kg |
|
Net
without stand (kg): 3.44kg |
|
Gross
(kg): 8.71
kg |
|
REGULATIONS
|
cTUVus,
FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, S-mark, MX-CoC, Mexico
Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 8.0, EAC, UkrSEPRO,
GS, BSMI, RCM, GEMS, VCCI, PSE, BIS, CCC, China RoHS, China Energy
Label |
|
PACKAGE
CONTENTS |
LCD
Display |
|
Power
Cable |
|
DisplayPort
Cable |
|
USB3.0
Upstream Cable |
|
Quick
Start Guide |
|
*Actual
content may differ from market to market |
|
LCD
Display |
|
Power
Cable |
|
DisplayPort
Cable |
|
USB3.0
Upstream Cable |
|
Quick
Start Guide |
