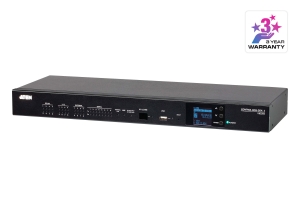

Aten Control System - Control Box Gen 2
Overview
VK2200, ATENs second-generation Control Box, boasts the highest performance
processor within the series. Equipped with a quad-core CPU and 2 GB / 1 GB
memory, VK2200 provides real-time response and status updates and can process
complex, high-loading events with customized GUI designs, as well as multiuser
access control to connected devices. VK2200 features dual, isolated LAN ports
Control LAN and LAN. The Control LAN allows managed devices to be securely
protected within a separate network, independent from the corporate network, for
fulfilling high-security and stability demand. On the other hand, the LAN can be
connected to ATEN Unizon, a centralized platform streamlining daily AV / IT
management, which provides users with the convenience to monitor, troubleshoot,
and maintain multiple systems all at once.
The VK2200 Control Box can be used to easily manage any room setting, and can
be deployed into an existing installation by seamless integration with ATEN
VanCryst ProAV products, as well as nearly any hardware or software device found
in a room, including AV equipment, lighting, conference systems, air
conditioning, motion sensors, power switches, and many more. VK2200 is the
perfect solution for managing mass device deployments especially in strict
security settings with high performance requirements, such as government
agencies, military facilities, corporate organizations, and healthcare
institutions.
VK2200 is a part of ATENs Control System Series, a standard Ethernet-based
management system, which consists of hardware, configurator software, control
interfaces and related services, to control any hardware and software devices
within a room setting, such as boardrooms and lecture halls, and to provide
direct, centralized management effortlessly via user-defined GUIs from any
mobile device, ATEN Keypad and Touch Panel.
Package Contents
- 1x VK2200 Control Box Gen. 2
- 1x power cord
- 1x foot pad set (4 pcs)
- 1x rack mount kit
- 1x terminal block kit
- 1x user instructions
Diagram
Specifications
|
Memory |
|
SDRAM |
2GB |
|
Flash |
8GB |
|
Interfaces |
|
Serial |
2
x Programmable Bi-directional RS-232/422/485
Port |
|
(2
x 5-Pole Terminal Block Connector, configurable via pin
assignments); |
|
Baud
Rate: 300 to 115200 (default: 9600); |
|
Data
Bit: 8 (default) or 7; |
|
Stop
Bit: 1 (default) or 2; |
|
Parity:
None (default), Even or Odd; |
|
Flow
Control: None (default) or RTS/CTS |
|
6
x Bi-directional RS-232 Port |
|
(6
x 3-Pole Terminal Block Connector); |
|
Baud
Rate: 300 to 115200 (default: 9600); |
|
Data
Bit: 8 (default) or 7; |
|
Stop
Bit: 1 (default) or 2; |
|
Parity:
None (default), Even or Odd |
|
IR/Serial |
8
x Programmable IR / Uni-directional RS-232
Port |
|
(4
x 4-Pole Terminal Block Connector); |
|
IR:
TTL level (0 to 5 V) |
|
Carrier
Frequency: 10KHz~455KHz; |
|
Serial:
Uni-directional RS-232 (0 to 5 V) |
|
Baud
Rate: 300 to 115200 (default: 9600); |
|
Data
Bit: 8 (default) or 7; |
|
Stop
Bit: 1 (default) or 2; |
|
Parity:
None (default), Even or Odd |
|
Relay |
8
x Relay Channel (4 x 4-Pole Terminal Block
Connector); |
|
Normally
open, isolated Relays; |
|
Contact
Rating: Max 24 VDC, 2A |
|
I/O |
8
x Programmable Digital Input / Output Channel |
|
(2
x 5-Pole Terminal Block Connector); |
|
Digital
Output: |
|
300
mA sink from 24 VDC |
|
Digital
Input: |
|
VDC
Mode |
|
Input
Voltage Range: 0 to 24 VDC; |
|
Programmable
Range: 1 to 24 VDC; |
|
Dry
Contact Mode |
|
Pull-up
2k ohms to + 12 VDC |
|
Ethernet |
2
x RJ-45 Female, 10/100/1000Base-T |
|
Supported
Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
|
Control
LAN: |
|
Support
DHCP Server |
|
DHCP
mode - The following default IP settings will be used if no IP is assigned
within 30 seconds: |
|
IP:
192.168.0.60 |
|
Subnet
Mask: 255.255.255.0 |
|
LAN: |
|
DHCP
mode - The following default IP settings will be used if no IP is assigned
within 30 seconds: |
|
IP:
192.168.1.60 |
|
Subnet
Mask: 255.255.255.0 |
|
VDC |
4
x 12 VDC Output Port (2 x 4-Pole Terminal Block
Connector); |
|
Power
Supply: 12 VDC, 2A Max (shared by 4 ports) |
|
USB |
1
x USB Type A |
|
Switches |
|
Power |
1
x On/Off Switch |
|
IR
Learning |
1
x IR Receiver LED |
|
Panel
Spec |
|
Size |
1.6" |
|
Resolution |
128x64 |
|
Pushbuttons |
|
Select |
3
x Pushbuttons (Up, Down, Enter) |
|
Reset
Button |
1
x Semi-recessed Pushbutton |
|
Power
Consumption |
AC110V:5.7W:139BTU |
|
AC220V:6.8W:144BTU |
|
Power |
|
Maximum
Input Power Rating |
Internal
Power: 100-240 VAC, 50-60 Hz |
|
Environmental |
|
Operating
Temperature |
0 50C |
|
Storage
Temperature |
20 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
2.62
kg ( 5.77 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 16.32 x 4.40 cm |
|
(17.02
x 6.43 x 1.73 in.) |
|
License |
|
Basic
(free) |
2
free licenses |
|
Max.
No. Allowed |
32
licenses |
|
Note |
The
ATEN Control Box comes with two free licenses which are stored in the
device itself. Each time a mobile device connects to an ATEN Control Box
for remote control, one license on the Control Box will be occupied. To
purchase and add additional licenses to your ATEN Control Box, contact
your local sales representative for more
information. |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
