All stock codes associated to this product
TS1TMTE110S, 4408688, 760557843146

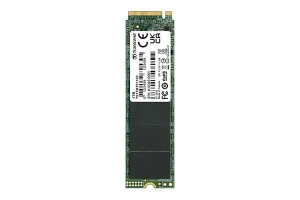

Transcend PCIe SSD 110S & 112S - 1TB
Overview
Transcend's PCIe SSD 110S/112S utilizes the PCI Express Gen3 x4 interface
supported by the latest NVMe standard, to unleash next-generation performance.
The PCIe SSD 110S/112S aims at high-end applications, such as digital
audio/video production, gaming, and enterprise use, which require constant
processing heavy workloads with no system lags or slowdowns of any kind. Powered
by 3D NAND flash memory, the PCIe SSD 110S/112S gives you not only fast transfer
speeds but unmatched reliability.
Specifications
|
Appearance |
|
Dimensions |
Single-sided:
80 mm x 22 mm x 2.23 mm (3.15" x 0.87" x
0.09") |
|
Double-sided:
80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x
0.14") |
|
Weight |
8
g (0.28 oz) |
|
Type |
M.2
2280 |
|
Interface |
|
Bus
Interface |
NVMe
PCIe Gen3 x4 |
|
Storage |
|
Flash
Type |
3D
NAND flash |
|
Capacity |
1
TB |
|
Operating
Environment |
|
Operating
Temperature |
0C
(32F) ~ 70C (158F) |
|
Operating
Voltage |
3.3V5% |
|
Performance |
|
Sequential
Read/Write (CrystalDiskMark) |
1 TB |
|
up
to 1,700/1,400 MB/s |
|
4K
Random Read/Write (IOmeter) |
1 TB |
|
up
to 200,000/300,000 IOPS |
|
Terabytes Written
(TBW) |
1 TB |
|
400
TBW |
|
Mean
Time Between Failures (MTBF) |
2,000,000
hour(s) |
|
Drive
Writes Per Day (DWPD) |
0.2
(5 yrs) |
|
Note |
Speed
may vary due to host hardware, software, usage, and storage
capacity. |
|
The
workload used to rate DWPD may be different from your actual workload,
which may vary due to host hardware, software, usage, and storage
capacity. |
|
Terabytes
Written (TBW) expresses the endurance under the highest
capacity. |
|
Some
motherboards only provide PCIe x2 connections for the M.2 slot, creating a
bottleneck on even the fastest drives. |
|
Warranty |
|
Certificate |
CE/ |
|
FCC/ |
|
BSMI/ |
|
KC/ |
|
RCM |
|
Warranty |
Five-year
Limited Warranty |
|
Warranty
Policy |
Please
click here for more information about the Transcend Warranty
Policy. |
|
Warranty
does not apply when SSD Scope's lifetime indicator displays 0% within the
warranty coverage. |
|
System
Requirement |
|
Operating
System |
Microsoft
Windows 11 |
|
Microsoft
Windows 7 (additional driver required) |
|
Microsoft
Windows 8 (additional driver required) |
|
Microsoft
Windows 10 |
|
Linux
Kernel 2.6.31 or later |
|
Note |
Systems
for use with the PCIe M.2 SSD must have an M.2 connector with only an M
key. B-key connectors are not compatible. Improper insertion may lead to
damage. Please click here for more
information. |
|
Technology |
|
S.M.A.R.T. |
Yes |
|
Advanced
Garbage Collection |
Yes |
|
RAID
Engine |
- |
|
LDPC
Coding |
Yes |
|
DRAM
Cache |
- |
