In-win 650W P65F Power Supply
Overview
High-Performance Without Compromise
The PF Series is an 80 PLUS Gold certified power supply with up to 90%
efficiency. It features a powerful single +12V rail design and multi-protection
safeguards, which can provide reliability and great performance for high-end
components. The PF Series offers high-performance without compromise, a great
option for budget builds
80 PLUS Gold Certified for High Efficiency
The PF Series is an 80 PLUS Gold certified power supply that delivers up to
90% conversion efficiency which can generate less heat, effectively lowering
energy consumption and noise.
Smart Thermal Control to Balance Cooling and Noise
Pollution
The PF Series utilizes a smart temperature-controlled fan design. It
automatically detects the heat to adjust the fan speed accordingly. It achieves
the optimal balance between silent operation and excellent thermal
performance.
Single +12V Rail Design
Powerful single +12V rail design supplies strong and reliable energy to
high-performing components.
5V and 3.3V DC to DC Design
Equipped with 5V and 3.3V DC to DC converter design, the PF Series provides a
superior dynamic response, and supports a foundation for greater system
stability.
Multi-Protection Safeguards
The PF Series comes with plenty of safeguards against over-currents,
over-and-under voltages, short circuits, over-heating and over-power. These
precautions are to ensure quality and safe power usage.
\
Specifications
|
Model |
P65F |
|
Model
Number |
IW-PS-PF650W |
|
Total
Power |
650W |
|
Materials |
SECC |
|
Type |
ATX12V
V2.52 |
|
Cable
Management |
Non-Modular
Cables |
|
PFC |
Active
PFC (> 0.95) |
|
Efficiency |
80
PLUS Gold (Up to 90%) |
|
MTBF
(Hours) |
>
100,000 hrs. |
|
AC
Input |
100-240Vac,
8-10A, 50-60Hz |
|
Fan |
120mm
Sleeve Bearing Fan |
|
Typical
Load Fan Noise(dBA) (50% Loading) |
<
25dBA |
|
Operating
Temperature Range (C) |
0~40
C |
|
Full
Protection |
OCP
/ OVP / UVP / SCP / OTP / OPP |
|
Safety
Certifications |
cTUVus
/ TUV / CB / CE / CCC / FCC / RCM / BSMI |
|
Product
Dimensions(L x W x H) |
140
x 150 x 86 mm |
|
Package
Dimensions(L x W x H) |
280
x 210 x 105 mm |
|
Net
Weight |
1.54
kg |
|
Gross
Weight |
2.0
kg |
|
Warranty |
5
Years |
|

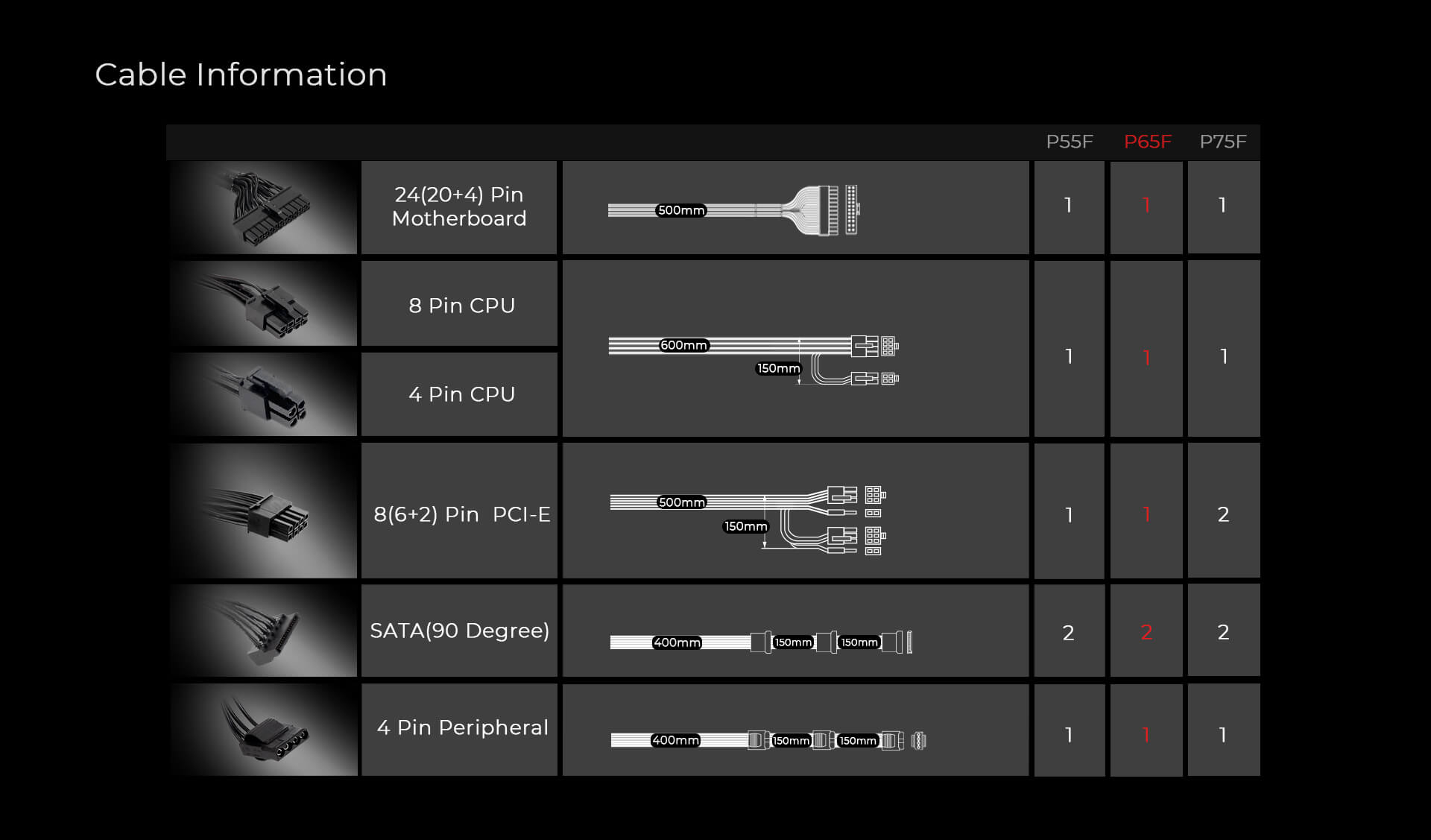

Connectors |
20+4
Pin Motherboard |
1 |
|
8-Pin
CPU |
1 |
|
4-Pin
CPU |
1 |
|
8
(6+2) Pin PCI-E |
2 |
|
SATA
(90 Degree) |
6 |
|
4-Pin
Peripheral |
3 |
