All stock codes associated to this product
VT168HR, 5452908, MNASVT168HR, MNAS-VT168HR, 4711081388258

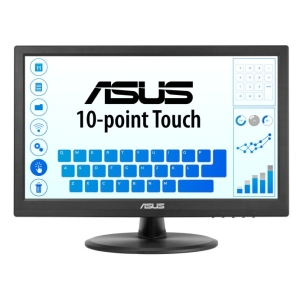

ASUS VT168HR Touch Monitor - 15.6" (1366x768), 10-point Touch, HDMI,
Flicker free, Low Blue Light, Wall-mountable, Eye care
Overview
- 15.6" 10-point touch capacity, suitable for any application that involves
virtual keyboard or multi-touch
- -5 ~30 tilt angle, flexible enough for scenarios as a extend monitor or
POS machine
- Slim Elegant Design with VESA mount (75mm x 75mm)
- Windows 10 compliance test passed device
- ASUS Eye Care monitors feature TV Rheinland-certified Flicker-free and Low
Blue Light technologies to ensure a comfortable viewing experience.
Specifications
|
Display |
Panel
Size (inch) : 15.6 |
|
Aspect
Ratio : 16:9 |
|
Display
Viewing Area (H x V) : 344.23 x 193.54 mm |
|
Display
Surface : Non-Glare |
|
Backlight
Type : LED |
|
Panel
Type : TN |
|
Viewing
Angle (CR10,
H/V) : 90/ 60 |
|
Pixel
Pitch : 0.252mm |
|
Resolution
: 1366x768 (WXGA ) |
|
Brightness
(Typ.) : 220cd/ |
|
Contrast
Ratio (Typ.) : 400:1 |
|
ASUS
Smart Contrast Ratio (ASCR) : 100000000:1 |
|
Display
Colors : 262K |
|
Response
Time : 5ms(GTG) |
|
Refresh
Rate (Max) : 60Hz |
|
Touch
: Yes (PCAP Touch) |
|
Flicker-free
: Yes |
|
Video
Feature |
Trace
Free Technology : Yes |
|
SPLENDID
Technology : Yes |
|
Color
Temp. Selection : Yes(4 modes) |
|
QuickFit
: Yes |
|
HDCP
: Yes, 1.4 |
|
Low
Blue Light : Yes |
|
Audio
Feature |
Speaker
: No |
|
I/O
Ports |
HDMI(v1.4)
x 1 |
|
VGA
x 1 |
|
Power
Consumption |
Power
Consumption : 8W |
|
Power
Saving Mode : <0.5W |
|
Power
Off Mode : <0.5W |
|
Voltage
: 100-240V, 50/60Hz |
|
Mechanical
Design |
Tilt
: Yes (+30 ~ -5) |
|
Height
Adjustment : No |
|
VESA
Wall Mounting : 75x75mm |
|
Kensington
Lock : Yes |
|
Dimensions
(Esti.) |
Phys.
Dimension with Stand (W x H x D) : 377.8 x 280.7 x 189.4
mm |
|
Phys.
Dimension without Stand (W x H x D) : 377.8 x 235.9 x 44
mm |
|
Box
Dimension (W x H x D) : 433.8 x 349.7 x 122 mm |
|
Weight
(Esti.) |
Net
Weight with Stand : 1.51 Kg |
|
Gross
Weight : 2.93 Kg |
|
Accessories
(vary by regions) |
HDMI
cable |
|
Power
cord |
|
Quick
start guide |
|
USB
Type-B to A cable |
|
VGA
cable |
|
Warranty
Card |
|
Certificate |
TV Flicker-free |
|
TV Low Blue Light |
