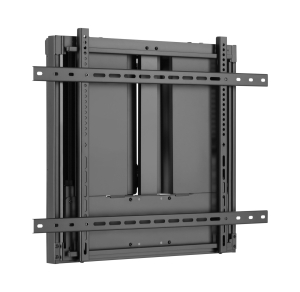

Brateck Height-Adjustable Wall Mount for Interactive Displays 70"-90"
up to 60~90 kg
Overview
With a light hand touch, the HAW400-90 allows the display to be raised or
lowered at any position and a compact design allows it to fit nicely behind the
screen when not in use. A high-grade black powder-coated finish provides an
attractive anti-scratch surface that complements any decor. With the weight
balance design and multiple VESA size options, the HAW400-90 will fit most any
whiteboard or display in the market today. Keyhole pattern makes installation
easy and quick.
- Smooth and Effortless Height Adjustment: high-low adjustment with finger
touch positioning
- Weight Balance Design: easily accommodates the different weights of
displays
- Keyhole Pattern: allows for easy installation
- Compact Design: allows the mount to hide behind the screen when not in
use
- High Quality Powder-Coated Finish: features a stylish anti-scratch
surface
Specifications
|
Product
Category |
Interactive
Whiteboard Wall Mount, Interactive Display Mount &
Stand |
|
Material |
Aluminum,Steel,Plastic |
|
Metal
Sheet Thickness |
Bracket
Arm THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket
Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling
sheet) |
|
Surface
Finish |
Powder
Coating,Electroplating |
|
Color |
Matte
Black |
|
Dimensions |
127x840x660mm
(5"x33.1"x26") |
|
Fit
Screen Size |
70"-90" |
|
Fit
Curved TV |
No |
|
VESA
Compatible |
200x200,300x200,400x200,300x300,400x300,400x400,600x400,700x400,800x400,800x500,800x600 |
|
Max.
Mounting Hole |
800x600 |
|
Weight
Capacity |
60~90kg
(132lbs~198lbs) |
|
Profile |
127mm
(5") |
|
Screen
Freely Tilting |
No |
|
TV
Height Range |
400mm
(15.7") |
|
Installation |
Solid
Wall,Double Stud(406mm/450mm) |
|
Panel
Type |
Detachable
Panel |
|
Wall
Plate Type |
Fixed
Wall Plate |
|
AV
Component Shelf |
No |
|
Direction
Indicator |
Yes |
