All stock codes associated to this product
K37060AP, 5604842

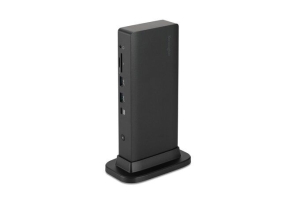

Kensington SD4849Pv USB-C Triple Video Driverless Docking Station
with 100W Power Delivery
Overview
If youre looking for an easy-to-use plug-and-play USB-C docking solution that
offers speed, power and the flexibility to connect up to three monitors, the
SD4849Pv USB-C Triple Video Driverless Docking Station is the ideal solution. No
drivers, downloads or updates necessary - just plug it in and go. 100W Power
Delivery keeps your laptop charged, while 10Gbps transfer speed ensures
productivity is never compromised. With thirteen ports in all, youll have the
flexibility to add multiple devices without additional dongles or
adapters.
- Best For: Any USB-C laptop running Windows 10 or later
- Connection Technology: USB-C
- Power Delivery: Supports USB-C PD 3.0 (100W of laptop
charging)
- Compatibility: Windows 10 or later
- No. of Monitors Supported: 3
- Video Ports: 2 x HDMI, 1 x DP1.4++ and 1 x VGA
- Maximum Resolution Supported: Single or Dual 4K @ 60Hz and Triple 4K at
30Hz when connected to a DP1.4 HBR3 device with DSC enabled. For VGA monitors,
the maximum resolution supported in any combination is 1080p @
60Hz
- Plug & play installation, though installation of Kensington DockWorks
software is recommended for the best connection, performance and security from
your Kensington universal docking station
- System Requirements: Driverless - no firmware or software required for
setup
- Warranty: 3 Years
Specifications
|
Connection
technology |
USB-C
Alt Mode |
|
Driverless |
Yes |
|
Number
of Screen Outputs |
3 |
|
Video
ports |
DisplayPort++,
HDMI, VGA |
|
Maximum
resolution |
4K |
|
Power
delivery |
100W |
|
Operating
system(s) |
Windows |
|
Number
of USB ports |
5 |
|
USB
fast charging |
Yes |
|
Docking
station family |
The
Task Master |
|
DockWorks |
Yes |
|
Best
For |
USB-C
Laptops & Ultrabooks that support Power Delivery and Monitors that
support up to 4K |
|
Compatibility |
Windows
10 or above |
|
Card
Reader |
SD
Cards and Micro SD card slots (UHS-I, SD3.0) |
|
USB-A
ports |
4
x: (2) USB 3.2 Gen2 (front) with 5V/0.9A (2) USB 2.0
(back) |
|
USB-C
ports |
1
x USB-C 3.2 Gen2 (front) with 5V/1.5A charging |
|
Audio |
1
x 3.5mm Combo Microphone & Headphone Port
(front) |
|
Data
transfer speeds |
Supports
up to 10Gbps data transfer speed |
|
Ethernet
Speed (Mbps) |
1000,
100, 10 |
|
Maximum
resolution supported |
Minimum
Resolution (DP1.2/HBR2): Single 4K @ 30Hz Dual 1080p @ 60Hz Triple
1600x900 @ 60Hz // Maximum Resolution (DP1.4/HBR3): Single 4K @ 60Hz Dual
4K @ 60Hz Triple 1080p @ 60Hz |
|
Period
of Warranty |
3
years |
|
Plug
& play |
Plug
& play installation without need for drivers or
downloads |
|
System
requirements |
Host
device must support Power Delivery and DisplayPort Alt mode over
USB-C |
|
USB-C
Power Delivery |
Supports
USB-C PD 3.0 (100W of laptop charging) |
|
Video
output |
1
x VGA, 2 x HDMI v2.0, 1 x DisplayPort++ v1.4 |
|
4K
support |
Yes |
