All stock codes associated to this product
TS-133, TS133, QN15211

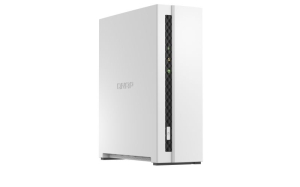

QNAP TS-133 ARM 4-core Cortex-A55 1.8GHz processor, 2 GB on board
(non-expandable)
Overview
Run your own personal cloud storage and enjoy easy file access, sharing, and
syncing with the TS-133. Designed to enhance collaboration and increase remote
work productivity, the TS-133 also features rich multimedia applications and
provides a complete home entertainment portal.
Centralized multimedia management
Centrally store photos, music, and videos; easily browse, organize, and share
multimedia files.
AI-powered image recognition
With a built-in NPU (Neural network Processing Unit) processor, the TS-133
boosts performance for high-speed face and object recognition.
Home entertainment center
Supports ARM NEON technology that accelerates video processing for a greater
entertainment experience.
Secure remote access
myQNAPcloud allows you to easily access, manage, and share NAS files via the
Internet.
Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks by
using advanced snapshot protection.
Comprehensive security management
Serves as a secure private cloud and supports user account protection, IP
blocking, 2-step verification, encryption access, and more.
Specifications
|
CPU |
ARM
4-core Cortex-A55 1.8GHz processor |
|
CPU
Architecture |
Yes |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes |
|
System
Memory |
2
GB on board (non-expandable) |
|
Note:
Reserves some RAM for use as shared graphics
memory. |
|
Maximum
Memory |
2
GB on board (non-expandable) |
|
Flash
Memory |
4
GB (Dual boot OS protection) |
|
Drive
Bay |
1
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Gigabit
Ethernet Port (RJ45) |
1 |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
USB
2.0 port |
1 |
|
USB
3.2 Gen 1 port |
1 |
|
Form
Factor |
Tower |
|
LED
Indicators |
System
Status, LAN, HDD |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
7.38
x 2.6 x 6.2 inch |
|
Weight
(Net) |
1.34
lbs |
|
Weight
(Gross) |
2.8
lbs |
|
Operating
Temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
36W
Adapter, 100-240V |
|
Power
Consumption: HDD Sleep Mode |
2.74
W |
|
Power
Consumption: Operating Mode, Typical |
7.32
W |
|
Tested
with drives fully populated. |
|
Fan |
1
x 50mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
200 |
