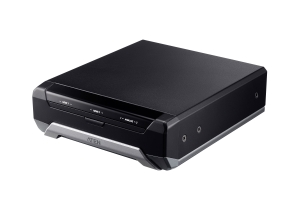

Aten UC3022 CAMLIVE PRO 4K Dual HDMI to USB-C UVC Video Capture
Box
Overview
CAMLIVE PRO allows users to easily mix two 4K video sources and capture to
FHD format for real-time streaming with excellent video quality and image
quality. AMLIVE PRO not only has the functions of video image capture, encoding
and dual-channel video mixing, but also users can switch between HDMI sources
and professional line-level audio equipment, making live broadcast more
distinctive, and in many CDN video stand out in the image. CAMLIVE PRO can
quickly switch and combine multiple connected sources to provide diverse
information in streaming video. In addition, it automatically converts the
signal source to a clear 720P or 1080P USB video format and transmits it to the
user's laptop or smartphone via the USB port.
CAMLIVE PRO provides the user-friendly ATEN OnAir Lite App, allowing users to
quickly complete personal video editing, making PnP arrangement even better in
terms of combining, cropping, and scaling video content. Easily preset up to 8
custom scenes and audio management through an intuitive touch interface. In
addition, you can also use the chroma key to remove the back function to
synthesize the video content and the second video image in the same area as the
specified color to create an eye-catching effect.
CAMLIVE PRO is designed for dual-camera or independent working users to
simplify the tedious live broadcast steps and produce smooth video images, so
that live broadcasters can use the Internet, whether they use ordinary computers
or Mac operating systems, on mainstream live broadcast platforms or In remote
meetings, broadcast high-quality live broadcasts, such as: YouTube Live,
Facebook, OBS, Microsoft Teams, Microsoft Mixer, Zoom, CameraFi and
Twitch.
CAMLIVE PRO is lightweight and easy to carry. Whether it is capturing,
editing or streaming, it is suitable for any stand-alone real-time streaming
media playback situation. Showing off a flawless live stream that rivals
professional streamers on social media, all you need is CAMLIVE PRO, the ATEN
OnAir Lite app, and a laptop or smartphone.
- Mix and capture 1080P UVC format on PC or mobile device via USB interface,
seamlessly convert two unencrypted 4K instant video images
- Intuitive Android / iOS App Control -
- - Simply set up and connect a camera device, and stream professionally
anywhere
- - Multi-Frame Capture - Users can easily capture multiple frames from a
4K HDMI video source, resize and Place it in different
scenarios
- - Remote Control Interface - Customizable up to 18 hotkey functions,
allowing users to fully control OBS and other streaming
software
- Supports previewing real-time HDMI video images
- Easy-to-use chroma key de-backing function specify a color and combine the
area of the video content with the same color as the second video
- Provides two additional analog audio inputs for audio
mixer
- Supports encrypted video switching mode
- Compatible with USB and Thunderbolt 3 (USB-C)
Specifications
|
connection
interface |
|
video
input |
2
x HDMI Type A Female (Black) |
|
USB
port |
USB
3.2 Gen1 Type-B Male (Blue) |
|
(USB-B
to USB-C and USB-B to USB-A cables are included in the
package) |
|
video
output |
1
x HDMI Type A Female (PGM Video Out, Black) |
|
audio
input |
1x
balanced analog audio via XLR 1x unbalanced
audio |
|
via
RCA |
|
Video
resolution |
Video
input: |
|
2160p30/25/24,
1080p60/50/30/25/24 , 720p60 /50, HDMI |
|
PGM |
|
supported |
|
video) |
|
UVC
capture is not supported - |
|
720p50,
720p60, 1080p24, 1080p25, 1080p30, 1080p50,
1080p60 |
|
2160p24,
2160p25, 2160p30 (encrypted video) |
|
audio
sampling |
16-bit
PCM audio source, 44.1KHz and 48KHz |
|
output |
480@60,
720P@60 & 1080P@60 UVC video data format with UAC
audio |
|
(uncompressed
video format requires USB3.1 bandwidth) |
|
Working
environment |
|
operating
temperature |
0
- 40C |
|
Storage
temperature |
-20
60C |
|
humidity |
0
- 80% RH, non-condensing |
|
hardware
requirements |
PC
/ Mac : |
|
CPU:
Intel i3 Dual Core 2.8 Ghz and above |
|
RAM:
4GB or more |
|
At
least one USB-C interface or USB-A interface |
|
Smartphone*
: |
|
UVC
capable Android device with USB-C interface |
|
*
For a list of UVC supported devices, please refer to the user guide on the
ATEN website |
|
Operating
system support |
Windows
10 or higher*, macOS X 10.13 or higher, |
|
Android
5.0.1 or iOS 10.1 or higher, with Bluetooth 4.2 or
higher |
|
(supports
Bluetooth Low Energy (BLE) technology) |
|
*Windows
7 requires a driver |
|
Body
attributes |
|
shell
material |
Metal |
|
Weightg |
0.68
kg ( 1.5 lb ) |
|
(grams),
kg (kilograms), lbs (pounds) |
|
Dimensions
- L x W x H |
13.00
x 15.18 x 4.25 cm |
|
cm
(cm), in. (inches) |
(5.12
x 5.98 x 1.67 in.) |
|
Notes |
For
some upper rack models, the dimensions in the specification table (L x W x
H) also represent (W x D x
H) |
