All stock codes associated to this product
VS421HDPIP, 2784145, 0065030858472
| Ports & interfaces |
|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| Features |
|---|
| HD type | Full HD |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported video modes | 1080p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Remote control type | RS232, Telnet, IR |
| Maximum resolution | 1920 x 1200 pixels |
| Material | Aluminium |
| Power |
|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 1 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions |
|---|
| Width | 250 mm |
| Weight | 2.8 kg |
| Height | 44 mm |
| Depth | 435 mm |
| Packaging data |
|---|
| Package width | 414 mm |
| Package height | 141 mm |
| Package depth | 581 mm |
| Package weight | 4.3 kg |
| Packaging content |
|---|
| Mounting brackets included | Yes |
| Plug adapter type | NA, UK, EU, ANZ |
| Manual | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Sustainability certificates | RoHS |
Share an HDMI display between four distinct HDMI audio/video sources, with optional Picture-and-Picture

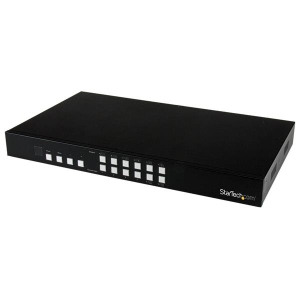

The VS421HDPIP 4-Port HDMI Video Switch with Picture-and-Picture (PAP) lets you connect four HDMI video sources to a single HDMI display with the added benefit of playing all four video sources on your display simultaneously with combined video.
See the Whole Picture
The split-screen multiplexing switch gives you the flexibility of a 4-port video switch with the added benefit of combining two, three or four video sources onto your output display. The switch supports three different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) .
Control Your Output
Fitting your boardroom or digital signage application with a VS421HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture switch increase your communication by a factor of four, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.
Increase the Versatility of Your Display
The VS421HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in a digital signage applications. For security monitoring you can combine four video sources across a single display to view everything more efficiently -- you can even zoom into a single feed for a closer look. For versatile installation options mounting hardware is also included ensuring a tidy professional installation.
The VS421HDPIP is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- See the whole picture by adding multiple HDMI sources to the same display with picture-and-picture
- Control your output and make your digital signage operation easier with remote control operation using Telnet (TCIP/IP Network), or IR (remote control)
- Increase the versatility of your display and save money, with the picture-and-picture technology reducing the number of displays required with up to four video sources on the same display
