All stock codes associated to this product
EATS16N, 3020206, PW87754, 0743172079411, 743172079411
| Power |
|---|
| Output frequency | 50/60 Hz |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Input frequency | 50/60 Hz |
| Performance |
|---|
| Number of phases | 1 |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 8 ms |
| LED indicators | Yes |
| Features |
|---|
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 8 ms |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Input frequency | 50/60 Hz |
| Number of phases | 1 |
| Ports & interfaces |
|---|
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Number of output IEC jumpers | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design |
|---|
| Rack capacity | 1U |
| Form factor | Rackmount |
| Product colour | Black |
| Safety | IEC/EN 62310-1, IEC/EN 60950-1 |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| LED indicators | Yes |
| Display type | LED |
| Technical details |
|---|
| Output frequency | 50/60 Hz |
| Mounting | Horizontal |
| Harmonized System (HS) code | 85078000 |
| Management features |
|---|
| Web-based management | Yes |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 43 mm |
| Weight | 3.5 kg |
| Packaging data |
|---|
| Rack mount kit | Yes |
| Certificates |
|---|
| Safety | IEC/EN 62310-1, IEC/EN 60950-1 |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Other features |
|---|
| Mounting | Horizontal |
| Number of phases | 1 |
| Nominal input voltage | 230 V |
| Packaging content |
|---|
| Rack mount kit | Yes |

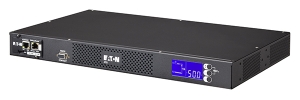

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.
Features - Provides power redundancy to IT equipment - Alternative to expensive redundant power supplies available from networking equipment vendors - Compact, 1U rack form factor - Seamlessly switches from one power source to the other - Network management on ATS 30 and ATS 16 Netpack versions - LCD with metering and basic configuration capabilities
