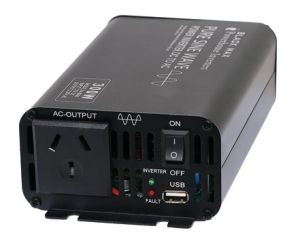

M8060 | Powerhouse Batteries 300W 12V DC To AC Pure Sine Wave Power Inverter

Features

• Isolated design for maximum electrical safety
• Pure sine wave output
• Certified to Australian Standard AS/NZS 4763.2011
• DC/AC isolated design
• Safety authority tested for reliable &safe operation
• Over temperature, over voltage, over load and short circuit protection
• Low voltage cut off
• Excellent voltage regulation
• Binding post connection to battery
• Temperature controlled cooling fan.

About Powerhouse Black Max Inverters
Housed in a rugged aluminium extrusion, this range of Powerhouse inverters was chosen over many others during testing for their robust reliability and unwavering performance - even under severe operating conditions. All others we tested failed our brutal testing regime. We understand that in the field, inverters will be subjected to all kinds of gross overloads and temperature variations and must survive. To be considered for inclusion to our range these inverters had to pass all of our tests. Further, as added peace of mind all models have been submitted and certified to Australian Standard AS/NZS 4763.2011. Many other inverters being sold in Australia are not certified and virtually all would not pass without major upgrades or modifications.

Specifications

• Output power: 300W
• Surge power: 600W
• Display Method: LED Display
• Input Voltage: 12V DC
• Input Range: 10-15
• Low Voltage Protection: 10.0V ±0.3
• Over Voltage Protection: 15.0V±0.3
• Recovery Voltage: 13.2V±0.3
• No-load current: 0.35A
• Overload protection: 300W > 110%
• Output voltage: 230V AC
• Output frequency: 50Hz
• Output waveform: Pure sine wave
• Over heating protection: 80° ± 5°
• Waveform THD: =3%
• Conversion efficiency: 90%
• Cooling method: Fan cooling
• Dimensions: 183x110x60mm
• Product Weight: 1.0kg

*Specifications are subject to change without notice.
